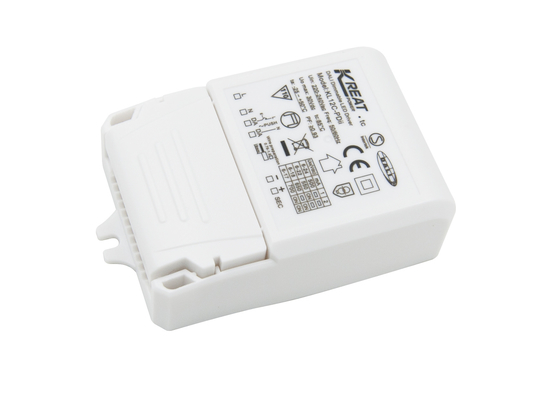

12W Constant Current Dali LED Dimmable LED Driver with Primary PUSH Dimming Control Method

  • 12W Constant Current Dali LED Dimmable LED Driver with Primary PUSH Dimming Control Method
Place of Origin Shenzhen, China
Brand Name KREATPOWER
Certification ENEC, CB, CE
Model Number KL12C-PDii
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Instruction+clapboard+outer carton（K=A）
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 4-5 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 20,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Voltage 198-264Vac 50Hz /60Hz Stand-by Power ≤0.5W（@230Vac When PUSH Or DALI Turn Off）
Operating Mode Constant Current Load Type LED
Control Method Primary PUSH Dimming, DALI Dimming Operating Temperature -25℃~50℃ Humidity:85% (Non-condensing)
IP Rating IP20 Warranty 5 Years Guarantee @Ta Full Load
High Light

12W Dali Dimmable LED Driver

,

Constant Current Dali Dimmable LED Driver

,

Dali Dimmable LED Driver
Leave a Message
Product Description

12W constant current Dali LED Dimmable LED Driver



【Product Feature】

  • Flicker-free for whole dimming range
  • Stand-by power below 0.5W
  • Primary dimming with push button
  • Built-in DALI interface DT6
  • Protection: short circuit / over temperature/ over voltage
  • Derating current for over high ambient temperature
  • Push dim with memory function
  • 5 year warranty



【Parameter】

Input Micro series KL12C-PDii
Operating Voltage 198-264Vac 50Hz /60Hz
Rated Input Voltage 220-240Vac 50Hz /60Hz
DC Input Voltage range 200-240Vdc
Input Current 0.08A Max.
Input Inrush Current <15A (Half current pulse width100μs) @230Vac
Power factor(@230V100% load) ≥ 0.93C
Total harmonic distortion Typical: 18% (@230Vac, 100% load)
Stand-by power ≤0.5W (@230Vac when PUSH or DALI turn off)
Efficiency(@230Vac,100% load) 83%
Wiring Method 0.75-1.5mm2

Automatic circuit breaker



 KL12C-PDii (Calculate current in the wire)
type C10 C13 C16 C20 C25
Number 70 80 105 130 160
type B10 B13 B16 B20 B25
Number 40 50 65 85 100
Output Operating mode Constant Current
Load type LED
Ripple requirement (Flickering or Flickering-Free) Flicker value: less than 2% for whole dimming range
Start up time <1s (@230Vac,)
No-load output voltage 30V DC Max.
Load output voltage range 3-24V DC
Full load output power 12W
Load output current

350mA(3-24)

500mA(3-24)

550mA(3-22)

700mA(3-17)
Constant current/voltage Precision Constant Current Precision ±5%
Wiring method Push terminal, wire cross section:0.75-1.5mm2
Control Method Primary PUSH Dimming Primary PUSH dimming (Max.lead length:20M)
DALI Dimming DALI dimming (Max.lead length:300M)
Exception Protection Requirements Output over temperature
protection		 Yes, without self recovery function(Can be inquired)
Output short circuit protection Yes, without self recovery function(Can be inquired)

Operating

Environment

 Operating temperature/ humidity -25℃~50℃ Humidity:85% (Non-condensing)
Storage temperature/ humidity -40℃~80℃, Humidity:10%–95%
Max. case temp(Tc) 85℃

Safety & EMC

 EMC standard EN55015 EN61547 EN61000-3-2 EN61000-3-3
DALI protocol standard IEC62386-102, IEC62386-207 DT6
Safety standard EN61347-1 EN61347-2-13
Certification ENEC CB CE
Withstand voltage 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”)
Others Degrees of protection IP20
Type of protection Class II
Installation type Independent installation
With crimping 88*52*25.5mm 116*40.5*22mm 136*42.5*24mm
Blackout memory function Yes, PUSH blackout memory
PUSH dimming synchronization 20 units Max.
Packaging requirement Instruction+clapboard+outer carton(K=A)
Weight 105g
Design life 10 years ( @ Ta - 15 ℃)
Warranty 5 years guarantee @Ta full load
Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified.


【Dimension (Unit:mm)】
12W Constant Current Dali LED Dimmable LED Driver with Primary PUSH Dimming Control Method 012W Constant Current Dali LED Dimmable LED Driver with Primary PUSH Dimming Control Method 112W Constant Current Dali LED Dimmable LED Driver with Primary PUSH Dimming Control Method 2



【Wiring Diagram】

Fig. A DALI Dimming

12W Constant Current Dali LED Dimmable LED Driver with Primary PUSH Dimming Control Method 3



Fig.B Push Dimming

12W Constant Current Dali LED Dimmable LED Driver with Primary PUSH Dimming Control Method 4



【Derating】

12W Constant Current Dali LED Dimmable LED Driver with Primary PUSH Dimming Control Method 5



【Dimming curve】

12W Constant Current Dali LED Dimmable LED Driver with Primary PUSH Dimming Control Method 6



【Current gear setting】

KL12C-PDii

Current gear setting

 1 2
350mA(3-40V) 12W Constant Current Dali LED Dimmable LED Driver with Primary PUSH Dimming Control Method 7 12W Constant Current Dali LED Dimmable LED Driver with Primary PUSH Dimming Control Method 8
500mA(3-40V) 12W Constant Current Dali LED Dimmable LED Driver with Primary PUSH Dimming Control Method 9 12W Constant Current Dali LED Dimmable LED Driver with Primary PUSH Dimming Control Method 10
550mA(3-38V) 12W Constant Current Dali LED Dimmable LED Driver with Primary PUSH Dimming Control Method 11 12W Constant Current Dali LED Dimmable LED Driver with Primary PUSH Dimming Control Method 12
700mA(3-36V) 12W Constant Current Dali LED Dimmable LED Driver with Primary PUSH Dimming Control Method 13 12W Constant Current Dali LED Dimmable LED Driver with Primary PUSH Dimming Control Method 14



【ON/OFF & Description of Dimming Operation】

A. Short press the PUSH switch (short press time 0.1S-1S), the LED driver will turn on or off.

B. Dimming: Press and hold the PUSH switch (1S-8S), the LED driver can achieve dimming, brightening or dimming, the dimming range is 2-100%.

C. Memory: PUSH dimming has dimming memory function.

D. Dimming synchronization: The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15S

E. DALI dimming mode: Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.



【Attention】

1) The LED string must be connected to the load before turning on the input power, otherwise the LED string may be damaged.

2) After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.
