| Place of Origin: | Shenzhen |
|---|---|
| Brand Name: | merrytek |
| Certification: | CE,UKCA |
| Model Number: | NC119S |
| Minimum Order Quantity: | 100 |
| Price: | Negotiation |
| Packaging Details: | Packed in bubble bag firstly, and then reinforced with carton for outer packing |
| Delivery Time: | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
| Operating Voltage Range: | 220-240Vac | Stand-by Power: | <0.1W |
|---|---|---|---|
| Surge Test: | 1KV(L/N，EN61000-4-5) | Working Mode: | On/off |
| Load Capacity: | 200w LEDs | Max Surge Capacity: | 20A (50% Ipeak, Twidth =500uS, 230Vac Full Load, Coldstart); 40A (50% Ipeak, Twidth =200uS, 230Vac, Full Load, Coldstart） |
| Operation Frequency: | 5.8GHz±75MHz | Transmitting Power: | 1mW Max |
| Hold Time: | 5S/30S/1min/3min/5min/10min/20min/30min | Detection Area: | 100%/75%/50%/25% |
| Daylight Threshold: | 2Lux/10Lux/25Lux/50Lux/Disable(Ambient Diffusion Status) | Detection Radius (100% Detection Area): | Ceiling Mounting At 3m Height: 0.3m/S ≥3.5m，1m/S≥2.5mWall Mounting At 2m Height: 0.3m/S ≥8m，1m/S ≥4m |
| Mounting Height: | Typical Value: 3m（4m Max) | Detecting Angle: | Ceiling Mount 150° |
| Operating Temperature: | -25℃~60℃ | TC: | 80℃ |
| IP Rating: | IP20 | Protection Class: | Class II |
| Installation: | Built-in | Dimension: | 61.0*29.0*23.0mm |
| Life Time: | 50,000hours @Ta 230V Full Load | ||
| High Light: | on/off function motion sensor,Mini motion sensor For Triproof Light,DIP switches Mini motion sensor |
||

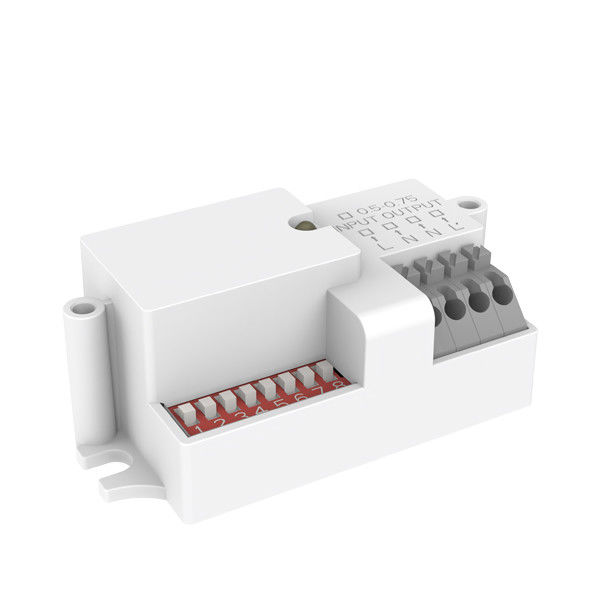

MC119S on/off function motion sensor mini size for wall lamp and tri-proof light for euro market
Features
1. Conform to new ERP standards; low stand-by power.
2. 5.8GHz microwave license-free ISM wave band; bulk order arecompliant with RED approval.
3. Compact size design, can be built-in most of light fixtures.
4. Simple to operate: adjusting DIP switches to change detectionarea, hold time, daylight sensor and other parameters.
5. Input and output terminals are convenient for connecting
Please download the spec.sheet:
Function
On/OFF Function
