IP20 Flush Mounted PIR Movement Sensor For Corridor With Max. 6m Mounting Height

  • IP20 Flush Mounted PIR Movement Sensor For Corridor With Max. 6m Mounting Height
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MSA221 IR
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details White box+ White box tags+ Clapboard+ Carton(K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage 100-240V AC Working Current 20mA MAX.
Stand-by Power ≤0.2W Function ON/OFF Function
Detecting Area (radius) ≥2.5m Mounting Height 2.5-6m
Installation Flush-mounted Cut Size Φ55mm
High Light

6m PIR movement Sensor

,

IP20 PIR movement Sensor

,

Flush Mounted PIR movement Sensor
Leave a Message
Product Description

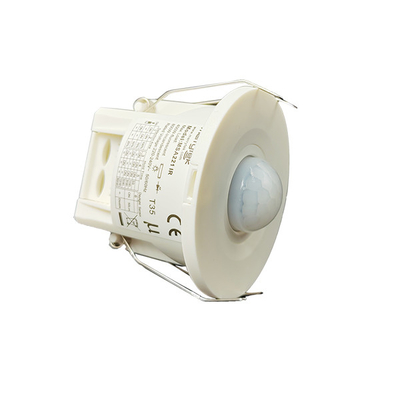

IP20 Flush Mounted PIR movement Sensor for the corridor with max. 6m mounting height





1. Features

1) PIR motion detection
2) Accurate ON/OFF output
3) Daylight sensor detection is available
4) Detection area, hold time, and daylight threshold can be set by remote/DIP switch
5) Max detection range: 5-8m in diameter
6) Max loading capacity:800w resistive loading and 400w inductive loading (LED)
7) Corridors, hallway, and toilet motion detection is highly recommended



2. Parameters

Input/Output Input voltage 100-240V AC
Rated voltage 220V AC
Working current 20mA max
Power consumption ≤0.2W @220V DC
Output signal ON/OFF
Load capacity 800w resistive loading or 400w inductive loading
Sensor parameter Function PIR motion detection+ daylight sensor
Detection Area DIP or remote setting: 100%/75%/50%/25%
Hold Time

DIP: 5s/1min/3min/5min/10min/30min

MH10remote: 5s/30s/1min/3min/5min/10min/20min/30min
Daylight Sensor

DIP: 50Lux/Disable

MH10remote: 5Lux/15Lux/30Lux/50Lux/

100Lux/150Lux/Disable
Radius detection range(based on 100% sensitivity) 2.5-4m based on 3m mounting height
Remote control Available
Mounting height 2.5-4m typical value:3m
Application environment Drill hole Φ55mm
Working temperature 0℃...+35℃
Storage temperature -40℃~+80℃
Certificate Standard Certificate Compliant to CE
Environmental requirements Compliant to RoHS
IP rating IP20
“N/A” means not available

3. Dimension

IP20 Flush Mounted PIR Movement Sensor For Corridor With Max. 6m Mounting Height 0IP20 Flush Mounted PIR Movement Sensor For Corridor With Max. 6m Mounting Height 1

4. Wiring Diagram

IP20 Flush Mounted PIR Movement Sensor For Corridor With Max. 6m Mounting Height 2

5. Start Process & Initialization

When powered on, the sensor indicator will turn off after flashing for 10S and will not detect a moving signal during this time. After 10S, you can use our MH10 remote or dip switch to adjust the detection area, hold time, and daylight sensor.



6. Factory Settings

Detection Area: 100% Hold Time: 5s Daylight Sensor: Disable



7. Detection radiation

IP20 Flush Mounted PIR Movement Sensor For Corridor With Max. 6m Mounting Height 3

8. DIP Settings



Detection Area

  1 2
100% ON ON
75% - ON
50% ON -
25% - -



      Hold Time

  3 4 5
Ⅰ ON ON ON 5S
Ⅱ - ON ON 1min
Ⅲ ON - ON 3min
Ⅳ - - ON 5min
Ⅴ ON ON - 10min
Ⅵ - - - 30min

      Daylight Sensor

  6
Ⅰ ON 50Lux
Ⅱ - Disable



       **Once daylight sensor set as Disable,our motion sensor will detect human movement regardless of environment lux



10. Remote Control

IP20 Flush Mounted PIR Movement Sensor For Corridor With Max. 6m Mounting Height 4
