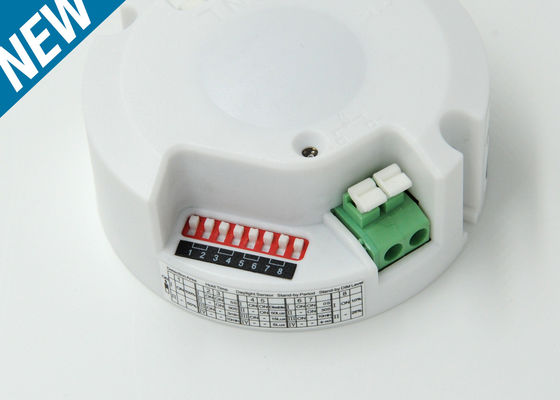

MLC18C - P3 18W Integrated Sensor LED Driver For LED Ceiling Light , ON - OFF / Dimming

  • MLC18C - P3 18W Integrated Sensor LED Driver For LED Ceiling Light , ON - OFF / Dimming
  • MLC18C - P3 18W Integrated Sensor LED Driver For LED Ceiling Light , ON - OFF / Dimming
  • MLC18C - P3 18W Integrated Sensor LED Driver For LED Ceiling Light , ON - OFF / Dimming
Place of Origin China
Brand Name Merrytek
Certification CE/ TUV
Model Number MLC18C-P3
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or Western Union or PayPal
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 18W Integrated Sensor LED Driver Output Load 1 X 18W Max.
Output Constant Current 350mA Output Voltage 60Vdc Max.
Stand-by Power ≤0.5W Dimming Level 10%/ 25%
Working Temperature -25℃-50℃ Isolation Class Class Ⅱ
Approvals CE/ TUV Protection Class IP20
High Light

high efficiency led driver

,

LED Panel Light Driver

,

LED Ceiling Light Sensor Driver
Leave a Message
Product Description



MLC18C - P3 18W integrated sensor LED driver for LED ceiling light , ON - OFF / Dimming



1, Stand-by power ≤0.5W.

2, Support mounting height up to 6m Max.

3, Stand-by dimming level is optional, 10%/ 25%.

4, Working mode: Auto switch on/off or dimming by motion and ambient light level.

5, Compact size makes the drivers easy to be installed in luminaries and get more simple lighting structure.

6, Detection area, time delay, daylight threshold, stand-by dimming time and stand-by dimming level can be set via DIP switch.

7, Sensor DIM LED drivers, originally pioneered by Merrytek, are innovative products integrated with HF motion detector, daylight sensor and LED power supply.



Specifications







INPUT



 Input voltage 220-240Vac
Input frequency 50-60Hz
Input current 0.12A max
Power factor ≥0.90
Efficiency ≥84%
Stand-by Power ≤0.5W





OUTPUT



 Output current 350mA
Output voltage 28Vdc – 52Vdc
Current accuracy ±5%
Output Power 18.2W Max.











DETECTOR

 HF system 5.8Ghz±75Mhz, ISM wave band
Transmitting power ＜0.5mW
Detection range 4m (@ 3m mounting height)
Detection area 50%/ 100%
Hold time 5s/ 90s/ 3min/ 10min
Daylight sensor 5lux/ 15lux/ 50lux/ Disable
Stand-by period 0s/ 30s/ 10min/ +∞
Stand-by DIM level 10%/ 25%
Mounting height 6m Max.
Motion detection 0.5~3m/s
Detection angle

150° (Wall installation)

360° (Ceiling installation)





ENVIRONMENT



 Working temp.(Ta) -20~50℃
Surface temp.(Tc) 85℃max
Working humidity 20~85%RH non-condensing
Storage temp. -35~80℃
Life time ≥30000hours



PROTECTION



 Isolation class ClassⅡ
Protection class IP20



Mechanical Specification:



MLC18C - P3 18W Integrated Sensor LED Driver For LED Ceiling Light , ON - OFF / Dimming 0







Wring Diagram:



MLC18C - P3 18W Integrated Sensor LED Driver For LED Ceiling Light , ON - OFF / Dimming 1







Detection Pattern:



MLC18C - P3 18W Integrated Sensor LED Driver For LED Ceiling Light , ON - OFF / Dimming 2





Function:





MLC18C - P3 18W Integrated Sensor LED Driver For LED Ceiling Light , ON - OFF / Dimming 3



Download:



MLC28C-PE,, MLC16C-PE and MLC18C-P3.pdf
