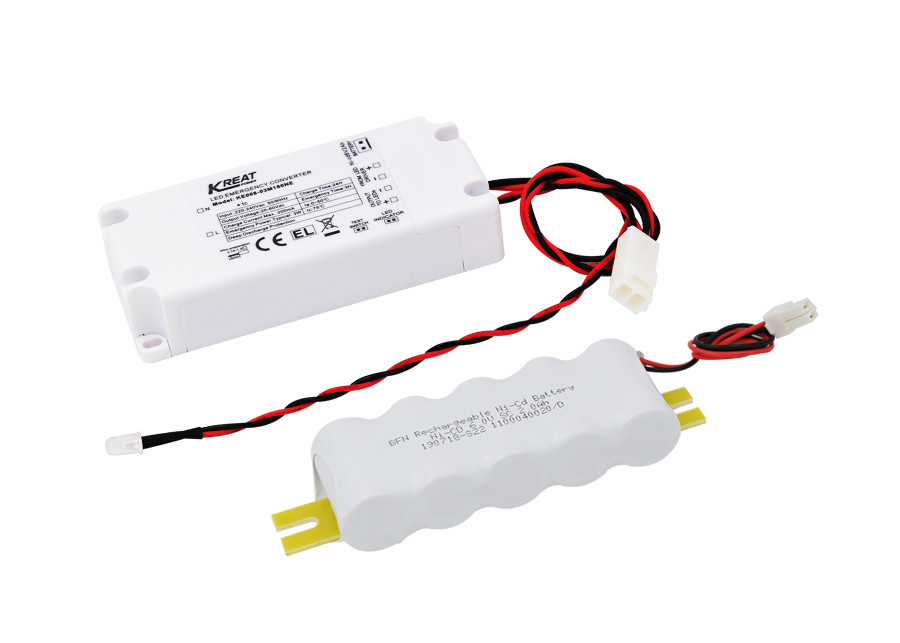

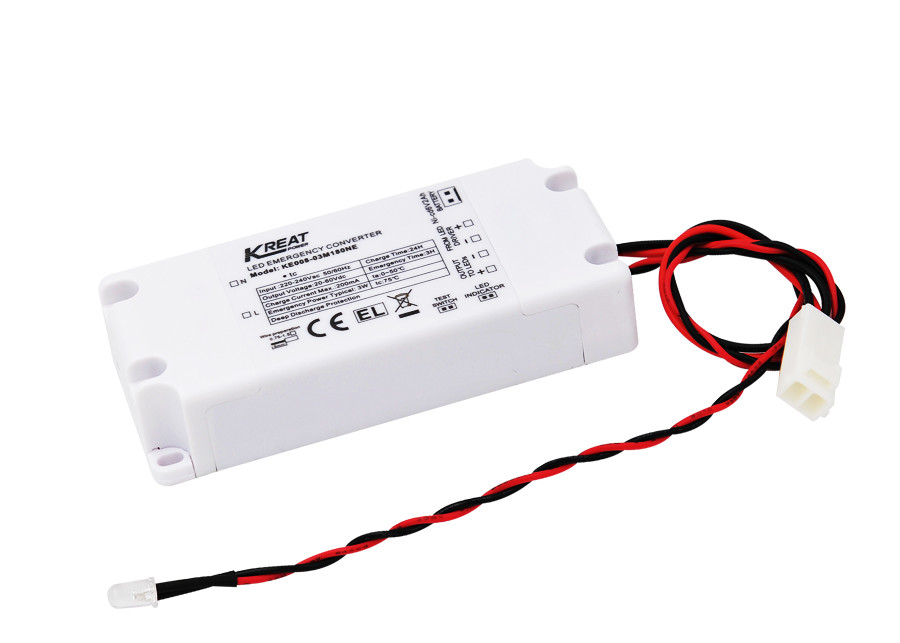

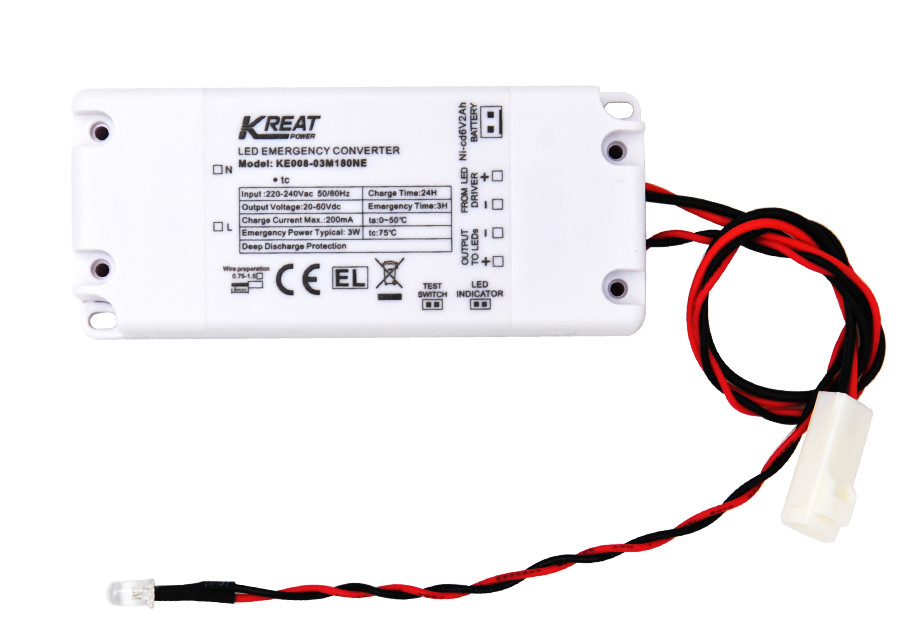

LED Emergency Driver Power 3W Emergency Time 3h & External NiCd Battery KE008-03M180NE

Place of Origin China
Brand Name Kreat Power
Certification CE
Model Number KE008-03M180NE
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details Packed in bubble bags firstly, amd then reinforced with carton for outer packing
Delivery Time within 5 working days for sample and small order; within 3-4 weeks for bulk order
Payment Terms T/T, Western Union
Supply Ability 10,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Emergency Power 3W Emergency Time 3 Hours
Battery NI-Cd:6V 1500mAh Load Output Voltage 20-72Vdc
Highlight

dimmable led driver

,

led emergency backup driver

,

LED Emergency Driver 3W

Leave a Message
Product Description

LED Emergency Driver Power 3W Emergency Time 3h & External NiCd Battery KE008-03M180NE





1. Features



--Constant power output LED emergency power supply.



--Multiple protection function: battery over charge , deep discharge, output overload and short-circuit.





2. Dimension (Unit:mm)



LED Emergency Driver Power 3W Emergency Time 3h & External NiCd Battery KE008-03M180NE 0





4. Wiring Diagram



External drive mode:

LED Emergency Driver Power 3W Emergency Time 3h & External NiCd Battery KE008-03M180NE 1



5. Function

LED Emergency Driver Power 3W Emergency Time 3h & External NiCd Battery KE008-03M180NE 2





6. Wire Preparation

LED Emergency Driver Power 3W Emergency Time 3h & External NiCd Battery KE008-03M180NE 3



1) Solid or Stranded wire type 0.75 - 1.5mm2



2) To make or release the wire from the terminal, use a screwdriver to push down the button.





7. Battery Application Notice

1) The battery should be recharged and discharged semiannually in normal use conditions.

2) Do not connect to the circuit when the battery is not use to prevent over-discharge of the battery due to self-consumption of the circuit board.

3) Please keep the battery from the heat source when installing and using, and only be allowed to use in certain working temperature range.

4) The battery should be stored in a cool and dry environment.

5) After long time storage, the battery is cycled every 6 months as required.
