Product Details
Rated Input Voltage 220-240Vac 50Hz /60Hz Emergency Power 3W(Can Be Customized)
Emergency Time 180min (Can Be Customized) Warranty 5 Years
Load Output Voltage 10-60Vdc Working Temprature 0℃~50℃
IP Rating IP20 Battery Type LifePO4 6.4V 1800mAh
Highlight

3W LED emergency driver

,

self test emergency pack

,

5 year warranty emergency driver
Leave a Message
Product Description

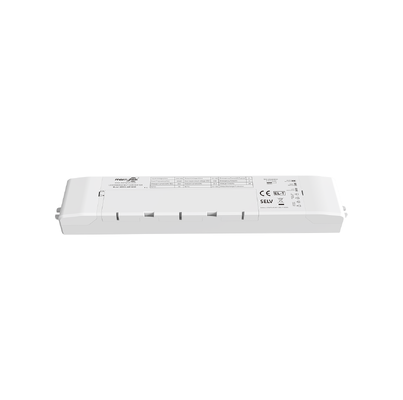

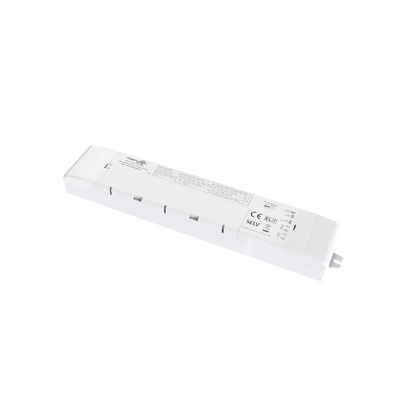

3W Standard and Self Test Emergency Packs with 3 Hours Duration and 5 Years Warranty
Product Overview

Constant power output LED emergency power supply with comprehensive safety features and long-lasting LiFePO4 battery technology.

  • Wide output voltage range for versatile applications
  • Input relay switching for reliable operation
  • High safety, high performance LiFePO4 battery with extended lifespan
  • Integrated battery management system
  • Available in standard and self-test emergency pack configurations
Technical Specifications
Charge Parameters
Model No. KE036-03AM180HB
Rated input voltage 220-240Vac 50Hz/60Hz
Rated input current 0.06A Max. @230Vac
Input inrush current 10A(Twidth=100us 50% Ipeak) @230Vac (Cold start at full load)
Power factor ≥0.5@230Vac
Input power <4W@230Vac
Battery charging current 250mA Max.
Battery charging time 24 hours Max.
Emergency Parameters
Operating mode Emergency mode
Load type LED
Emergency power 2.5W
Emergency time 3 hours
Load output current 250-40mA
Load output voltage 10-60Vdc
Battery LiFePO4 6.4V 1.8Ah (capacity meets emergency time at 25℃)
Battery warranty 5 years @25℃
Driver Requirements
Surge current 8A
Input current 3A Max.
Output current 2A Max.
LED Indication & Auto Testing
Status/Condition Reason Indicator Status
Battery fully charged and operational Standard daily use Solid green
Battery Charging Initial Charge/Battery Top Up Flashing green 1 sec on 1 sec off
Auto Test 3 Hours (every 12 months) Periodic self-test Flashing Green 3 sec on 1 sec off
Auto Test 5 Min (every 30 days) Periodic self-test Flashing Green 3 sec on 3 sec off
Duration test fault Automatic test failed Flashing Red 0.5 sec on 0.5 sec off
LED fault Not plugged in or damaged/faulty Flashing Red 2 sec on - 2 sec off
Battery Disconnected/Faulty Not plugged in or damaged/faulty Solid red
Protection Features
Battery over-charge/deep discharge protection Yes
Output over-voltage protection Yes
Output overload protection Yes
Output short circuit protection Yes
Operating Environment
Operating temperature/humidity 0℃…+50℃, humidity:20%-75% (without condensation)
Storage temperature/humidity -5℃-35℃
Case Max. Temp (Tc) 75℃
Safety & Compliance
Withstand voltage 3000Vac 5mA 60s (Input "L N" - output "SEC+ SEC-")
Safety standard EN61347-1, 60598-2-22, 61347-2-7, 62034
EMC standard EN55015, EN61000-3-2, EN61000-3-3
Battery standard UN38.3
Environmental protection Compliant with RoHS
Certification CE
Physical Specifications
Input terminal/wiring specification Press terminal, wire diameter: 0.75- 2.5mm²
Output terminal/wiring specification Press terminal, wire diameter: 0.75- 1.5mm²
IP rating IP20
Type of protection Class II
Installation type Independent installation
Installation dimension 232×45×25mm
Packaging requirement White box + Instruction manual + clapboard + outer carton (K=A)
Weight 208±5g
Lifespan 5 Year @Ta

All parameters are tested on the input voltage 230VAC, environment temperature 25℃, unless otherwise specified.

Product Dimensions
3W Standard and Self Test emergency packs with 3 hours duration and 5 years warranty 0
Wiring Diagrams
3W Standard and Self Test emergency packs with 3 hours duration and 5 years warranty 1
Fig A: Connection with LED driver and LED module
3W Standard and Self Test emergency packs with 3 hours duration and 5 years warranty 2
Fig B: Direct connection with LED module
3W Standard and Self Test emergency packs with 3 hours duration and 5 years warranty 3
Fig C: Loop in & out configuration with LED module
3W Standard and Self Test emergency packs with 3 hours duration and 5 years warranty 4
Fig D: Alternative connection with LED driver and LED module
Test Mode Configuration
Test Mode J1 Setting
Automatic Test 3W Standard and Self Test emergency packs with 3 hours duration and 5 years warranty 5
Manual Test 3W Standard and Self Test emergency packs with 3 hours duration and 5 years warranty 6
Manual Test Operation Instructions
  1. Before installation, set Pin short: Manual Test
  2. Connect the wire according to the wiring diagram
  3. L, N power on, Switch on S1. Then the load lamp turns on, the emergency driver indicator light turns green, emergency power supply is normal charging. Turn off Switch S1; the load lamp turns off
  4. Emergency Simulation: Switch on, the load lamp turns on, press the switch (TEST SWITCH), then switch to emergency mode, the indicator light of the emergency driver will be extinguished. Release the switch (TEST SWITCH), then the lamp is powered by LED driver, the indicator light will turn on
Automatic Test Operation Instructions
  1. Before installation, set Pin open: Automatic Test
  2. Connect the wire according to the wiring diagram. Remove the test switch on the LED Emergency Driver
  3. L, N power on, start the clock, and periodic self-test. To replace the battery, turn off the power supply, and re-time
Battery Application Notice
  1. The battery should be recharged and discharged semiannually in normal use conditions
  2. Do not connect to the circuit when the battery is not in use to prevent over-discharge of the battery due to self-consumption of the circuit board
  3. Please keep the battery away from the heat source when installing and using, and only be allowed to be used in a certain working temperature range
  4. The battery should be stored in a cool and dry environment
  5. After long-term storage, the battery is cycled every 6 months as required
  6. AC power is off, and the clock lasts for 7 days. Power on and re-time. To replace the battery, turn off the power supply, and re-time
