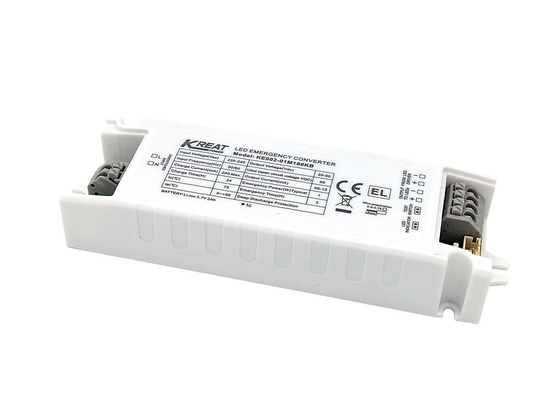

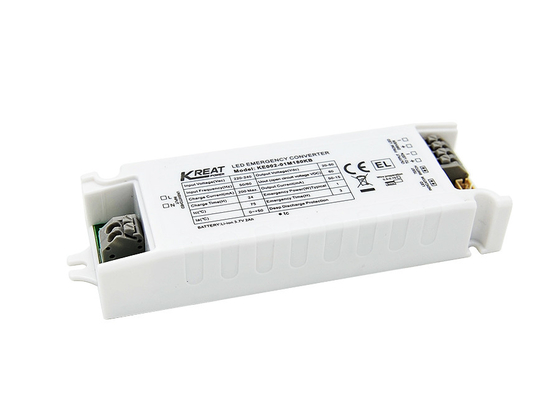

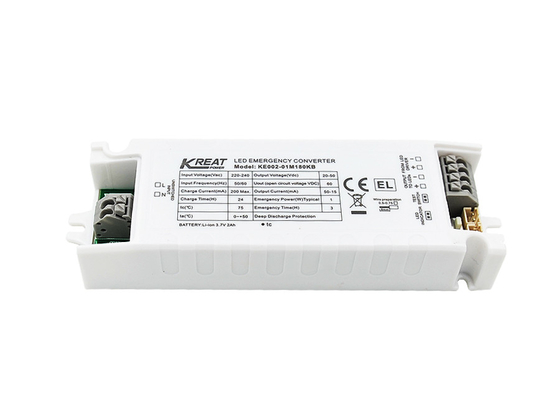

LED Emergency Driver Power 1W Emergency Time 3h & Built-in Li-ion Battery KE002-01M180KB

Place of Origin China
Brand Name Kreat Power
Certification CE
Model Number KE002-01M180KB
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details Packed in bubble bags firstly, amd then reinforced with carton for outer packing
Delivery Time within 5 working days for sample and small order; within 3-4 weeks for bulk order
Payment Terms T/T, Western Union
Supply Ability 10,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Emergency Power 1W Emergency Time 3 Hours
Load Output Current 175-25mA Load Output Voltage 6-50Vdc
High Light

dimmable led driver

,

led emergency backup driver

,

LED emergency power supply 1W

Leave a Message
Product Description

LED Emergency Driver Power 1W Emergency Time 3h & Built-in Li-ion Battery KE002-01M180KB



1. Parameters



Charge Part Rated input voltage 220-240Vac 50Hz /60Hz
Rated input current 0.05A Max. @230Vac
Input inrush current 30A(twidth=100uS 50% Ipeak )@230Vac(Cold start at full load )
Power factor ≥0.5@230Vac
Input power <3W
Battery charging current 150mA MAx
Battery charging time 24 hours MAx
Emergency Part Operating mode Emergency mode
Load type LED
Emergency power 1W
Emergency time 3 hours
Load output current 175-25mA
Load output voltage 6-50VDC
Battery Type Li-ion:3.7V 2000mAh
Exception Driver Requirements Surge current N/A
Input current N/A
Output current 1 A Max.
LED Indication Charging Green light
Fault Green light off
Emergency Function Test Manual test Yes
Auto test N/A
Connect Control Bluetooth N/A
DALI N/A
Abnormal protection Battery over-charge/deep discharge protection Yes
Output over-voltage protection Yes
Output overload protection Yes
Output short circuit protection Yes

Operating

Environment

Operating temperature/humidity 0℃~50℃ humidity:20%-75%(without condensation)
Storage temperature/humidity -5℃-35℃
Case Max. Temp(Tc) 75℃

Safety

& EMC



Withstand voltage 3000Vac 5mA 60S (Input “L N” – output “SEC+ SEC-)
Safety standard EN61347-1, EN61347-2-7
EMC standard EN55015, EN61000-3-2, EN61000-3-3
Battery standard EN61233
Environmental protection requirements Compliant to RoHS
Certification CE
Others Input/output(terminal/wiring) specification Press terminal, wire diameter:0.5-0.75mm2
IP rating IP20
Type of protection Class 2
Installation type Built-in installation
Installation dimension 122*42*22mm
Packaging requirement White box+Instruction manual+clapboard+outer carton(K=A)
Weight 68g(driver),110g(battery)
Lifespan Emergency driver 30000h @Ta full load(driver not included)

Notes:
All parameters are tested on the input voltage 230Vac,environment temperature 25℃,unless otherwise specified.



2. Dimension (Unit:mm)



LED Emergency Driver Power 1W Emergency Time 3h & Built-in Li-ion Battery KE002-01M180KB 0
3. Wiring Diagram
LED Emergency Driver Power 1W Emergency Time 3h & Built-in Li-ion Battery KE002-01M180KB 1

4. Function
LED Emergency Driver Power 1W Emergency Time 3h & Built-in Li-ion Battery KE002-01M180KB 2

5. Wire Preparation

LED Emergency Driver Power 1W Emergency Time 3h & Built-in Li-ion Battery KE002-01M180KB 3

1)Solid or Stranded wire type 0.5 - 0.75mm2
2)To make or release the wire from the terminal, use a screwdriver to push down the button.


6. Manual Test & Operation Instructions
1) Connect the wire according to wiring diagram.
2) L,N power on, Switch on S1. then the load lamp turns on, the emergency driver indicator light will turns green, emergency power supply normal charging. Turn off Switch S1, the load lamp turns off.
3) Emergency Simulation: Switch on,the load lamp turns on, press the switch(TEST SWITCH), then switch to emergency mode, the indicator light of emergency driver will be extinguished. Release the switch(TEST SWITCH), then lamp is powered by led driver, the indicator light will turn on.
