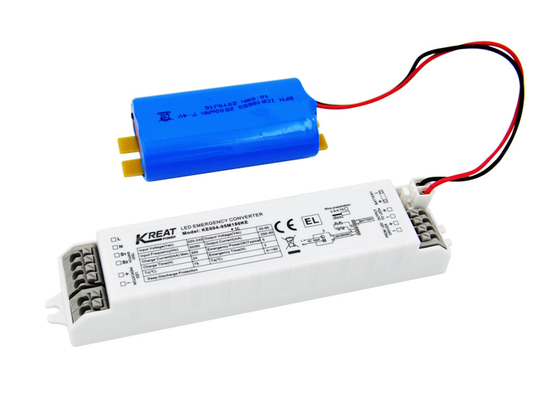

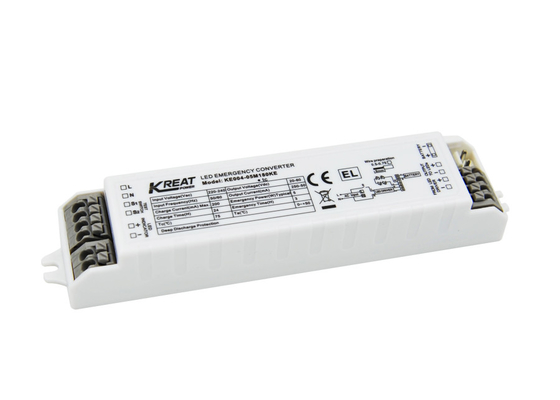

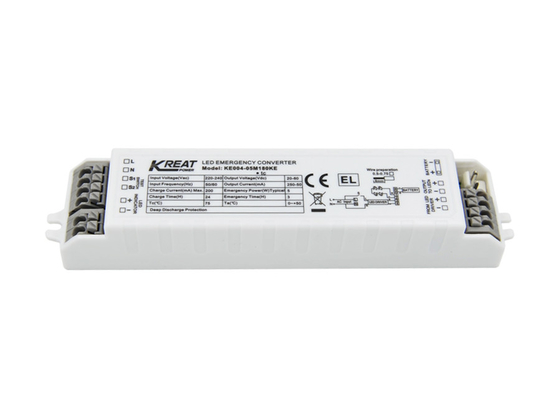

LED Emergency Driver Power 5W Emergency Time 3h & Built-in Li-ion Battery KE004-05M180KE
| Place of Origin | China |
|---|---|
| Brand Name | Kreat Power |
| Certification | CE |
| Model Number | KE004-05M180KE |
| Minimum Order Quantity | 100pcs |
| Price | Negotiation |
| Packaging Details | Packed in bubble bags firstly, amd then reinforced with carton for outer packing |
| Delivery Time | within 5 working days for sample and small order; within 3-4 weeks for bulk order |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10,000pcs per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Emergency Power | 5W | Emergency Time | 3 Hours |
|---|---|---|---|
| Load Output Voltage | 20-60VDC | Battery | Li-ion：7.4V 2500mAh |
| High Light | dimmable led driver,led emergency backup driver,5W LED Emergency Driver |
||
Product Description
LED Emergency Driver Power 5W Emergency Time 3h & Built-in Li-ion Battery KE004-05M180KE
1. Features
--Constant power output LED emergency power supply, 5W emergency power, and a wide output voltage range.
--With multiple protection functions: battery overcharge, over discharge protection, output short circuit protection.
2. Parameters
| Charge Part | Rated input voltage | 220-240Vac 50Hz /60Hz |
| Rated input current | 0.06A Max.@230Vac | |
| Battery charging current | 200mA | |
| Battery charging time | 24 hours | |
| Emergency Part | Operating mode | Emergency |
| Load type | LED | |
| Emergency power | 5W | |
| Emergency time | 3 hours | |
| Load output voltage | 20-60VDC | |
| Battery | Type | Li-ion:7.4V 2500mAh |
| Exception Driver Requirements | Input current | N/A |
| Output current | 1A MAX | |
| LED Indication | Charging | The green light turns on |
| Fault | The green light switches off | |
| Emergency Function Test | Manual test | Yes |
| Abnormal protection | Battery over-charge/deep discharge protection | Yes |
| Output overload protection | Yes | |
| Output short circuit protection | Yes | |
|
Operating Environment |
Operating temperature/humidity | 0℃~65℃ |
| Storage temperature/humidity | -5℃~35℃ humidity:20%-60%(without condensation) | |
| Case Max. Temp(Tc) | 75℃ | |
| Withstand voltage | 3750Vac 5mA 60S(Input “L N” – output “SEC+ SEC-) | |
|
Safety
& EMC
|
Electromagnetic Compatibility | EN55015, EN61547,EN61000 |
| EMC standard | EN61347-2-7, EN61347-2-13 | |
| Certification requirements | CE, RoHS | |
| IP rating | IP20 | |
| Others | Type of protection | Class 2 |
| Input/output(terminal/wiring) specification | Press terminal, wire diameter:0.5-0.75mm2 | |
| Installation type | Built-in installation | |
| Installation dimension | 146*30*22.5mm | |
| Packaging requirement | White box+Instruction manual+clapboard+outer carton(K=A) | |
| Weight | 68.8g(driver),111g(battery) | |
| Lifespan | Emergency driver 30000h @Ta full load(driver not included) | |
|
Notes: All parameters are tested on the input voltage 230Vac,environment temperature 25℃,unless otherwise specified. |
||
3. Dimension (Unit:mm)
4. Wiring Diagram
5. Wire Preparation
1)Solid or Stranded wire type 0.5 - 0.75mm2
2)To make or release the wire from the terminal, use a screwdriver to push down the button.
6. Battery type / size
7. Manual Test & Operation Instructions
1) Connect the wire according to wiring diagram.
2) L,N power on, Switch on S1. then the load lamp turns on,The emergency driver indicator light will turns green, emergency power supply normal charging. Turn off Switch S1, the load lamp turns off.
3) Emergency Simulation: Switch on,the load lamp turns on, press the switch(TEST SWITCH), then switch to emergency mode, the indicator light of emergency driver will be extinguished. Release the switch(TEST SWITCH), then lamp is powered by led driver, the indicator light will turn on.
4) Power off and power on, the phenomenon should be similar to emergency simulation.
