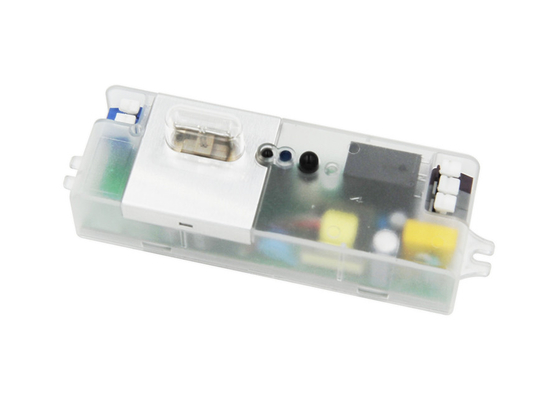

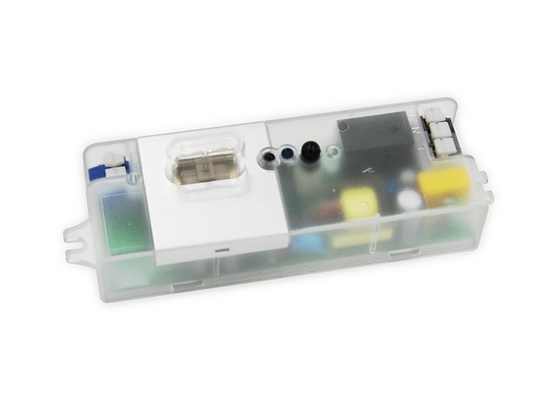

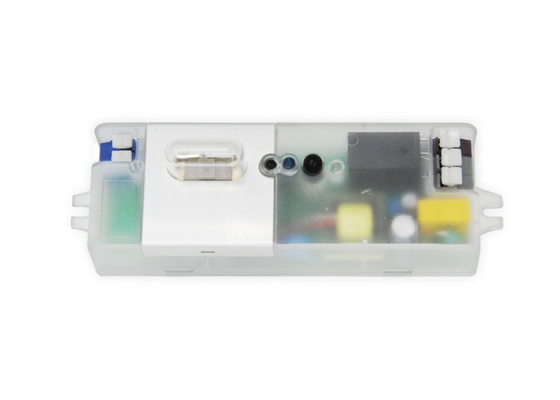

0.5mW 5.8GHz Car Parking Motion Sensor MC087V RC

Car Parking Motion Sensor with Remote Control and No Blind Detection Area MC087V RC

1. Features

• Newly designed patent needle, overcome the shortage of traditional needle antenna, no blind detection area
• Stable performance when mount in metal roof warehouse
• Slim cut-hole size, fit for tri-proof light, batten, troffer
• All parameters can be set by remote control
• Override function
• 5 years warranty

2. Parameters

3.Function

1) On/OFF Function (stand-by period be set to “0”s)

2) 2-step dimming function (stand-by period be set to “+∞”)

3) 3-step dimming function (stand-by period be set to “10S/1min/3min/5min/10min/30min”)


4.Dimension (mm)



5.Wiring

*The sensor is designed for connect one load only. Connect more than one loads may damage the sensor.

6. Structure and installation

7. Installation directive

1) Sensor antenna must be out of LED plate

8. Radiation pattern

1) Ceiling mounting

2) Wall mounting

9. Remote control

10. Initialization

1.  On/Off function /3-step dimming function:

After power on, the sensor automatically turns on light at 100% brightness. After 10sec, it turns off the light. During the initialization, the sensor is not able to detect movement.

2. 2-step dimming function:

After power on, the sensor automatically turns on light at 100% brightness. After 10sec, it dims the light to a low light level (set by stand-by dim level). During the initialization, the sensor is not able to detect movement.

11. Factory Setting

Detection area: 100%, Hold Time: 5S, Stand-by Period: 0S, Stand-by dim level: Disable, Daylight Sensor: HS

12. Cancel the sensor function

Continuously turn off/on the power supply for three times in 2s to cancel the sensor function, and the light stays on. Turn the power off/on again and the sensor returns to the sensor mode.

13. Application Notice

1) The product dimming function needs to be equipped with an 1-10V dimming LED driver.

2) The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switch.

3) The sensor mounted in a plastic, glass lampshade would reduce the sensitivity of the sensor. For every 3 mm increase in thickness, the sensitivity would reduce by 20%.

4) The sensing distance will be affected by the height of the sensor installation, the size of the object being detected, and the speed of movement.

5) Daylight the value is in a sunny environment with no shadows and ambient light diffuse reflection conditions. The values illuminantion detected by sensor may vary in different environment, at different times, in different seasons, and in different climates.

6) The parameters of the sensor may need to be reconfigured in different installation environments. Please refer to the following instructions or contact the manufacturer.

7) This sensor is for indoor use only. Outdoor use will affect the waterproof effect, wind and moving objects around would cause false triggering.

8) The distance between any inductive sensors should be greater than 3m.

9) When the sensor is installed in a metal illuminance , a metal reflective surface, or a narrow enclosed environment, the microwave will be reflected repeatedly and cause false triggering. Please reduce the sensitivity or contact the manufacturer for technical support.

10) Do not place the sensor close to high-density objects such as metal, glass, mixed-use walls, etc. The sensor may be triggered by mistake.

11) Please ensure that there are no moving signals around the sensor, such as fan, DC motor, sewer, air outlet, etc., the sensor may generate false triggers.
