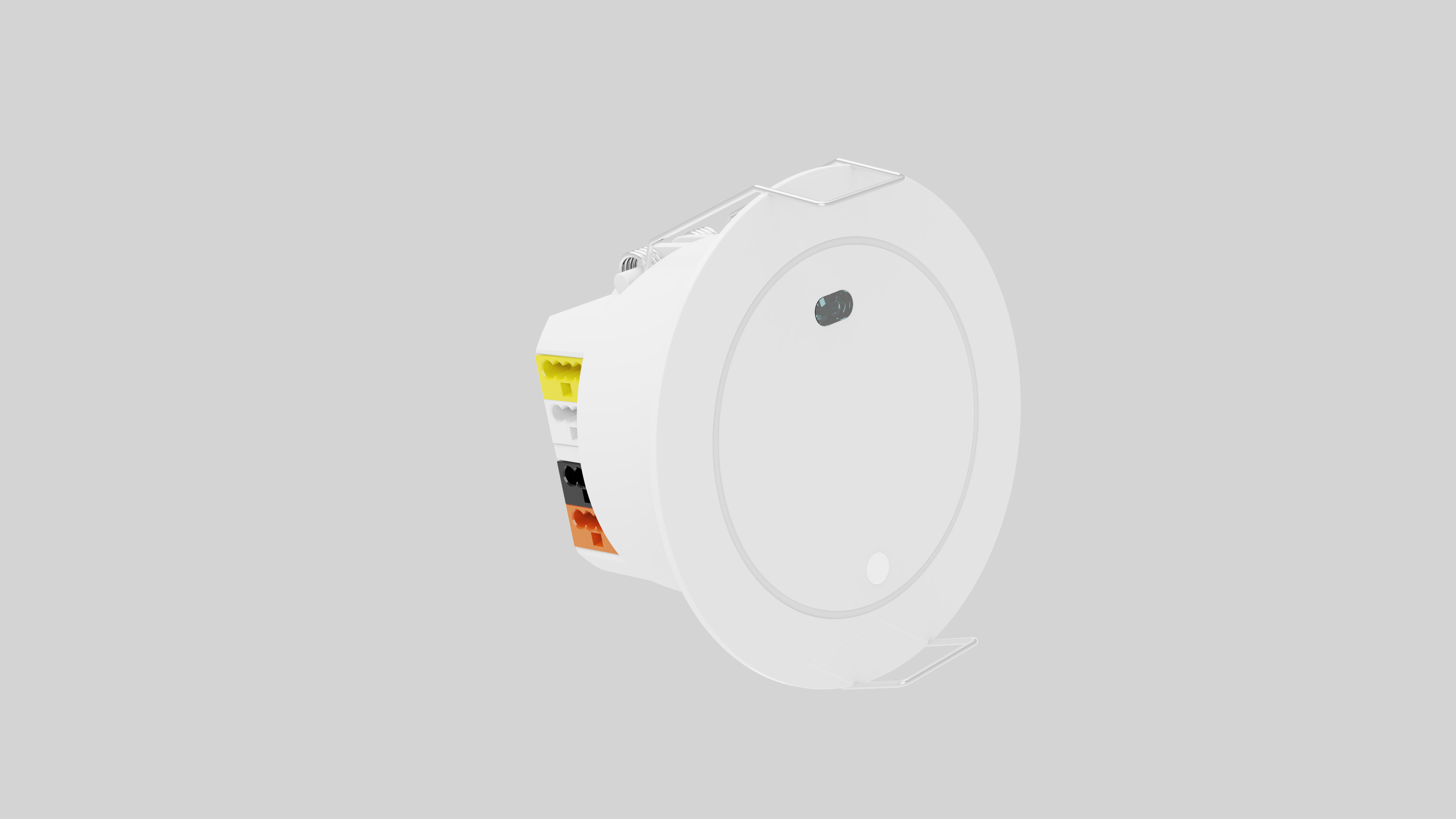

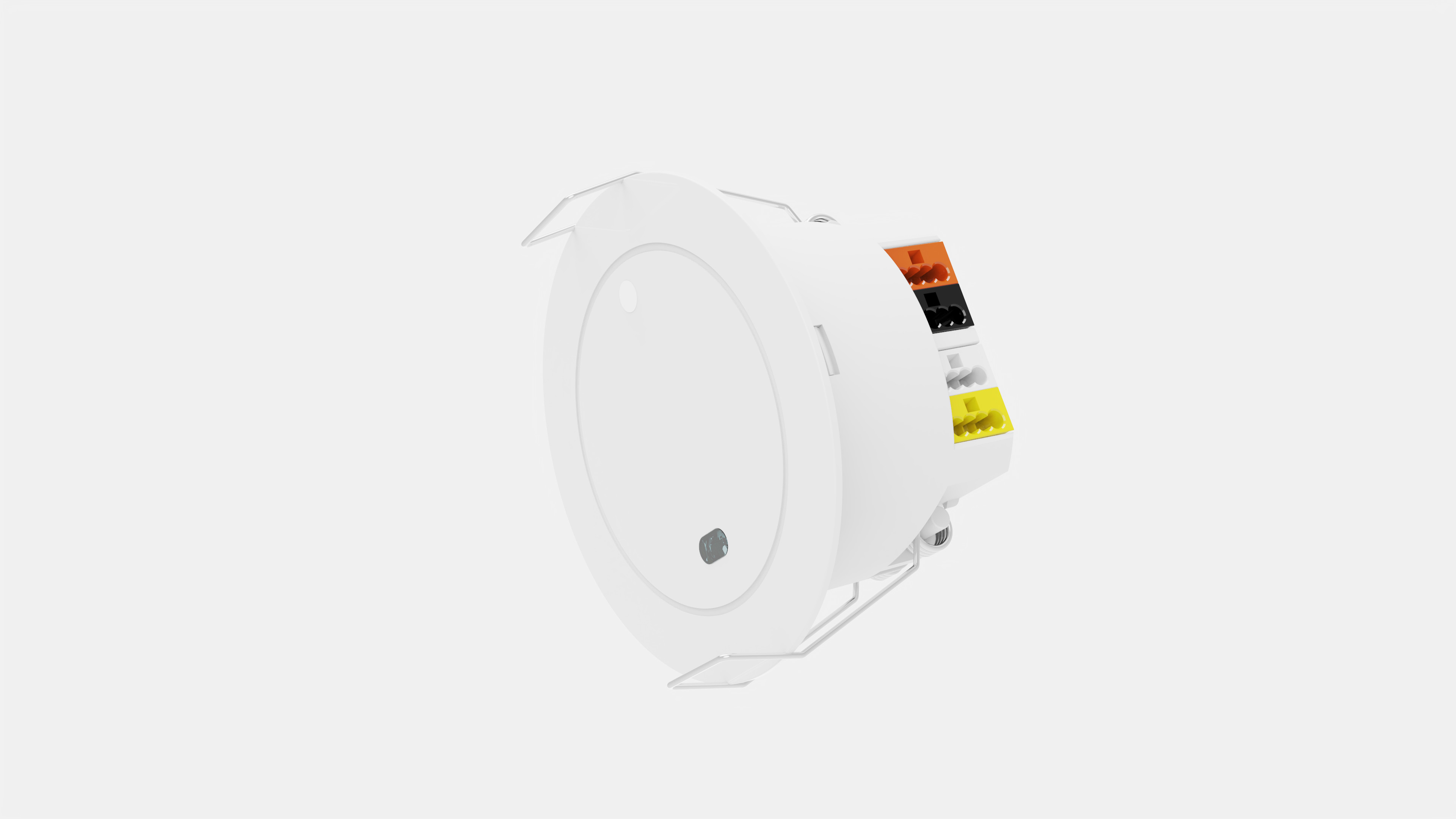

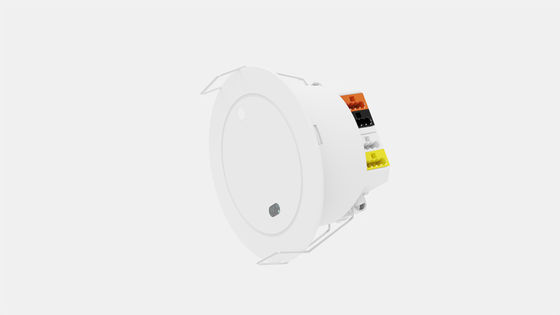

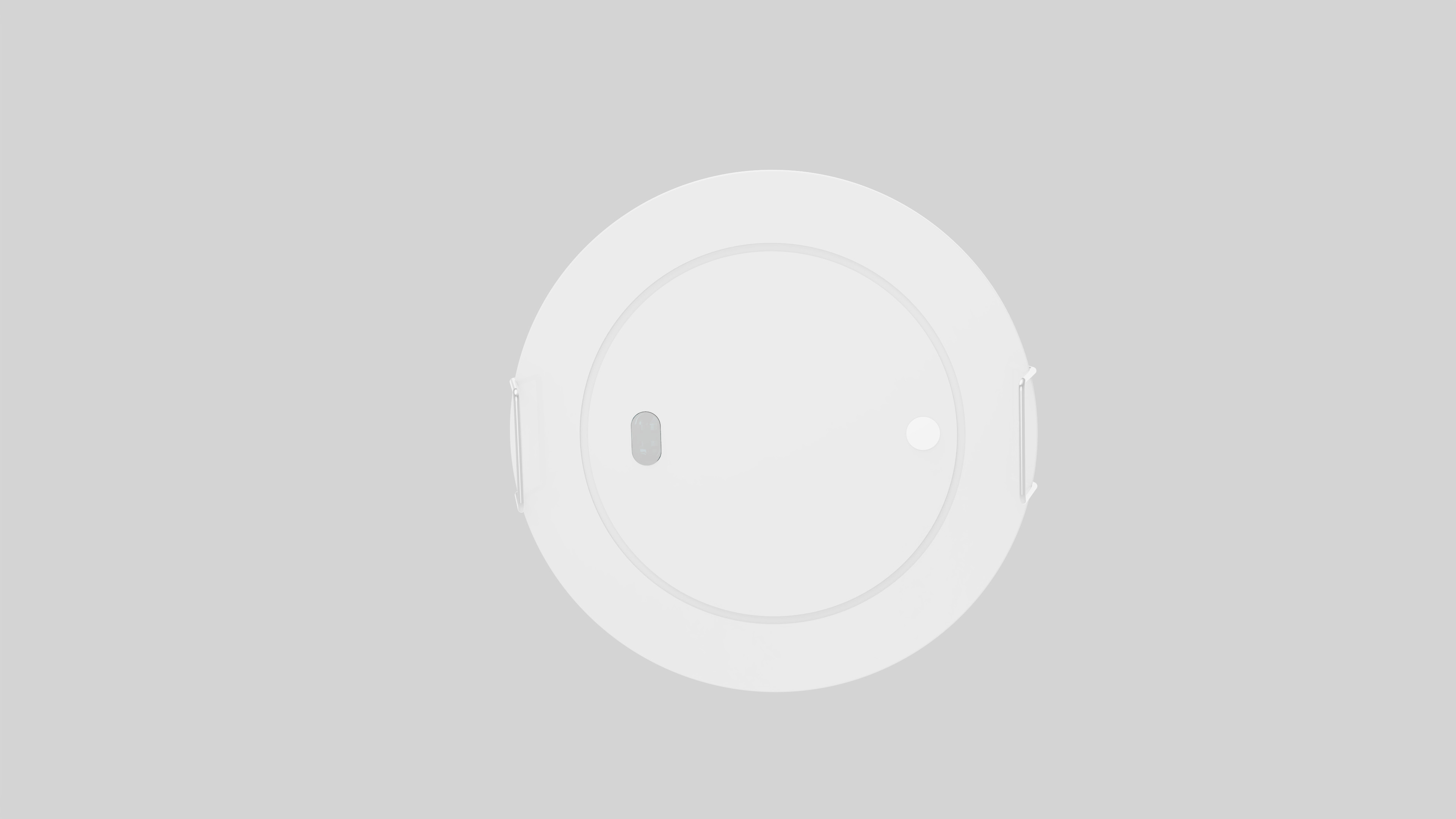

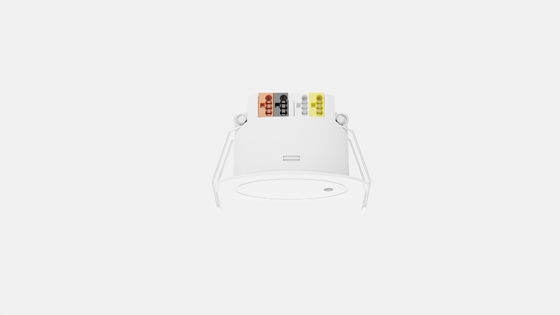

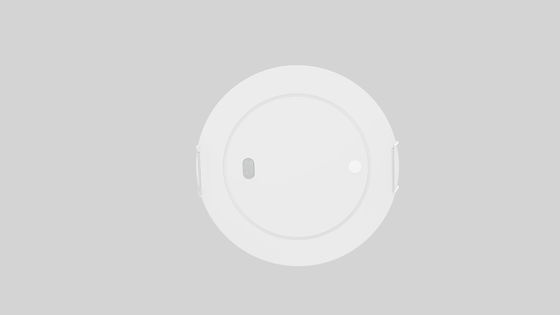

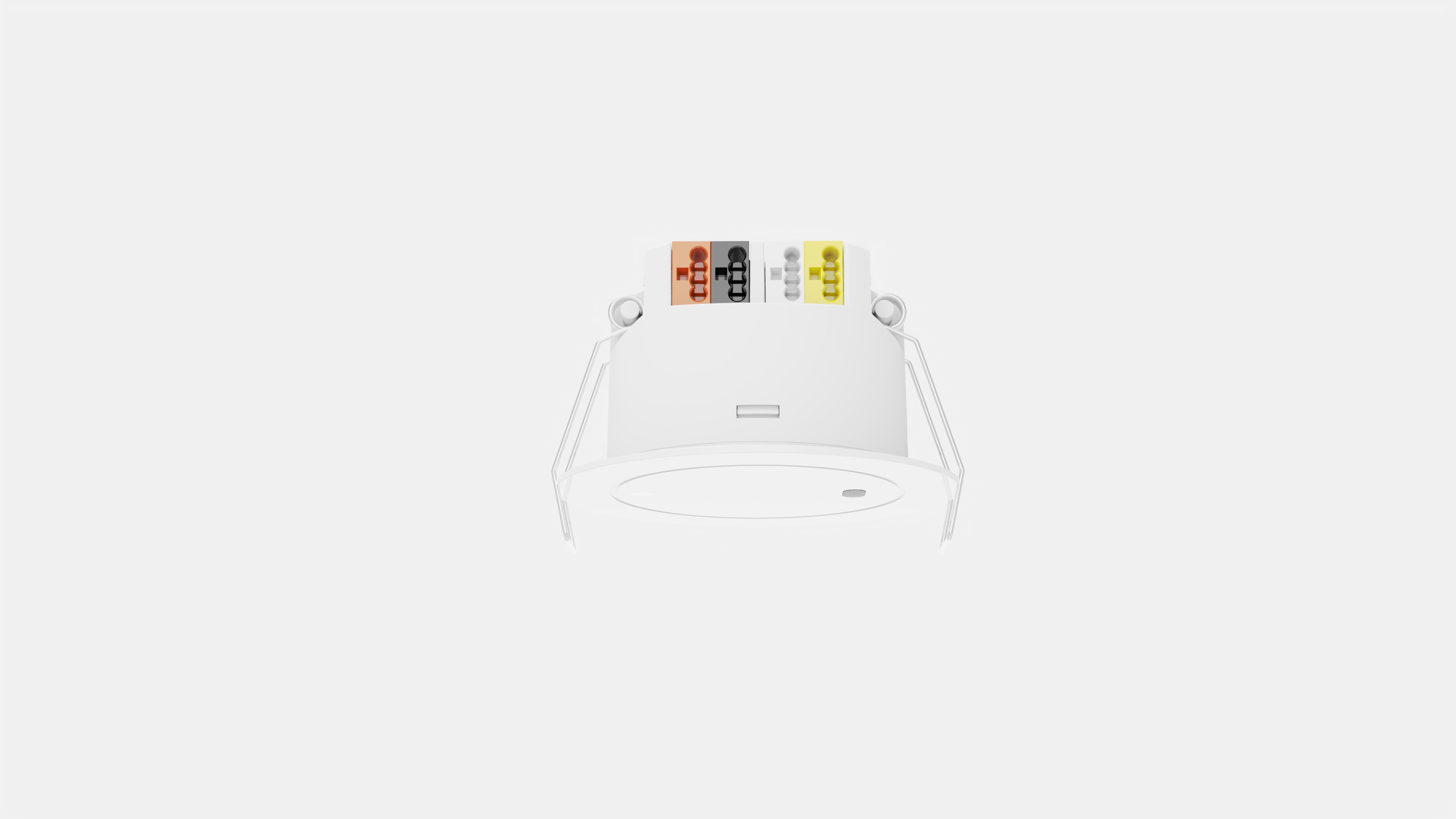

24G FMCW Mode KNX Occupancy Detector With Integrated KNX Bus Connector

  • 24G FMCW Mode KNX Occupancy Detector With Integrated KNX Bus Connector
Place of Origin Shenzhen, China
Brand Name Merrytek
Certification CE
Model Number MSA237K 99 A
Minimum Order Quantity 100PCS
Price Negotiation
Packaging Details White box+ White box tags+ Clapboard+ Carton(K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Voltage 12-30Vdc Working Mode KNX Intelligent Communication
Mounting Height 2.5-4.0m Life Time 5 Years Warranty@Ta 230V Full Load
Working Power ≤1W Working Frequency 24GHz ±24.25GHz
Detecting Type Breath Detecting, Major Motion Detecting, Minor Motion Detecting Mounting Flush Mounting
Highlight

FMCW Mode KNX Occupancy Detector

,

Integrated KNX bus connector occupancy detector

,

24G KNX occupancy detector
Leave a Message
Product Description

24G FMCW mode KNX occupancy detector with integrated KNX bus connector



1. Parameters

INPUT Auxiliary Power Supply Voltage Range 12-30V DC
KNX Terminal Voltage 21-30V DC
Auxiliary Power Supply Working Current 12V : 55±3mA Max 24V: 30±3mA Max
KNX Terminal Current 3±1mA
Working Power ≤1W @24V DC
Sensor Parameter Working Frequency 24GHz-24.25GHz ISM band
Transmitting Power 5mW Max
Detection Area ETS/remote setting: 0.5-4m
Hold Time ETS/remote setting: 3S-7200S Remark: For better presence detection, hold time shall set >30S

Detecting Range

(100% detection area, radius)

 major/minor/micor movement(3m height installation): 3.5±0.5m(based on 41㎡ open area test and might change due to different space)
Remote Control Support
Mounting Height 2-4m, typical value: 3m
3db Beam Angle 100° (XZ field)
100° (YZ field)
Application environment Flush-mounted Hole Size Φ50-55mm
Working Temperature 0℃...+50℃
Storage Temperature -40℃...80℃, Humidity: ≤85%(non-condensing)
Certificate Standard Certificate FCC/RED
Environmental Requirement Compliant to RoHS
IP Rating IP20
Gurantee 5 year(only for product quality problem under indoor application)
“N/A” means not available





2. Product Function



24G FMCW Mode KNX Occupancy Detector With Integrated KNX Bus Connector 0









3. Dimension

24G FMCW Mode KNX Occupancy Detector With Integrated KNX Bus Connector 1

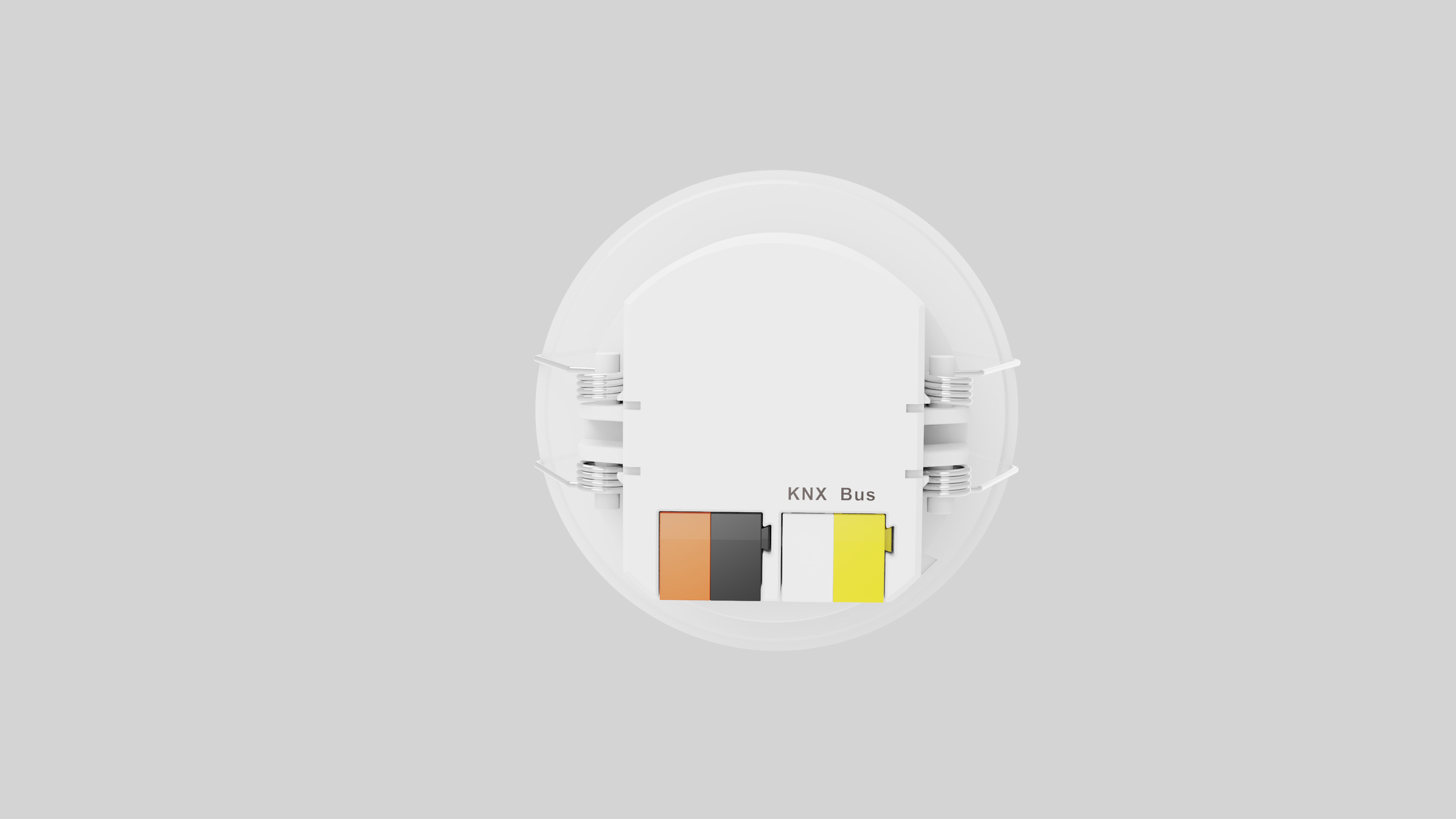

4. Wiring

24G FMCW Mode KNX Occupancy Detector With Integrated KNX Bus Connector 2



Wiring layout suggestion:

1. KNX bus wiring suggestion hand in hand to the end, star or tree wiring is not recommended to ensure the stability of signal transmission.

2. KNX bus wiring wire recommends KNX standard EIB shielded wire or Category 6 network cable, the length of the bus wiring is recommended not to exceed 400 meters, and the number of sensor connected to a bus is recommended to not exceed 12.

3. The number of sensors connected to a bus needs to fully consider the current load capacity of the power supply: that is the sum of the currents of all KNX devices (including sensors) shall not be greater than the load current of the KNX power supply.



5. Detection

24G FMCW Mode KNX Occupancy Detector With Integrated KNX Bus Connector 3







6. Initialization

After routing the physical addresses and setting the channel parameters, follow these steps:

(1) Connect the Bus interface;

(2) Set the Bus and auxiliary power on (note: please make sure that the product has an auxiliary power supply, otherwise the device may not work properly);

(3) Press the programming switch of the product, the LED light will turn red;

(4) Use the bus interface to download the physical address through the ETS software. The programming LED light is off to indicate that the physical address download is completed;

(5) Download the application after setting the required application parameters.

(6) After downloading the application, the product goes into initialization. During initialization, the detection function is disabled. After 20S, the initialization is completed, and the product works normally;

Note: Please use the latest version of ETS 5 or 5.7.2. Please obtain this sensor's ETS engineering configuration file from our sales staff.





7. Installation Instructions

Embedded mounting installation

  1. Trepanning a 50-55mm hole
  2. Securely wire cable into the terminal
  3. Press the program button
  4. Put the spring clip into the hole and fasten it well
  5. Ensure the sensor is firmly installed

24G FMCW Mode KNX Occupancy Detector With Integrated KNX Bus Connector 4





8. Factory Default Setting

Detection Area: 4m Hold Time: 30S Indicator Light: open Sensitivity: medium sensitivity



9. Remote Control MH18

24G FMCW Mode KNX Occupancy Detector With Integrated KNX Bus Connector 5



10. Application Notice

Our microwave motion sensor is an electromagnetic product that aims to detect moving objects and shall be firmly fastened. Strong reflect material like metal or metallic coating or moving pet or moving fan have false trigger chance, so we need to consider the below aspect during installation

  • Because the human body consists of electrolytes and can reflect radar waves, our microwave motion sensor mainly applies the Doppler principle to measure human motion and output occupied/unoccupied status
  • Because radar waves can penetrate thin glass, thin wood, and thin gypsum board but can’t penetrate concrete walls or metal to detect motion, you need to select the right installation location, set proper detection sensitivity, and hold time to meet your ideal sense result
  • Because our microwave motion sensor is in continuous working mode, our sensor power current shall guarantee at least a stable 14mA
  • Due to our microwave motion sensor being KNX bus-powered, you need to connect a limited sensor quantity in a loop(we suggest no more than 6 sensors in a loop)
  • 5.5G router and other high-power wireless equipment might interfere with our microwave motion sensor, so a 2m installation interval between our sensor and such equipment is highly recommended, and detection sensitivity shall be adjusted based on the construction scene
  • Air outlet airflow might shake our microwave motion sensor, so a 2m installation interval between our sensor and air outlet or metallic material is highly recommended, and detection sensitivity shall be adjusted based on the construction scene
  • There shall be no blocking material like hanging lighting or pipelines just under our microwave motion sensor to ensure its regular work
  • When applying our motion sensor in a loop, you can apply one sensor to control more KNX equipment or more sensors to control one equipment. Also, a daylight harvesting function is available for our sensor
