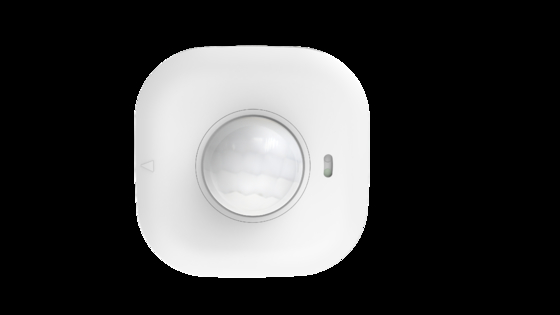

KNX Certified occupancy detector designed for high-bay warehouses with max. 10m mounting height

  • KNX Certified occupancy detector designed for high-bay warehouses with max. 10m mounting height
  • KNX Certified occupancy detector designed for high-bay warehouses with max. 10m mounting height
  • KNX Certified occupancy detector designed for high-bay warehouses with max. 10m mounting height
  • KNX Certified occupancy detector designed for high-bay warehouses with max. 10m mounting height
  • KNX Certified occupancy detector designed for high-bay warehouses with max. 10m mounting height
  • KNX Certified occupancy detector designed for high-bay warehouses with max. 10m mounting height
Place of Origin Shenzhen, China
Brand Name Merrytek
Certification CE
Model Number MSA237K 99 IR
Minimum Order Quantity 100PCS
Price Negotiation
Packaging Details White box+ White box tags+ Clapboard+ Carton(K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Voltage 12-30Vdc Working Mode KNX Intelligent Communication
Mounting Height 2.5-10m Life Time 5 Years Warranty@Ta 230V Full Load
Working Power ≤1W Function PIR Motion Detection+ Daylight Sensor
KNX Certified Yes Mounting Flush Mounting/ Surface Mounting/ EU86 Box
Leave a Message
Product Description

KNX Certified occupancy detector designed for high-bay warehouses with max. 10m mounting height



1. Parameters

Input/Output KNX Terminal Voltage 21-30V DC
KNX Terminal Current 3±1mA
Working Power ≤1W @24V DC
Sensor Parameter Function PIR motion detection+ daylight sensor
Detection Area ETS/remote setting:0-100%
Hold Time ETS setting :3S-7200S
Radius detection range(based on 100% sensitivity) 4-5m@25℃ based on 8m mounting height
Remote control Available
Mounting height 2.5-10m, typical value:8m



Detection angle



 120°
Application environment Drill hole Φ55mm
Working temperature -25℃...+50℃(detection range might differ based on different temperature )
Storage temperature -40℃~+80℃
Certificate Standard Certificate Compliant to CE
Environmental requirements Compliant to RoHS
IP rating IP20(Flush mounting) IP54(Surface mounting)
Warranty 5 years(available due to product quality problem under indoor application)
“N/A” means not available



2. Product Function



KNX Certified occupancy detector designed for high-bay warehouses with max. 10m mounting height 0









3. Dimension

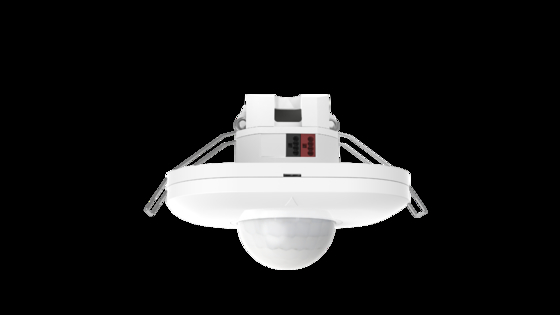

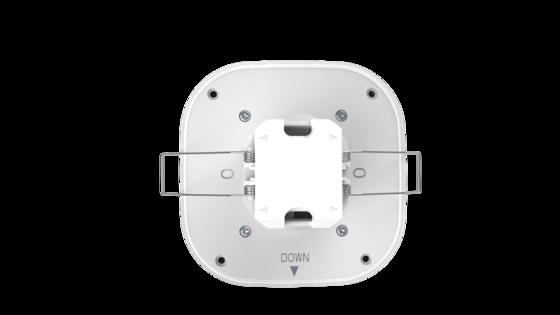

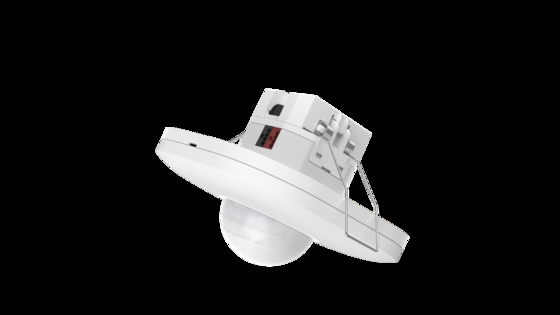

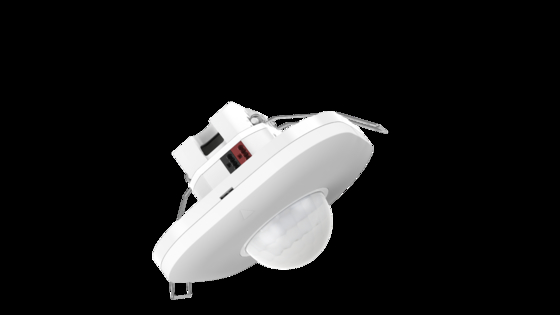

Flush Mounting:

KNX Certified occupancy detector designed for high-bay warehouses with max. 10m mounting height 1

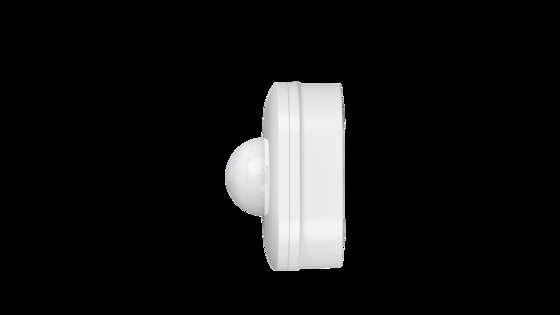

Surface mounting:

KNX Certified occupancy detector designed for high-bay warehouses with max. 10m mounting height 2

4. Wiring

KNX Certified occupancy detector designed for high-bay warehouses with max. 10m mounting height 3



Wiring layout suggestion:

1. Suggesting KNX bus wiring hand-in-hand to the end, star, or tree wiring is not recommended to ensure the stability of signal transmission.

2. KNX bus wiring recommends KNX standard EIB shielded wire or Category 6 network cable. The length of the bus wiring is recommended not to exceed 400 meters, and the number of sensors connected to a bus is recommended not to exceed 12.

3. The number of sensors connected to a bus needs to fully consider the current load capacity of the power supply: that is, the sum of the currents of all KNX devices (including sensors) shall not be greater than the load current of the KNX power supply.



5. Detection Range

KNX Certified occupancy detector designed for high-bay warehouses with max. 10m mounting height 4







6. Initialization

After routing the physical addresses and setting the channel parameters, follow these steps:

(1) Connect the Bus interface.

(2) Set the Bus and auxiliary power on (note: please make sure that the product has an auxiliary power supply; otherwise, the device may not work properly).

(3) Press the programming switch of the product; the LED light will turn red.

(4) Use the bus interface to download the physical address through the ETS software. The programming LED light is off to indicate that the physical address download is completed.

(5) Download the application after setting the required application parameters.

(6) After downloading the application, the product goes into initialization. During initialization, the detection function is disabled. After 20S, the initialization is completed, and the product works normally.

Note: Please use the latest version of ETS 5 or 5.7.2. Please obtain this sensor's ETS engineering configuration file from our sales staff.





7. Factory Default Setting

Detection Area: 100% Hold Time: 30S Indicator Light: open



8. Remote Control MH18

KNX Certified occupancy detector designed for high-bay warehouses with max. 10m mounting height 5



Due to the complexity of product technology and differences in application environment, it is difficult to guarantee a completely accurate or complete description, so this specification is only for user reference.

We will reserve the right to make changes to the product specifications without notifying the user, and do not make any commitments and guarantees in the legal sense.At the same time, our company encourages users to supplement or modify the contents of our specifications after using our products.
