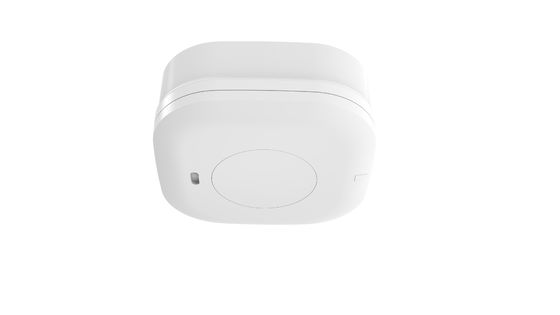

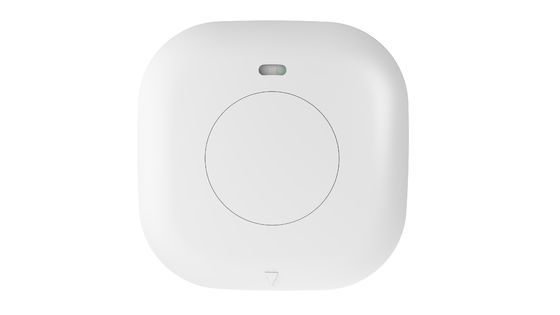

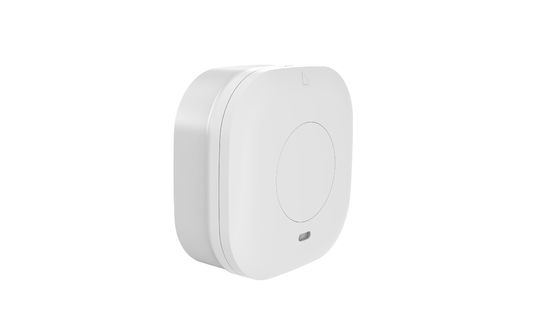

Casambi wireless mesh motion detector with DALI & PUSH output for true presence detection

Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MSA227 99 B1
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details White box+ White box tags+ Clapboard+ Carton(K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage 220-240Vac, 50/60Hz Working Current 50mA MAX.
Power Consumption ≤1W Function DALI Dimming & PUSH Dimming & Casambi
Detecting Area (radius) 3.5m±0.5m Mounting Height 2-4m
Installation Flush-mounted/86 Box/ Surface Mounted Cut Size Φ55mm
Leave a Message
Product Description

Casambi wireless mesh motion detector with DALI & PUSH output for true presence detection


1. Features
1) Exclusive Merrytek Lifebeing Presence Detection
2) FMCW modulation technology applied to detect micro movement brought by breathing
3) Germany RF technology applied for a 5-year guarantee assurance
4) Connect to the Casambi BLE ecosystem
5) Accurate motion detection with one channel DALI dimming and PUSH dimming
6) Flush mounting and surface mounting are available

7) 5-year warranty period


2. Parameters

Input/Output Input voltage 220-240V AC
Rated voltage 220V AC
Working current 50mA max
Power consumption ≤1W @220/230V AC
Output signal DALI+PUSH+casambi
Sensor parameter Function 24GHz mmW radar presence sensor + daylight sensor
Detection Area Casambi app: 0.5-4m
Sensor Hold Time Casambi app:10S/30S/1Min/3Min(presence detection will be available only when hold time>30s)
Daylight Sensor 0-1200lux
Radius detection range(based on 100% sensitivity and tangential moving) major/minor/micor movement(3m height installation): 3.5±0.5m(based on 41㎡ open area test and might change due to different space)
Sensitivity High/Medium/Low
Remote control Available
Mounting height 2-4m typical value: 3m



3dB beam angle



100°(Horizontal)
100°(Vertical)
Application environment Drill hole Φ55mm
Working temperature -25℃...+50℃
Storage temperature -40℃~+80℃
Warranty 5 year(available based on product quality)
Certificate Standard Certificate Compliant with CE
Environmental requirements Compliant with RoHS
IP rating IP20(flush mounting) IP54(surface mounting)
“N/A” means not available



3. Dimension

Flush mounted:

Casambi wireless mesh motion detector with DALI & PUSH output for true presence detection 0

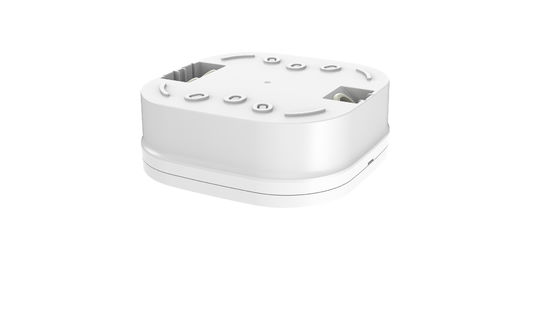

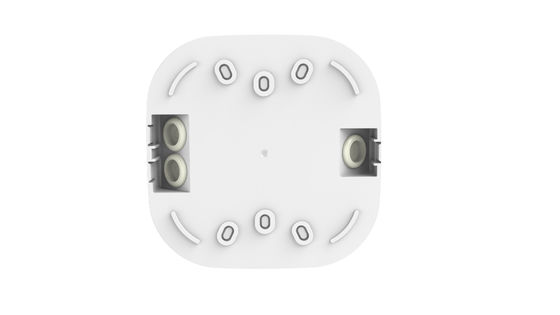

Surface Mounted

Casambi wireless mesh motion detector with DALI & PUSH output for true presence detection 1































Casambi wireless mesh motion detector with DALI & PUSH output for true presence detection 2































































4. Wiring Diagram

Casambi wireless mesh motion detector with DALI & PUSH output for true presence detection 3
5. Detection of radiation

Casambi wireless mesh motion detector with DALI & PUSH output for true presence detection 4








































6. Casambi App setting

Casambi wireless mesh motion detector with DALI & PUSH output for true presence detection 5



For more information, please get in touch with our sales rep. for more details.
