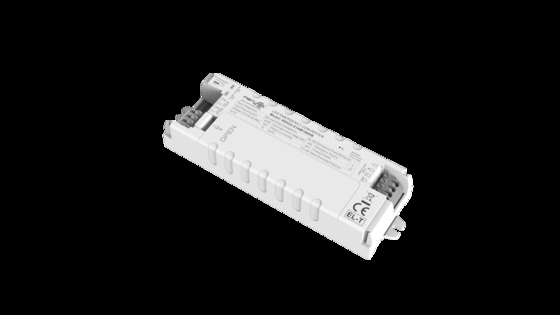

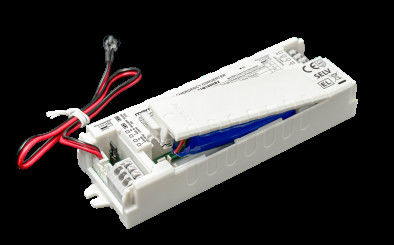

2.5W 3hours 20-60Vdc LED Emergency Power Supply Built-in Li-ion Battery Self Test & Manual Test Switchable

  • 2.5W 3hours 20-60Vdc LED Emergency Power Supply Built-in Li-ion Battery Self Test & Manual Test Switchable
  • 2.5W 3hours 20-60Vdc LED Emergency Power Supply Built-in Li-ion Battery Self Test & Manual Test Switchable
Place of Origin China
Brand Name Merrytek
Certification CE, UKCA, UN38.3, MSDS
Model Number KE022-03AM180KB
Minimum Order Quantity 100
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or Western Union
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Input Voltage 220-240Vac 50Hz /60Hz Emergency Power 2-3W(Can Be Customized)
Emergency Time 180min (Can Be Customized) Warranty 5 Years( Battery 3 Years)
Load Output Voltage 20-60Vdc Working Temprature 0℃~50℃
IP Rating IP20 Battery Type Li-ion 3.7V 2600mAh
Highlight

2.5W LED Emergency Power Supply

,

20-60Vdc LED Emergency Power Supply

,

Li-ion Battery LED Emergency Driver
Leave a Message
Product Description

3W 3hours 20-60Vdc Li-ion battery built-in LED Emergency Pack Self Test & Manual Test Switchable





1. Description



1) Constant power output LED emergency power supply with a wide output voltage range.
2) Input relay switching.
3) With multiple protection functions: battery overcharge, over-discharge protection, and output short circuit protection.

4) Self Test & Manual Test Switchable





2. Parameters

Charge Part KE022- 03AM180KB
Rated input voltage 220-240Vac 50Hz /60Hz
Rated input current 0.06A Max. @230Vac
Input inrush current 15A(twidth=100uS 50% Ipeak )@230Vac(Cold start at full load )
Power factor ≥0.5@230Vac
Input power <3W
Battery charging current (Max) 200mA
Battery charging time 24 hours Max.
Emergency Part Operating mode Emergency mode
Load type LED
Emergency power 2.5W
Emergency time 3hours
Load output current 125-40mA
Load output voltage 20-60VDC
Battery Li-ion (The battery capacity meets the emergency time at 25℃) 3.7V 2600mAh
Battery warranty Warranty 3 years
Exception Driver Requirements Surge current 8A
Input current 3 A Max.
Output current 2A
LED Indication Charging Green light
Fault Green light off
Emergency Function Test Manual test Pin short
Self test Pin open
Auto Testing Fault/test / Status Reason Charge Indicator Status
The battery is fully charged and operational Standard daily use
solid green
Battery Charging Initial Charge/Battery Top Up
Flashing green 1 sec on 1 sec off
Auto Test 3 Hours (every 12 months) Periodic self-test
Flashing Green 3 sec on 1 sec off
Auto Test 5 Min (every 30 days) Periodic self-test
Flashing Green 3 sec on 3 sec off
Duration test fault Failed the 3-hour annual test
Flashing Red 0.5 sec on 0.5 sec off
LED fault Not plugged in or damaged/faulty
Flashing Red 2 sec on – 2 sec off
Battery Disconnected/Faulty Not plugged in or damaged/faulty
solid red
Emergency protection Battery over-charge/deep discharge protection Yes
Output over-voltage protection Yes
Output overload protection Yes
Output short circuit protection Yes

Operating

Environment

 Operating temperature/humidity 0℃…+50℃ Humidity; 20%-75%(without condensation)
Storage temperature/humidity -5℃-35℃
Case Max. Temp(Tc) 75℃

Safety

& EMC

 Withstand voltage 3000Vac 5mA 60s (Input “L N” – output “SEC+ SEC-)
Safety standard EN61347-1, 60598-2-22, 61347-2-7, 62034
EMC standard EN55015, EN61000-3-2, EN61000-3-3
Battery standard UN38.3
Environmental protection requirements Compliant with RoHS
Certification CE
Others Input/output(terminal/wiring) specification Press terminal, wire diameter: 0.5-0.75mm2
IP rating IP20
Type of protection Class 2
Installation type Built-in installation
Installation dimension 134*42*22mm
Packaging requirement White box+Instruction manual+clapboard+outer carton(K=A)
Weight: Emergency Power Supply 122±5g
Lifespan 5 Year @Ta ( Battery not included )

Notes:

All parameters are tested on the input voltage 230Vac, environment temperature 25℃, unless otherwise specified.



3. Dimension (Unit: mm)



2.5W 3hours 20-60Vdc LED Emergency Power Supply Built-in Li-ion Battery Self Test & Manual Test Switchable 0



4. Wiring Diagram



2.5W 3hours 20-60Vdc LED Emergency Power Supply Built-in Li-ion Battery Self Test & Manual Test Switchable 1

OR

2.5W 3hours 20-60Vdc LED Emergency Power Supply Built-in Li-ion Battery Self Test & Manual Test Switchable 2

5. Manual Test and Autotest switch

2.5W 3hours 20-60Vdc LED Emergency Power Supply Built-in Li-ion Battery Self Test & Manual Test Switchable 3

6. Wire Preparation

2.5W 3hours 20-60Vdc LED Emergency Power Supply Built-in Li-ion Battery Self Test & Manual Test Switchable 4

  • Solid or Stranded wire type:0.5 -0.75mm2
  • To access or remove the wires from the terminals, use a screwdriver to push the buttons down



7. Manual Test & Operation Instructions

1) Before installation, set Pin short: Manual Test.

2) Connect the wire according to the wiring diagram.

3) L, N power on, Switch on S1. Then the load lamp turns on, the emergency driver indicator light turns green, emergency power supply will be normally charging. Turn off Switch S1, and the load lamp turns off.

4) Emergency Simulation: Switch on, the load lamp turns on, press the switch(TEST SWITCH), then switch to emergency mode, the indicator light of the emergency driver will be extinguished. Release the switch(TEST SWITCH), then the lamp is powered by the LED driver, and the indicator light will turn on.



8. Automatic Test & Operation Instructions

1) Before installation, set Pin open: Automatic Test.

2) Connect the wire according to the wiring diagram.

3) L, N power on, start the clock, and periodic self-test. To replace the battery, turn off the power supply, Re-time.



9. Battery Application Notice

1) The battery should be recharged and discharged semiannually in normal use conditions.

2) Do not connect to the circuit when the battery is not used to prevent over-discharging of the battery due to self-consumption of the circuit board.

3) Please keep the battery away from the heat source when installing and using it, and only be allowed to use it in a certain working temperature range.

4) The battery should be stored in a cool and dry environment.

5) After a long time of storage, the battery is cycled every 12 months as required.

6) AC power is off, and the clock lasts for 7 days, Power on and re-time. To replace the battery, turn off the power supply, Re-time.
