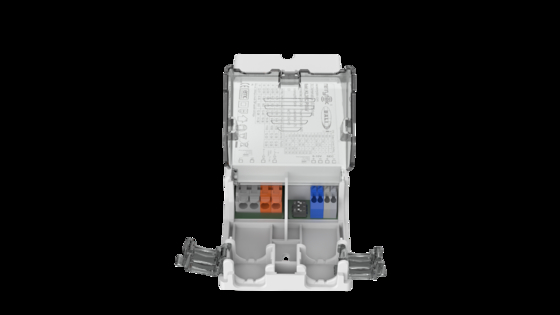

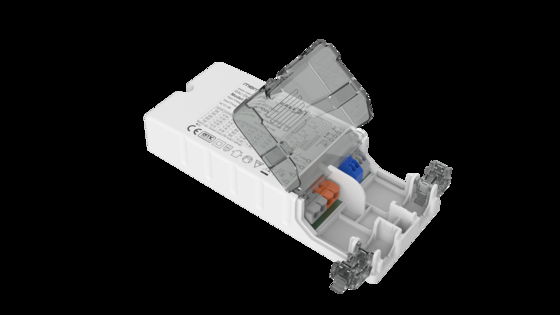

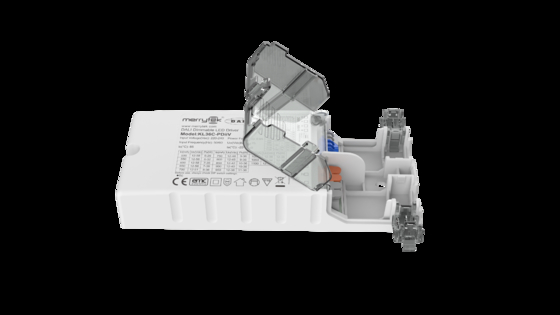

Easy-use series 36W Constant current dimmable LED Driver 500mA to 1100mA optional with DALI2 dimming and 5 years warranty period

  • Easy-use series 36W Constant current dimmable LED Driver 500mA to 1100mA optional with DALI2 dimming and 5 years warranty period
  • Easy-use series 36W Constant current dimmable LED Driver 500mA to 1100mA optional with DALI2 dimming and 5 years warranty period
  • Easy-use series 36W Constant current dimmable LED Driver 500mA to 1100mA optional with DALI2 dimming and 5 years warranty period
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number KL36C-PDiiV
Minimum Order Quantity 100
Price Negotiation
Packaging Details White box + Carton, 50pcs/CTN
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or PayPal
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Input Voltage 220-240Vac 50Hz /60Hz DC Input Voltage Range 200-240Vdc
Operating Mode Constant Current Control Method DALI DT6 And PushDIM And 1 10v Dimmable Led Driver
Power Factor ≥0.95 Efficiency 88%
Current 500-1100mA Dimension 154x63x28mm
IP Rating IP20 Warranty 5 Years
Highlight

36W dimmable LED driver

,

DALI2 dimming LED driver

,

500mA-1100mA constant current driver
Leave a Message
Product Description

Easy-use series 36W Constant current dimmable LED Driver 500mA to 1100mA optional with DALI2 dimming and 5 years warranty period



1. Description

-Flicker-free for the whole dimming range

-Stand-by power below 0.5W

-Primary dimming with a push button

-Secondary dimming with 1-10V dimmer

-Built-in DALI interface DT6

-Protection: short circuit / over temperature/ over voltage

-CLO compensation

-Derating the current for high ambient temperature

-pushDIM with the memory function

-5-year warranty



2. Parameters

Input Operating Voltage 198-264Vac 50Hz/60Hz
Rated Input Voltage 220-240Vac 50Hz/60Hz
DC Input Voltage range 200-240Vdc
Input Current 0.19A Max.
Input Inrush Current <15A (Half current pulse width100μs) @230Vac
Power factor(@230V100% load) ≥ 0.95
Total harmonic distortion Typical:15% (@230Vac, 100% load)
Stand-by power ≤0.5W (@230Vac when DALI turns off)
Efficiency(@230Vac,100% load) 88% Max.
Wiring Method Wire cross section:0.75-2.5mm2

Automatic circuit breaker

(Calculate current in the wire)

 type B10 B13 B16 B20 B25 /
Number 20 25 35 45 55 /
type C10 C13 C16 C20 C25 C32
Number 35 50 55 75 95 120
Output Operating mode Constant Current
Load type LED
Ripple requirement (Flickering or Flickering-Free) Flicker value: less than 5% for the whole dimming range
Start-up time <1s (@230Vac); <0.5s (@200Vdc)
No-load output voltage 75V DC Max.
Load output voltage range 9-58V DC
Full load output power 36W Max.
Load output current 500-1100mA For details<Current gear setting>
Constant current/voltage Precision Constant Current Precision ±5%
Wiring method Wire cross section:0.75-1.5mm2
Control Method Primary PUSH Dimming Primary PUSH dimming (Max. lead wire length:20m)
DALI Dimming DALI dimming (Max. lead length:300m)
1-10V(0-10V)Dimming 0-10V dimming(Port current＜1mA) no turn off function
(Max.lead length:20M)
Dimming range 0%-100%
Exception Protection Requirements Output over temperature
protection		 Yes, without a self-recovery function(Can be inquired)
Output short circuit protection Yes, without a self-recovery function(Can be inquired)

Operating

Environment

 Operating temperature/ humidity -25℃~50℃ Humidity: 85% (Non-condensing)
Storage temperature/ humidity -40℃~80℃, Humidity: 85% (Non-condensing)
Max. case temp(Tc) 85℃

Safety

& EMC

 EMC standard EN55015 EN61547 EN61000-3-2 EN61000-3-3
DALI protocol standard IEC62386-101 / 102 / 207 DT6 251 252 253
Safety standard EN61347-1 EN61347-2-13
Certification CE, ENEC, UKCA
Withstand voltage 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”)
Others Degrees of protection IP20
Type of protection Class II
Installation type Independent installation
Dimension 154*63*28mm
Blackout memory function Yes, PUSH blackout memory
PUSH dimming synchronization

Parallel: 15 units Max.

Series: 25 units Max.
Packaging requirement PE bag + white box + manual + partition + outer box (K=A)
Weight 173±5g
Life 5 year @Ta full load
Note: All parameters are tested at the input voltage of 230VAC and 25 °C environment unless specified.



3. Dimension (Unit:mm)

Easy-use series 36W Constant current dimmable LED Driver 500mA to 1100mA optional with DALI2 dimming and 5 years warranty period 0Easy-use series 36W Constant current dimmable LED Driver 500mA to 1100mA optional with DALI2 dimming and 5 years warranty period 1

4. Wiring Diagram

Easy-use series 36W Constant current dimmable LED Driver 500mA to 1100mA optional with DALI2 dimming and 5 years warranty period 2

Fig. A DALI Dimming

Easy-use series 36W Constant current dimmable LED Driver 500mA to 1100mA optional with DALI2 dimming and 5 years warranty period 3Easy-use series 36W Constant current dimmable LED Driver 500mA to 1100mA optional with DALI2 dimming and 5 years warranty period 4

Fig.B Push Dimming

Easy-use series 36W Constant current dimmable LED Driver 500mA to 1100mA optional with DALI2 dimming and 5 years warranty period 5

Fig.C 1-10V Dimming





5. Derating

Easy-use series 36W Constant current dimmable LED Driver 500mA to 1100mA optional with DALI2 dimming and 5 years warranty period 6

6. Dimming curve

Easy-use series 36W Constant current dimmable LED Driver 500mA to 1100mA optional with DALI2 dimming and 5 years warranty period 7

7. Current gear setting

Current(mA) DIP Pomax(W) Uout(V)
1 2 3 4
500 - - - - 29.0 9～ 58
550 - ON - - 31.9 9～ 58
600 - - ON - 34.8 9～ 58
650 - ON ON - 35.8 9～ 55
700 ON ON ON - 35.7 9～ 51
750 - - - ON 36.0 9～ 48
800 ON - - ON 36.0 9～ 45
850 - ON - ON 35.7 9～ 42
900 ON ON - ON 36.0 9～ 40
950 - - ON ON 36.1 9～ 38
1000 ON - ON ON 36.0 9～ 36
1050 - ON ON ON 35.7 9～ 34
1100 ON ON ON ON 36.3 9～ 33



8. ON/OFF & Description of Dimming Operation

A. Short press the PUSH switch (short-press time 0.1s-1s), the LED driver will turn on or off.

B. Dimming: Press and hold the PUSH switch (1s-8s), the LED driver can achieve dimming, brightening or dimming, the dimming range is 1-100%.

C. Memory: PUSH dimming has a dimming memory function.

D. Dimming synchronization: The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15s

E. DALI dimming mode: Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.



9. matters needing Attention

1) The LED string must be connected to the load before turning on the input power, otherwise the LED string may be damaged.

2) After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.
