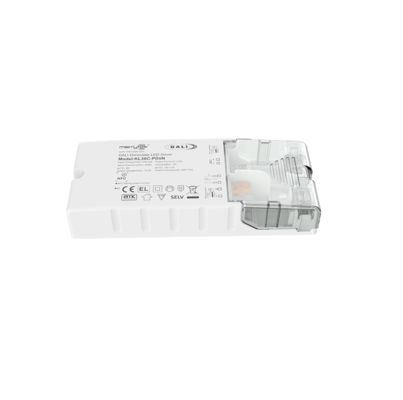

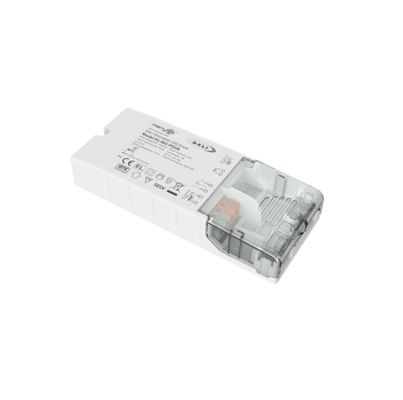

Easy-use series 36W NFC programmable led driver DALI2 dimmable led electronic driver output from 500mA to 1100mA

  • Easy-use series 36W NFC programmable led driver DALI2 dimmable led electronic driver output from 500mA to 1100mA
  • Easy-use series 36W NFC programmable led driver DALI2 dimmable led electronic driver output from 500mA to 1100mA
  • Easy-use series 36W NFC programmable led driver DALI2 dimmable led electronic driver output from 500mA to 1100mA
  • Easy-use series 36W NFC programmable led driver DALI2 dimmable led electronic driver output from 500mA to 1100mA
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number KL36C-PDiiN
Minimum Order Quantity 100
Price Negotiation
Packaging Details White box + Carton, 50pcs/CTN
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or PayPal
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Input Voltage 220-240Vac 50Hz /60Hz DC Input Voltage Range 200-240Vdc
Operating Mode Constant Current Control Method NFC Programmable Led Driver DALI2 & PUSH Dimming
Power Factor ≥0.95 Efficiency 88%
Current 500-1100mA Dimension 154x63x28mm
IP Rating IP20 Warranty 5 Years
Highlight

36W dimmable LED driver

,

DALI2 dimming LED driver

,

500mA-1100mA constant current driver
Leave a Message
Product Description

Easy-use series 36W NFC programmable LED driver DALI2 dimmable LED electronic driver output from 500mA to 1100mA



1. Description

-Flicker-free for the whole dimming range

-NFC technology for wireless programming

-Stand-by power below 0.5W

-Built-in DALI interface DT6

-Centrally-supplied DC emergency operation DT19

-Protection: short circuit / over temperature/ over voltage

-CLO compensation

-Derating the current for high ambient temperature

-pushDIM with the memory function

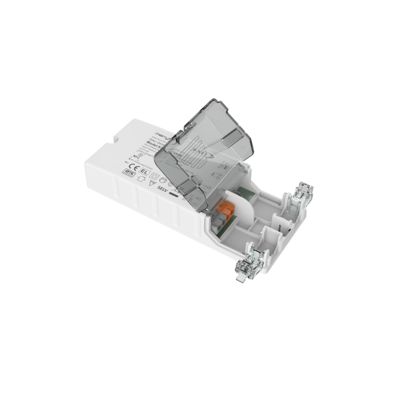

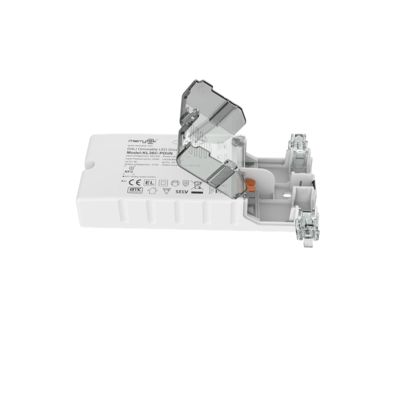

-Quick-wiring, Convenient, and time-saving

-5-year warranty



2. Parameters

Input Operating Voltage 198-264Vac 50Hz/60Hz
Rated Input Voltage 220-240Vac 50Hz/60Hz
DC Input Voltage range 200-240Vdc
Input Current 0.19A Max.
Input Inrush Current <15A (Half current pulse width100μs) @230Vac
Power factor(@230V100% load) ≥ 0.95
Total harmonic distortion Typical:15% (@230Vac, 100% load)
Stand-by power ≤0.5W (@230Vac when DALI turns off)
Efficiency(@230Vac,100% load) 88% Max.
Wiring Method Wire cross section:0.75-2.5mm2

Automatic circuit breaker

(Calculate current in the wire)

 type B10 B13 B16 B20 B25 /
Number 20 25 35 45 55 /
type C10 C13 C16 C20 C25 C32
Number 35 50 55 75 95 120
Output Operating mode Constant Current
Load type LED
Ripple requirement (Flickering or Flickering-Free) Flicker value: less than 5% for the whole dimming range
Start up time <1s (@230Vac); <0.5s (@200Vdc)
No-load output voltage 68V DC Max.
Load output voltage range 9-50V DC
Full load output power 36W Max.
Load output current 500-1100mA
Constant current/voltage Precision Constant Current Precision ±5%
Wiring method Wire cross-section: 0.75-1.5mm2
Control Method Primary PUSH Dimming Primary PUSH dimming (Max. lead wire length:20m)
DALI Dimming DALI dimming (Max. lead length:300m)
Dimming range Primary PUSH & DALI dimming: 0%-100%
Exception Protection Requirements Output over temperature
protection		 Yes, without a self-recovery function (Can be inquired)
Output short circuit protection Yes, without a self-recovery function (Can be inquired)

Operating

Environment

 Operating temperature/ humidity -25℃~50℃ Humidity: 85% (Non-condensing)
Storage temperature/ humidity -40℃~80℃, Humidity: 85% (Non-condensing)
Max. case temp(Tc) 85℃

Safety

& EMC

 EMC standard EN55015 EN61547 EN61000-3-2 EN61000-3-3
DALI protocol standard IEC62386-102, IEC62386-207 DT6 / 220 DT19 / 251 / 252 / 253
Safety standard EN61347-1 EN61347-2-13
Certification CE
Withstand voltage 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”)
Others Degrees of protection IP20
Type of protection Class II
Installation type Independent installation
Dimension 154*63*28mm
Blackout memory function Yes, PUSH blackout memory
PUSH dimming synchronization

Parallel: 15 units Max.

Series: 25 units Max.
Packaging requirement PE bag + kraft box + manual + partition + outer box (K=A)
Weight 179.5±5g
Life 5 year @Ta full load
Note: All parameters are tested at the input voltage of 230VAC and 25-degree environment unless specified.



3. Dimension (Unit:mm)

Easy-use series 36W NFC programmable led driver DALI2 dimmable led electronic driver output from 500mA to 1100mA 0Easy-use series 36W NFC programmable led driver DALI2 dimmable led electronic driver output from 500mA to 1100mA 1

4. Wiring Diagram

Easy-use series 36W NFC programmable led driver DALI2 dimmable led electronic driver output from 500mA to 1100mA 2

Fig. A DALI Dimming

Easy-use series 36W NFC programmable led driver DALI2 dimmable led electronic driver output from 500mA to 1100mA 3Easy-use series 36W NFC programmable led driver DALI2 dimmable led electronic driver output from 500mA to 1100mA 4

Fig.B Push Dimming





5. Derating

Easy-use series 36W NFC programmable led driver DALI2 dimmable led electronic driver output from 500mA to 1100mA 5

6. Dimming curve

Easy-use series 36W NFC programmable led driver DALI2 dimmable led electronic driver output from 500mA to 1100mA 6

7. Current gear setting

KL36C-PDiiN
Current(mA) Pomax(W) Uout(V)
500 25.0 9～ 50
550 27.5 9～ 50
600 30.0 9～ 50
650 32.5 9～ 50
700 35.0 9～ 50
750 36.0 9～ 48
800 36.0 9～ 45
850 35.7 9～ 42
900 36.0 9～ 40
950 36.1 9～ 38
1000 36.0 9～ 36
1050 35.7 9～ 34
1100 36.3 9～ 33

The typical current data sets are for reference when selecting LED fixture models. More current levels can be set by NFC using a mobile APP adjustable in 1mA steps.

Easy-use series 36W NFC programmable led driver DALI2 dimmable led electronic driver output from 500mA to 1100mA 7

Scan the code to download Merrytek NFC



8. ON/OFF & Description of Dimming Operation

A. Short press the PUSH switch (short-press time 0.1s-1s), the LED driver will turn on or off.

B. Dimming: Press and hold the PUSH switch (1s-8s), the LED driver can achieve dimming, brightening or dimming, the dimming range is 2-100%.

C. Memory: PUSH dimming has a dimming memory function.

D. Dimming synchronization: The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15 seconds.

E. DALI dimming mode: Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.



9. matters needing Attention

1) The LED string must be connected to the load before turning on the input power, otherwise the LED string may be damaged.

2) After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.

3) Before setting the parameters by NFC, please make sure the driver is powered off.
