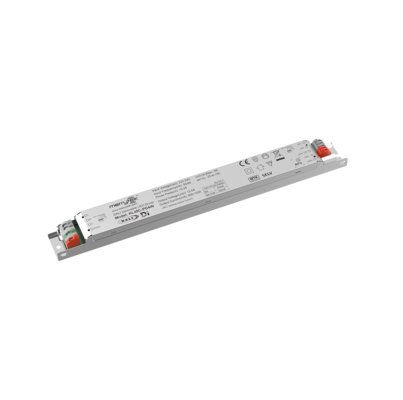

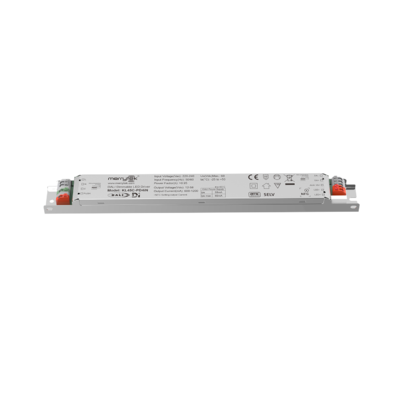

45W NFC led power driver CC 500mA to 1100mA D4i programmable led driver for LED linear light

  • 45W NFC led power driver CC 500mA to 1100mA D4i programmable led driver for LED linear light
  • 45W NFC led power driver CC 500mA to 1100mA D4i programmable led driver for LED linear light
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number KL45C-PD4iN
Minimum Order Quantity 100
Price Negotiation
Packaging Details White box + Carton, 50pcs/CTN
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or PayPal
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Input Voltage 220-240Vac 50Hz /60Hz DC Input Voltage Range 200-240Vdc
Operating Mode 45W Led Power Driver Control Method D4i Programmable Led Driver
Power Factor ≥0.95 Efficiency 87%
Current 500-1100mA Dimension 284x30x20mm
IP Rating IP20 Warranty 5 Years
Highlight

45W NFC LED power driver

,

D4i programmable LED driver

,

DALI2.0 dimmable LED driver
Leave a Message
Product Description

45W NFC led power driver CC 500mA to 1100mA D4i programmable led driver for LED linear light



1. Description

-Flicker-free for the whole dimming range

-NFC technology for wireless programming

-Stand-by power below 0.5W

-Primary dimming with a push button

-Built-in DALI interface D4i

-Centrally-supplied DC emergency operation DT19

-Protection: short circuit / over temperature/ over voltage

-CLO compensation

-Derating the current for high ambient temperature

-Push dim with memory function

-5-year warranty



2. Parameters

Input Operating Voltage 198-264Vac 50Hz/60Hz
Rated Input Voltage 220-240Vac 50Hz/60Hz
DC Input Voltage range 200-240Vdc
Input Current 0.23A Max.
Input Inrush Current <15A (Half current pulse width100μs) @230Vac
Power factor(@230V100% load) ≥ 0.95
Total harmonic distortion Typical:15% (@230Vac, 100% load)
Stand-by power ≤0.5W (@230Vac when DALI turns off)
Efficiency(@230Vac,100% load) 87% Max.
Wiring Method Wire cross section:0.75-1.5mm2

Automatic circuit breaker

(Calculate current in the wire)

 type B10 B13 B16 B20 B25 /
Number 20 25 30 40 50 /
type C10 C13 C16 C20 C25 C32
Number 30 43 50 60 80 100
Output Operating mode Constant Current
Load type LED
Ripple requirement (Flickering or Flickering-Free) Flicker value: less than 5% for the whole dimming range
Start up time <1s (@230Vac)
No-load output voltage 68V DC Max.
Load output voltage range 15-58V DC
Full load output power 45W Max.
Load output current 500-1100mA
Constant current/voltage Precision Constant Current Precision ±5%
Wiring method

Wire cross section:0.75-1.5mm2
Control Method Output auxiliary power port 18Vdc, 100mA
DALI Dimming DALI dimming (Max. lead length:300m)
DALI Power Supply lps 55mA (60mA Max.)
Primary PUSH Dimming Primary PUSH dimming (Max. lead wire length:20m)
Dimming range Primary PUSH & DALI dimming: 0%-100%
Exception Protection Requirements Output over temperature
protection		 Yes, without a self-recovery function(Can be inquired)
Output short circuit protection Yes, without a self-recovery function(Can be inquired)

Operating

Environment

 Operating temperature/ humidity -25℃~50℃ Humidity: 85% (Non-condensing)
Storage temperature/ humidity -40℃~80℃, Humidity: 85% (Non-condensing)
Max. case temp(Tc) 85℃

Safety

& EMC

 EMC standard EN55015 EN61547 EN61000-3-2 EN61000-3-3
DALI protocol standard IEC62386-101 / 102 / 207 DT6 / 220 DT19 / 250 / 251 / 252 / 253
Safety standard EN61347-1 EN61347-2-13
Certification CE
Withstand voltage 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”)
Others Degrees of protection IP20
Type of protection Class I
Installation type Built-in installation
Dimension 284*30*20mm
Blackout memory function Yes, PUSH blackout memory
PUSH dimming synchronization 15 units Max.
Packaging requirement PE bag + white box + manual + partition + outer box (K=A)
Weight 198±5g
Life 5 year @Ta full load
Note: All parameters are tested at the input voltage of 230VAC and a 25-degree environment unless specified.

3. Dimension (Unit: mm)

45W NFC led power driver CC 500mA to 1100mA D4i programmable led driver for LED linear light 0



4. Wiring Diagram



45W NFC led power driver CC 500mA to 1100mA D4i programmable led driver for LED linear light 1

                                                Fig A DALI Dimming

45W NFC led power driver CC 500mA to 1100mA D4i programmable led driver for LED linear light 2

                                                       Fig B PUSH Dimming

5. Derating

45W NFC led power driver CC 500mA to 1100mA D4i programmable led driver for LED linear light 3

6. Dimming curve

45W NFC led power driver CC 500mA to 1100mA D4i programmable led driver for LED linear light 4

7. Current gear setting

KL45C-PD4iN
Current(mA) Pomax(W) Uout(V)
500 29.0 15～ 58
550 31.9 15～ 58
600 34.8 15～ 58
650 37.7 15～ 58
700 40.6 15～ 58
750 43.5 15～ 58
800 44.8 15～ 56
850 45.1 15～ 53
900 45.0 15～ 50
950 44.7 15～ 47
1000 45.0 15～ 45
1050 45.2 15～ 43
1100 45.1 15～ 41

The typical current data sets are for reference when selecting LED fixture models. More current levels can be set by NFC using a mobile APP adjustable in 1mA steps.

45W NFC led power driver CC 500mA to 1100mA D4i programmable led driver for LED linear light 5



8. ON/OFF & Description of Dimming Operation

A. Short-press the PUSH switch (short press time 0.1s-1s), the LED driver will turn on or off.

B. Dimming: Press and hold the PUSH switch (1s-8s), the LED driver can achieve dimming, brightening, or dimming, the dimming range is 2-100%.

C. Memory: PUSH dimming has a dimming memory function.

D. Dimming synchronization: The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15 seconds.

E. DALI dimming mode: Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.



9. matters needing Attention

1) The LED driver must be connected to the load before turning on the input power, otherwise the LED driver may be damaged.

2) After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.

3) Before setting the parameters by NFC, please make sure the driver is powered off.
