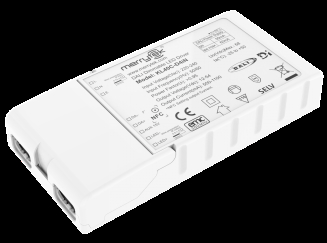

60 watt led driver 700mA to 1400mA 1 10v dimmable LED driver with 5 years warranty period

  • 60 watt led driver 700mA to 1400mA 1 10v dimmable LED driver with 5 years warranty period
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number KL60C-PDiiV2
Minimum Order Quantity 100
Price Negotiation
Packaging Details White box + Carton, 50pcs/CTN
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or PayPal
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Input Voltage 220-240Vac 50Hz /60Hz DC Input Voltage Range 200-240Vdc
Operating Mode 60 Watt Led Driver Control Method DALI DT6 And PushDIM And 1 10v Dimmable Led Driver
Power Factor ≥0.95 Efficiency 88%
Current 700-1400mA Dimension 130x79x26mm
IP Rating IP20 Warranty 5 Years
Highlight

60 watt dimmable LED driver

,

700mA to 1400mA LED driver

,

DALI 2.0 dimmable driver
Leave a Message
Product Description

60 watt led driver 700mA to 1400mA 1 10v dimmable LED driver with 5 years warranty period



1. Description

-Flicker-free for the whole dimming range

-Stand-by power below 0.5W

-Primary dimming with a push button

-Secondary dimming with 1-10V dimmer

-Built-in DALI interface DT6

-Protection: short circuit / over temperature/ over voltage

-CLO compensation

-Derating the current for high ambient temperature

-pushDIM with the memory function

-5-year warranty



2. Parameters



Input Operating Voltage 198-264Vac 50Hz/60Hz
Rated Input Voltage 220-240Vac 50Hz/60Hz
DC Input Voltage range 200-240Vdc
Input Current 0.3A Max.
Input Inrush Current < 15A (Half current pulse width100μs) @230Vac
Power factor ≥ 0.95 (@230Vac, 100% load)
Total harmonic distortion Typical: 15% (@230Vac, 100% load)
Stand-by power ≤ 0.5W (@230Vac when PUSH or DALI turns off)
Efficiency 88% Max. (@230Vac,100% load)
Wiring Method Wire cross section:0.75-2.5mm2

Automatic circuit breaker

(Calculate current in the wire)

 type B10 B13 B16 B20 B25 /
Number 15 20 25 28 30 /
type C10 C13 C16 C20 C25 C32
Number 23 32 38 48 60 75
Output Operating mode Constant Current
Load type LED
Ripple requirement (Flickering or Flickering-Free) Flicker value: less than 5% for the whole dimming range
Start-up time <1s (@230Vac); <0.5s (@200Vdc)
No-load output voltage 60V DC Max.
Load output voltage range 9-53V DC
Full load output power 60W Max.
Load output current 700-1400mA For details<Current gear setting>
Constant current/voltage Precision Constant Current Precision ±5%
Wiring method Wire cross section:0.75-1.5mm2

Control Method Primary PUSH Dimming Primary PUSH dimming (Max.lead length:20M)
0-10V Dimming 0-10V dimming(Port current＜1MA)
(Max.lead length:20M)
DALI Dimming DALI dimming (Max. lead length:300m)
Dimming range 0%-100%
Exception Protection Requirements Output over temperature
protection		 Yes, without a self-recovery function(Can be inquired)
Output short circuit protection Yes, without a self-recovery function(Can be inquired)

Operating

Environment

 Operating temperature/ humidity -25℃~45℃ Humidity: 85% (Non-condensing)
Storage temperature/ humidity -40℃~80℃, Humidity: 85% (Non-condensing)
Max. case temp(Tc) 85℃

Safety

& EMC

 EMC standard EN55015 EN61547 EN61000-3-2 EN61000-3-3
DALI protocol standard IEC62386-101 / 102 / 207 DT6 / 220 DT19 / 251 / 252 / 253
Safety standard EN61347-1 EN61347-2-13
Certification CE, ENEC, UKCA
Withstand voltage 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”)
Others Degrees of protection IP20
Type of protection Class I
Installation type Independent installation or Built-in installation
Dimension (Independent installation) 160*79*26mm
Dimension (Built-in installation) 130*79*26mm
Blackout memory function Yes, PUSH blackout memory
PUSH dimming synchronization

Parallel: 15 units Max.

Series: 25 units Max.
Packaging requirement PE bag + white box + manual + partition + outer box (K=A)
Weight (Independent installation) 209±5g
Weight (Built-in installation) 185±5g
Life 5 year @Ta full load
Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified.

3. Dimension (Unit:mm)

60 watt led driver 700mA to 1400mA 1 10v dimmable LED driver with 5 years warranty period 060 watt led driver 700mA to 1400mA 1 10v dimmable LED driver with 5 years warranty period 1

                                   Fig A Standalone Design                                              Fig B Built-in Design



4. Wiring Diagram

60 watt led driver 700mA to 1400mA 1 10v dimmable LED driver with 5 years warranty period 2

Fig. A DALI Dimming

60 watt led driver 700mA to 1400mA 1 10v dimmable LED driver with 5 years warranty period 360 watt led driver 700mA to 1400mA 1 10v dimmable LED driver with 5 years warranty period 4

Fig.B Push Dimming

60 watt led driver 700mA to 1400mA 1 10v dimmable LED driver with 5 years warranty period 5

Fig.C 1-10V Dimming





5. Derating

60 watt led driver 700mA to 1400mA 1 10v dimmable LED driver with 5 years warranty period 6

6. Dimming curve

60 watt led driver 700mA to 1400mA 1 10v dimmable LED driver with 5 years warranty period 7

7. Current gear setting

Current(mA) DIP Pomax(W) Uout(V)
1 2 3 4
700 - - - - 37.1 9～ 53
750 - ON - - 39.8 9～ 53
800 - - ON - 42.4 9～ 53
900 - ON ON - 47.7 9～ 53
1000 ON ON ON - 53.0 9～ 53
1050 - - - ON 55.7 9～ 53
1100 ON - - ON 58.3 9～ 53
1150 - ON - ON 59.8 9～ 52
1200 ON ON - ON 60.0 9～ 50
1250 - - ON ON 60.0 9～ 48
1300 ON - ON ON 59.8 9～ 46
1350 - ON ON ON 59.4 9～ 44
1400 ON ON ON ON 60.2 9～ 43



8. ON/OFF & Description of Dimming Operation

A. Short press the PUSH switch (short-press time 0.1s-1s), the LED driver will turn on or off.

B. Dimming: Press and hold the PUSH switch (1s-8s), the LED driver can achieve dimming, brightening or dimming, the dimming range is 1-100%.

C. Memory: PUSH dimming has a dimming memory function.

D. Dimming synchronization: The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15s

E. DALI dimming mode: Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.



9. matters needing Attention

1) The LED string must be connected to the load before turning on the input power, otherwise the LED string may be damaged.

2) After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.
