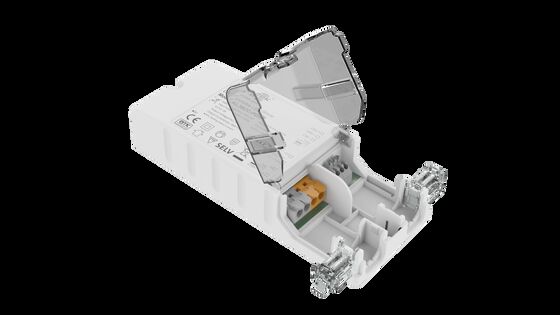

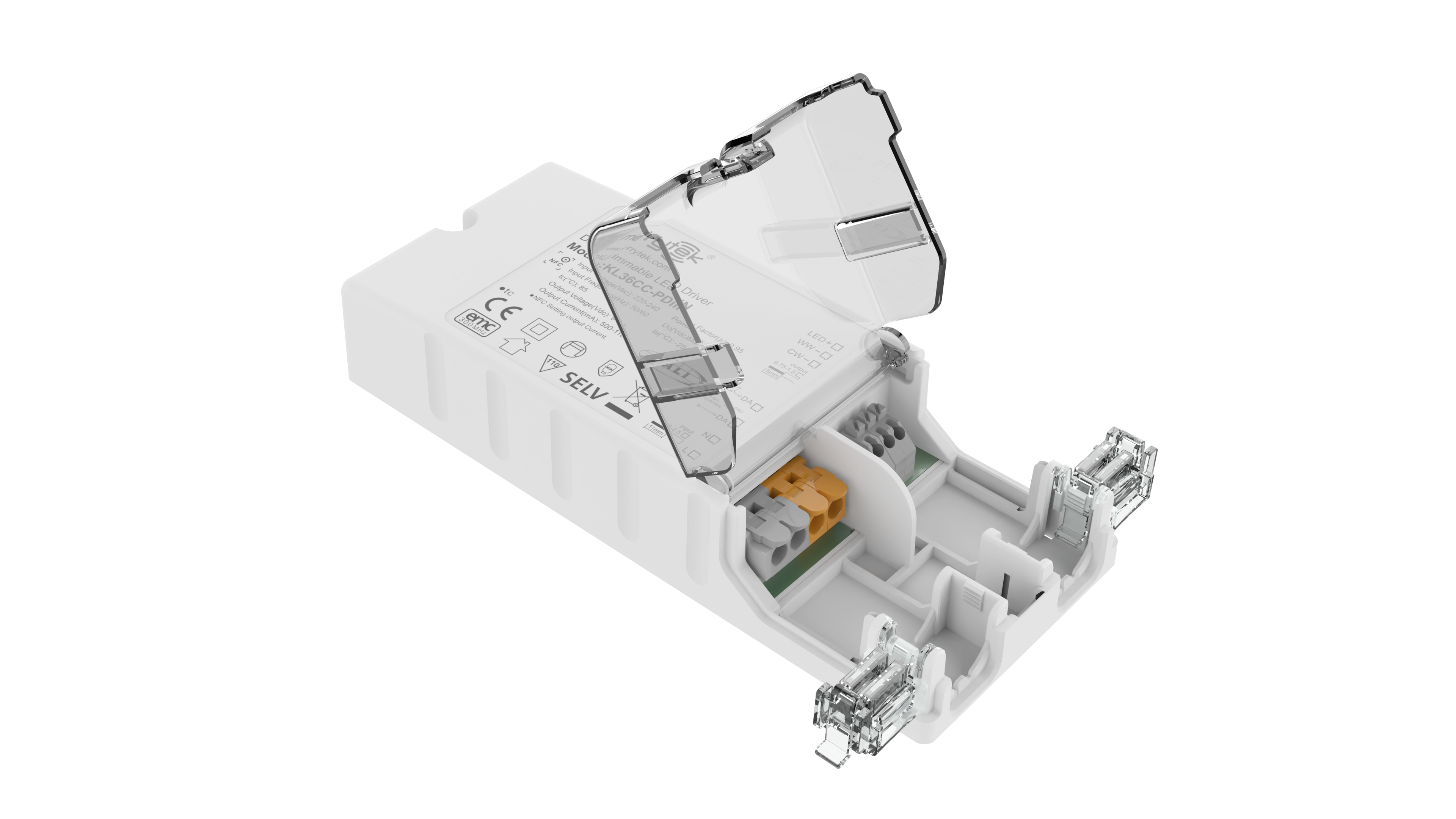

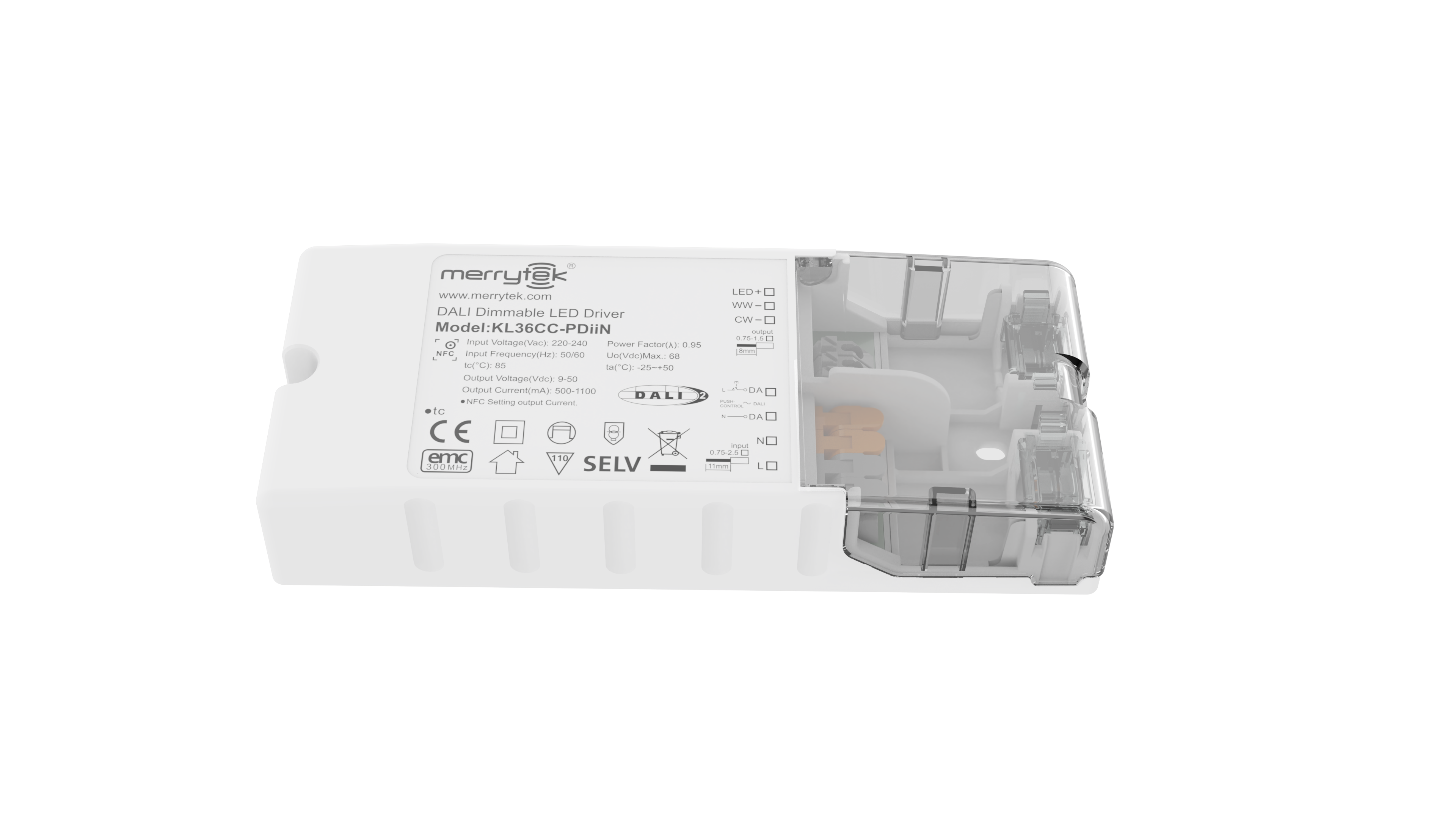

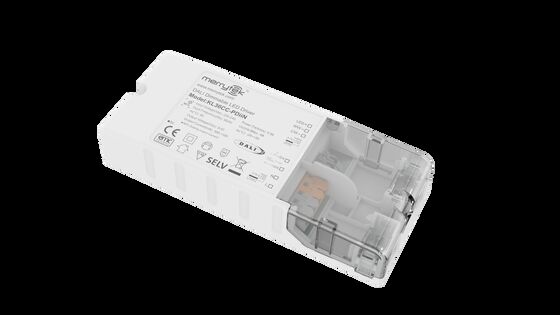

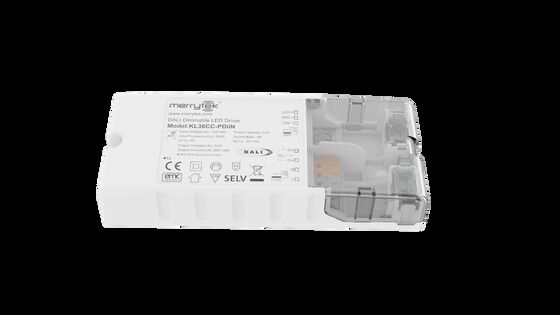

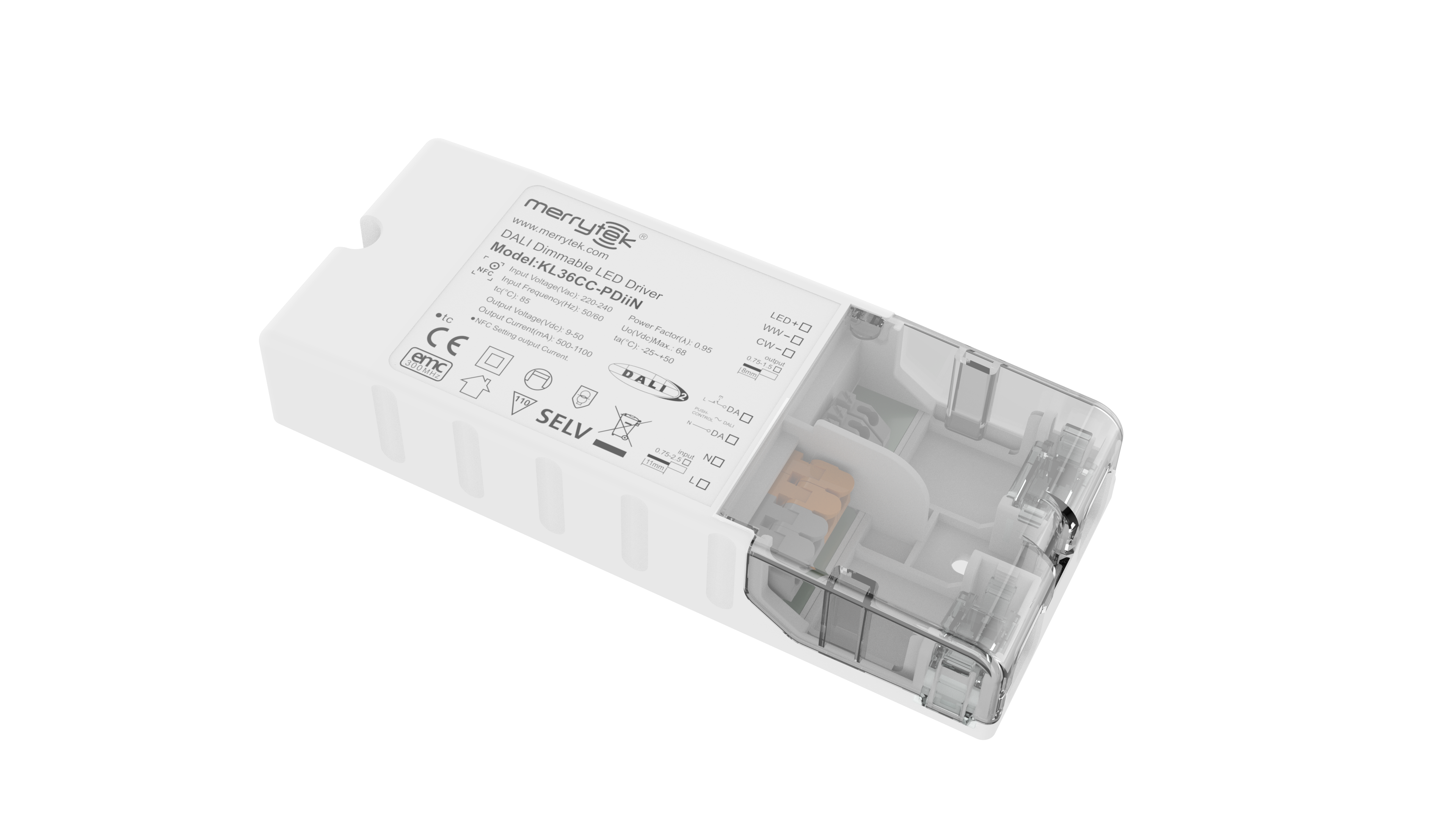

36W NFC programmable DALI DT8 LED driver constant current 500ma to 1100ma output
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | Merrytek |
| Certification | CE |
| Model Number | KL36CC-PDiiN |
| Minimum Order Quantity | 100pcs |
| Price | Negotiable |
| Packaging Details | white box+ Instructions Clapboard Outer Carton（K=A） |
| Delivery Time | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 4-5 weeks after receiving deposit. |
| Payment Terms | T/T |
| Supply Ability | 20,000pcs per month |
Product Details
| Operating Voltage | 220-240VAC 50Hz /60Hz | Power Factor | ≥0.95 @230VAC （Full Load） |
|---|---|---|---|
| Stand-by Power | ≤0.5W（@230Vac） | Efficiency | 88%Max. @230VAC （Full Load） |
| Operating Mode | DALI2 DT8 Dimming & PUSH Dimming | Installation Dimension | 154*63*28mm |
| Warranty | 5 Years | Output Constant Current | 500-1100mA |
| Highlight | 36W DALI DT8 LED driver,NFC programmable LED driver,constant current LED driver 500ma |
||
Product Description
36W NFC Programmable DALI DT8 LED Driver
Constant Current 500mA to 1100mA Output
Product Features
- Flicker-free for the whole dimming range
- Stand-by power below 0.5W
- Primary dimming with a push button
- NFC technology for wireless programming
- Built-in DALI interface DT8
- Centrally-supplied DC emergency operation DT19
- CLO compensation
- Protection: short circuit / over temperature / over voltage
- Derating the current for high ambient temperature
- Push dim with memory function
- 5-year warranty
Technical Parameters
Input Specifications
| Operating Voltage | 198-264Vac 50Hz/60Hz |
| Rated Input Voltage | 220-240Vac 50Hz/60Hz |
| DC Input Voltage Range | 200-240Vdc |
| Input Current | 0.19A Max. |
| Input Inrush Current | <15A (Half current pulse width 100μs) @230Vac |
| Power Factor (@230V 100% load) | ≥ 0.95 |
| Total Harmonic Distortion | Typical: 15% (@230Vac, 100% load) |
| Stand-by Power | ≤ 0.5W (@230Vac when DALI turns off) |
| Efficiency (@230Vac, 100% load) | 88% Max. |
| Wiring Method | Wire cross-section: 0.75-2.5mm² |
Output Specifications
| Operating Mode | Constant Current |
| Load Type | LED |
| Ripple Requirement | Flicker value: less than 5% for the whole dimming range |
| Start-up Time | <1s (@230Vac); <0.5s (@200Vdc) |
| No-load Output Voltage | 68 V DC Max. |
| Load Output Voltage Range | 9-50V DC |
| Full Load Output Power | 36W Max. |
| Load Output Current | 500-1100mA |
| Constant Current Precision | ±5% |
| Wiring Method | Wire cross-section: 0.75-1.5mm² |
Control Method
| Primary PUSH Dimming | Primary PUSH dimming (Max. lead wire length: 20m) |
| DALI Dimming | DALI dimming (Max. lead length: 300m) |
| Dimming Range | Primary PUSH & DALI dimming: 0%-100% |
Protection Requirements
| Output Over Temperature Protection | Yes, without self recovery function (Can be inquired) |
| Output Short Circuit Protection | Yes, with self recovery function (Can be inquired) |
Operating Environment
| Operating Temperature/Humidity | -25℃~50℃ Humidity: 85% (Non-condensing) |
| Storage Temperature/Humidity | -40℃~80℃, Humidity: 85% (Non-condensing) |
| Max. Case Temp (Tc) | 85℃ |
Safety & EMC
| EMC Standard | EN55015 EN61547 EN61000-3-2 EN61000-3-3 |
| DALI Protocol Standard | IEC62386-101 / 102 / 207 DT6 / 209 DT8 / 220 DT19 / 251 / 252 / 253 |
| Safety Standard | EN61347-1 EN61347-2-13 |
| Certification | CE, CB, ENEC |
| Withstand Voltage | 3750Vac, 5mA, 60s (Input "L N" - Output "SEC") |
Other Specifications
| Degrees of Protection | IP20 |
| Type of Protection | Class II |
| Installation Type | Independent installation |
| Dimension | 154×63×28mm |
| Blackout Memory Function | Yes, PUSH blackout memory |
| PUSH Dimming Synchronization | Parallel: 15 units Max. Series: 25 units Max. |
| Packaging Requirement | PE bag + kraft box + manual + partition + outer box (K=A) |
| Weight | 179.5±5g |
| Life | 5 year @Ta full load |
Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified.
Dimensions
Wiring Diagrams
Channel Mode: 1 address for 2 channel (209 DT8); 2 address for 2 channel (207 DT6); 1 address for 2 channels (207 DT6)
Fig A: PUSH Dimming (Parallel) | Fig B: PUSH Dimming (Series)
Fig C: DALI Dimming
Channel Mode: 1 address for 1 channel (207 DT6)
Fig D: PUSH Dimming (Parallel) | Fig E: PUSH Dimming (Series)
Fig F: DALI Dimming
Derating & Dimming Curves
Dimming Curve
Current Corresponding Voltage
| Current (mA) | Pomax (W) | Uout (V) |
|---|---|---|
| 500 | 25.0 | 9～50 |
| 550 | 27.5 | 9～50 |
| 600 | 30.0 | 9～50 |
| 650 | 32.5 | 9～50 |
| 700 | 35.0 | 9～50 |
| 750 | 36.0 | 9～48 |
| 800 | 36.0 | 9～45 |
| 850 | 35.7 | 9～42 |
| 900 | 36.0 | 9～40 |
| 950 | 36.1 | 9～38 |
| 1000 | 36.0 | 9～36 |
| 1050 | 35.7 | 9～34 |
| 1100 | 36.3 | 9～33 |
The typical current data sets are for reference when selecting LED fixture models. More current levels can be set by NFC using a mobile APP adjustable in 1mA steps.
Scan the code to download Merrytek NFC App
ON/OFF & Dimming Operation Description
- A. Short-press the PUSH switch (0.1s-1s) to turn the LED driver on or off.
- B. Dimming: Press and hold the PUSH switch (1s-8s) to achieve dimming or brightening, with a range of 2-100%.
- C. Color temperature adjustment: Turn off lights with PUSH, then press and hold to adjust color temperature from current brightness. Release and press again to adjust in opposite direction. No operation for 5 seconds exits color adjustment mode.
- D. Memory: PUSH dimming has dimming memory function.
- E. Dimming synchronization: Power supplies connected to the same PUSH switch can be synchronized by pressing and holding for longer than 15 seconds.
- F. DALI dimming mode: Connect to DALI system for dimming via DALI host with range of 0-100%.
Important Notes
- The LED driver must be connected to the load before turning on the input power; otherwise, the LED driver may be damaged.
- After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.
- Before setting parameters via NFC, please ensure the driver is powered off.
