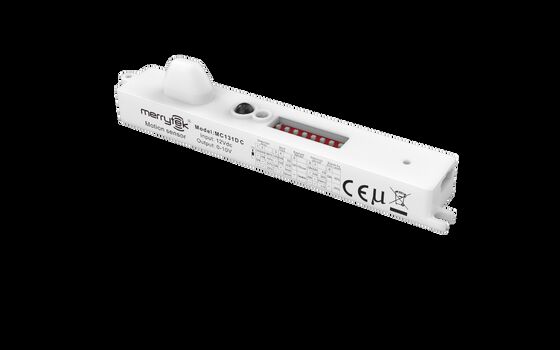

Tri-proof Light Super Thin Dimmable Motion Sensor With Corridor Function, Parking lot Use

  • Tri-proof Light Super Thin Dimmable Motion Sensor With Corridor Function, Parking lot Use
Place of Origin Shenzhen, China
Brand Name Merrytek
Certification CE
Model Number MC131D C, MC131D D
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Bubble bag + partition + outer box (K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 4-5 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 12 ± 1VDC Ripple Voltage < 100mVp-p
Working Frequency 5.8GHz ±75MHz, ISM Band Installation Height 3m ( 5m Max )
Working Temperature Built-in: -25~60℃ Lifetime 5 Years Warranty@Ta
Highlight

dimmable motion sensor tri-proof light

,

super thin motion sensor corridor function

,

parking lot dimmable motion sensor
Leave a Message
Product Description
Tri-proof Light Super Thin Dimmable Motion Sensor With Corridor Function, Parking lot Use
Product Features
  • Patented Mini Coupling DiPole Antenna
  • Long strip shell, miniature antenna design, no shading
  • Ultra-low RF power output, harmless to human health
  • Support remote control and DIP switch to adjust parameters
  • Low side wave, high adaptability to metal environment
  • Not affected by temperature, humidity, noise, airflow, dust, light and other environments
Technical Parameters
Input
Rated voltage 12 ± 1VDC
Working current MC131D C: 20±2mA
MC131D D: 16±2mA
Ripple voltage < 100mVp-p
Output
Output signal MC131D C: 0-10VDC dimming signal
MC131D D: PWM dimming signal
Daylight Sensor
Daylight sensor Daylight priority
Sensing Parameters
Working frequency 5.8GHz ±75MHz, ISM band
Transmit power 1mW Max.
Detection range (radius) Ceiling installation 3m high: r≥4m@0.3m/s, r≥2.5m@1m/s
Horizontal installation 2m high: r≥8m@0.3m/s, r≥4m@1m/s
Test conditions: product set to 100% sensitivity, no obvious occlusion in 60㎡ room
Installation height 3m (5m Max)
Environment
Working temperature Built-in: -25~60℃
Storage temperature -40℃…80℃, humidity ≤85% (non-condensing)
Certification Standards
Certified CE, RED (Pending)
Environmental requirements Comply with RoHS 2.0, Reach requirements
IP Rating IP20
Other Specifications
Wiring 3pin 2.0mm terminal
Installation requirements Built-in installation
Packaging requirements Bubble bag + partition + outer box (K=A)
Net weight 13.5±2g
Lifetime 5 Years Warranty
Model Selection
MC131D C MC131D D
0-10VDC dimming signal PWM dimming signal
Daylight priority
Function Description
Function MC131D C, MC131D D
ON/OFF function N/A
Two-step dimming function N/A
Three-step dimming function Stand-by Period be set to "5min/10min/30min"
Daylight harvesting N/A
Daylight priority Stand-by Period be set to "+∞"
Product Diagrams
Tri-proof Light Super Thin Dimmable Motion Sensor With Corridor Function, Parking lot Use 0
Dimensions
Tri-proof Light Super Thin Dimmable Motion Sensor With Corridor Function, Parking lot Use 1
Wiring & Function
Tri-proof Light Super Thin Dimmable Motion Sensor With Corridor Function, Parking lot Use 2
Installation Method
Tri-proof Light Super Thin Dimmable Motion Sensor With Corridor Function, Parking lot Use 3
Mounting Configuration
Tri-proof Light Super Thin Dimmable Motion Sensor With Corridor Function, Parking lot Use 4
Application Setup
Notice: When installing, please pay attention to the distance between the microwave antenna and the light board.
Default Settings
  • Sensitivity: 100%
  • Hold time: 5s
  • Daylight Sensor: Disable
  • Stand-by period: 15min
  • Stand-by Dim Level: 0%
Initialization Process

The sensor will turn on the light at 100% brightness for the first time, and turn it off after 10 seconds. During the initialization period, no external motion sensing signal will be detected.

Application Guidelines
  • The sensor should be installed by a professional electrician. Please cut off the power before installing, wiring, changing the setting of the DIP switch, etc.
  • Detection distance is affected by moving object speed, size, installation height, angle, environment openness, and reflector material. Specification values are typical for 165cm/65kg tester in open indoor environment.
  • Wall installation greatly increases detection distance compared to ceiling installation. Reduce sensitivity for wall installation or contact manufacturer for settings.
  • Sensor parameters may need reconfiguration in different installation environments - refer to instructions or contact manufacturer.
  • For indoor use only - outdoor conditions and surrounding moving objects may cause false triggering.
  • Maximum installation height: 6 meters (optimal: 3 meters). Minimum distance between sensors: 3 meters.
  • Metal environments may cause false triggering due to microwave reflection - reduce sensitivity or contact for technical support.
  • Avoid installation near moving signals like fans, DC motors, sewer pipes, air outlets to prevent false triggering.
  • Microwaves cannot penetrate metal - avoid closed/semi-closed metal lamps and metal/glass obstructions.
  • Performance may vary with different PWM/0-10V drivers.
  • Use DC regulated power supply with stable output voltage, low ripple coefficient (<100mV), and load current >25mA.
  • Product specifications and parameters subject to optimization without prior notice.
