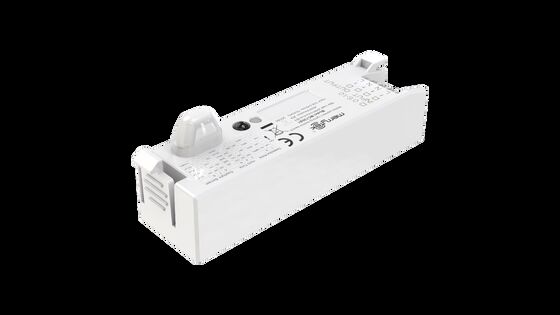

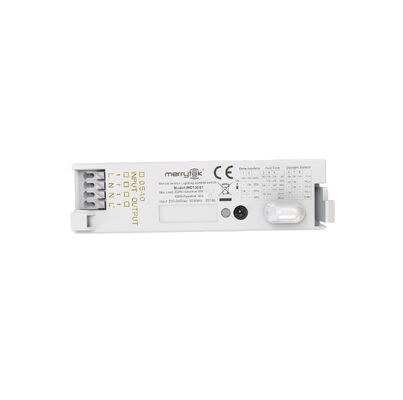

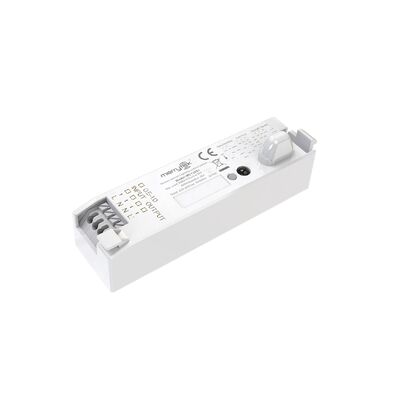

AC ON/OFF Motion Sensor, Available For Both Tri-proof Light And Ceiling Light

  • AC ON/OFF Motion Sensor, Available For Both Tri-proof Light And Ceiling Light
  • AC ON/OFF Motion Sensor, Available For Both Tri-proof Light And Ceiling Light
  • AC ON/OFF Motion Sensor, Available For Both Tri-proof Light And Ceiling Light
  • AC ON/OFF Motion Sensor, Available For Both Tri-proof Light And Ceiling Light
  • AC ON/OFF Motion Sensor, Available For Both Tri-proof Light And Ceiling Light
Place of Origin Shenzhen, China
Brand Name Merrytek
Certification CE, RED, UKCA, SAA, CB
Model Number MC130S 1
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Bubble bag + Clapboard + Carton(K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 4-5 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 220-240VAC 50/60Hz Stand-by Power ≤0.5W
Output Control ON-OFF Load Capacity 200W(Inductive/LED) ; 400W(Resistive)
Operating Frequency 5.8 GHz ±75MHz, ISM Wave Band. Lifetime 5 Years Warranty @Ta
Highlight

AC motion sensor for tri-proof light

,

on/off motion sensor ceiling light

,

AC motion sensor with on/off function
Leave a Message
Product Description
AC ON/OFF Motion Sensor for Tri-proof and Ceiling Lights
Product Features
  • Patented Mini Coupling DiPole Antenna designed for ceiling lights
  • Suitable for built-in metal LED trays without false triggering
  • Compact size that doesn't affect light distribution
  • Low sidelobe performance prevents false triggers in metal reflection spaces
  • Low transmitting power ensures no harm to humans
  • Sensor data configurable via DIP switch and remote control
  • Unaffected by temperature, humidity, noise, dust, and other environmental factors
Technical Parameters
Input
Rated Voltage 220-240VAC 50/60Hz
Stand-by Power ≤0.5W
Surge Test L--N: 1kV
Output
Output Control ON-OFF
Load Capacity 200W (Inductive/LED); 400W (Resistive)
Max. Surge Capacity 10A relay: 30A (50% Ipeak, twidth =200us, 230Vac full load, cold start)
Sensor Parameters
Operating Frequency 5.8 GHz ±75MHz, ISM wave band
Transmitting Power 1mW Max.
Detecting Radius r≥3m (ceiling mounting), r≥8m (wall mounting)
Motion speed: 1m/s, 100% sensitivity, 165cm person
Mounting Height 2.5-5m (ceiling mounting), 2-3m (wall mounting)
Environment
Operating Temperature -25°C to 60°C
Storage Temperature -40°C to 80°C, Humidity: ≤85% (Non-condensing)
Certifications & Standards
Certificates CE, RED, UKCA, SAA, CB
Environmental Requirements Compliant to RoHS 2.0, Reach
IP Rating IP20
Other Specifications
Wiring Press-in type terminal block, wiring 0.5-0.75mm²
Installation Built-in
Package Bubble bag + Clapboard + Carton (K=A)
Net Weight 36g ±3g
Lifetime 5 years warranty
Function Description
Function Description
ON-OFF Function When daylight sensor is set to "disable" or ambient brightness is lower than preset value, sensor activates upon detecting movement and turns light on. Light turns off when hold time ends.
2-step Dimming N/A
3-step Dimming N/A
Daylight Harvesting N/A
Daylight Priority N/A
Product Information
Dimension Diagrams:
AC ON/OFF Motion Sensor, Available For Both Tri-proof Light And Ceiling Light 0 AC ON/OFF Motion Sensor, Available For Both Tri-proof Light And Ceiling Light 1
The sensor is designed to connect one load only. Connecting more than one load may damage the sensor.

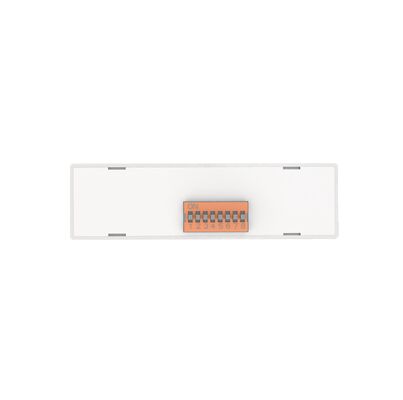

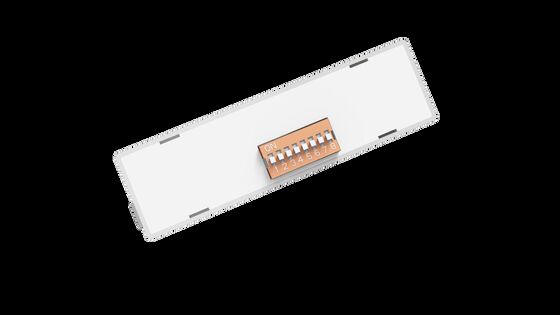

DIP Switch Setting
DIP switch configuration diagram
Initialization
After power on, the sensor automatically turns on light to 100% brightness and turns off light in 10 seconds. During initialization, sensor is not able to detect movement.
Default Settings
Sensitivity: 100%, Hold time: 5s, Daylight sensor: Disable
Application Notice
  • Sensor should be installed by a professional electrician. Please turn off power before installing, wiring, or setting the DIP switches.
  • Microwaves cannot penetrate metal. Do not place product in a closed or half-closed metal lamp. Neither metal nor glass is allowed to cover above the product. If antenna needs to pass through metal plate, ensure the top of sensor is close to the metal plate.
  • Sensitivity area is related to moving speed of objects, size of moving objects, mounting height, mounting angle, working environment, and reflecting materials. Given detecting area is typical value measured by 165cm high testers in indoor open environment.
  • The daylight thresholds are measured on a sunny day without shadow in ambient light diffuse reflection status. Different environments and climates cause different brightness values.
  • The installation spacing between sensors is recommended to be greater than 2m, and the installation spacing between sensors and routers is recommended to be greater than 2m.
  • Sensor should not be covered or hidden by metal, PCB, LED tray, etc. The spacing between sensor antenna and surrounding materials should be greater than 5mm. There should be no metal or PCB tracks near the sensor antenna. Recommended cover thickness is 2mm, with spacing between sensor antenna and cover greater than 3.2mm.
  • Vibration signals will be regarded as moving signals to trigger sensor. Install sensor away from objects that vibrate for long periods, such as large metal equipment, pipes, air conditioning outlets, exhaust vents, smoke exhaust machine ports, and shaking fans. Pets in detecting area may cause false triggers.
  • The antenna surface of microwave module should be away from input AC, output DC, rectifier bridge, transformer, switch tube and other high-power devices to avoid high frequency signals affecting normal operation.
  • Sensor is for indoor use only. The waterproof effect for outdoor or half-outdoor use will be affected. Wind, rain, and moving objects may cause false triggering.
