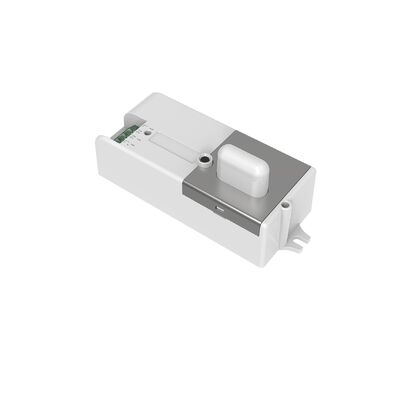

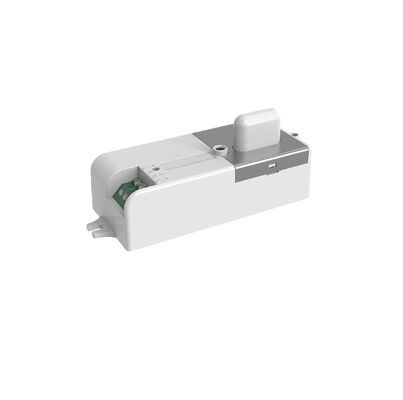

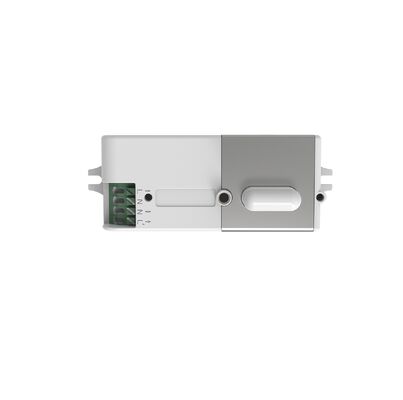

Anti-interference Trip-proof Light ON/OFF Motion Sensor, Support Front Dip Switch And Remote Configuration

• Low Impedance sensor antenna patent helps anti-interference kinds of wireless signal like 5G, Wi-Fi, Bluetooth etc.
• Patented dipole antenna design brings reliable detecting, avoid false trigger when sensor built-in backside of metal LED plate.
• Comply with RED approval.
• Non-isolated switching power supply, will not affect the PF value of the whole lamp, in accordance with the latest ERP.
• Adjustable detecting sensitivity via DIP switches, suitable to variety of installation sites.
• Ultra-slim design for Tri-proof LED light
• Support 6m Max. Mounting height
• Dialing code and remote control are both supported for parameters setting.
• 5 years warranty

Power off, quick switch ON/OFF sensor 3 times (ON-OFF-ON-OFF-ON) within 2sec to override sensor function. Lights will blink 3 times and then switch ON all the time. Power off and on again to recover sensor function.

After power on, the sensor automatically turns on light at 100% brightness. After 10sec, it turns off the light. During the initialization, the sensor is not able to detect movement.

Detection area: 100%, Hold Time: 5S, Daylight Sensor: Disable

• The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switch.
• The sensor which installed in the plastic and glass lampshade will reduce the sensitivity. For every 3mm increase in thickness, the sensitivity will be reduced by 20%.
• The light sensitivity threshold is in a sunny environment, no shadow and ambient light diffuse reflection. Ambient lux level will be different in different environment, weather, climate, time-of-day and season.
• The parameters of the sensor may need to be reconfigured in different installation environments.
• This sensor is for indoor use only. It will affect the waterproof effect for outdoor use. Wind, rain, and moving objects around will cause false triggering.
• The distance between any inductive sensors should be greater than 3m.
• Do not place the sensor close to high-density objects such as metal, glass, concrete walls, etc, false triggering could happen. When the sensor is installed in a metal lamp, metal reflective surface, or a narrow enclosed environment, the microwave will be reflected repeatedly and cause false triggering. Please reduce the sensitivity or contact the manufacturer for technical support.
• Please ensure that there are no moving signals around the sensor, such as fan, DC motor, sewer pipe, air outlet, etc., the sensor may generate false trigger.
• You are advised to test 5 samples before mass application of sensor in a new lighting project.
• Due to continuous improvement, the contents of this instruction could be changed without prior notice.
• If the sensor is built under metal board, make sure the sensor surface should to be seamless close to the metal plate without space.
