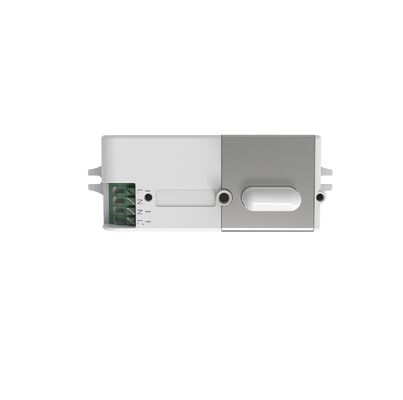

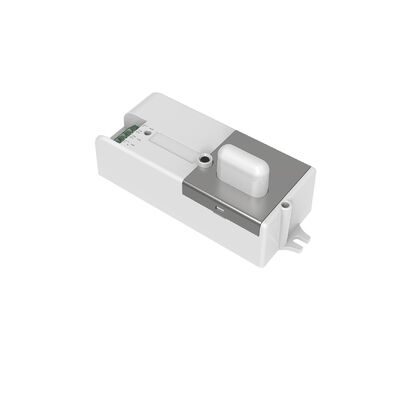

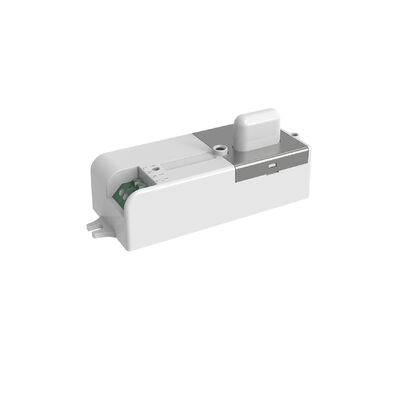

Dip Switch Design Compact ON/OFF Motion Sensor For Ceiling Light And Tri-proof Light

  • Dip Switch Design Compact ON/OFF Motion Sensor For Ceiling Light And Tri-proof Light
  • Dip Switch Design Compact ON/OFF Motion Sensor For Ceiling Light And Tri-proof Light
  • Dip Switch Design Compact ON/OFF Motion Sensor For Ceiling Light And Tri-proof Light
Place of Origin Shenzhen, China
Brand Name Merrytek
Certification CE, RED
Model Number MC098S 1
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Bubble bag+Clapboard + Carton(K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 4-5 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 220-240Vac 50/60Hz Stand-by Power ≤0.5W
Output Signal ON/OFF Working Frequency 5.8 GHz ±75MHz, ISM Wave Band
Mounting Height 3m (6m Max) Lifetime 5 Years Warranty@Ta
Highlight

compact ON/OFF motion sensor

,

dip switch ceiling light sensor

,

tri-proof light motion sensor
Leave a Message
Product Description
Dip Switch Design Compact ON/OFF Motion Sensor For Ceiling Light And Tri-proof Light
Product Features
  • Low impedance microwave antenna, effectively resists interference from 5G, WiFi, Bluetooth and other wireless signals
  • Patented di-pole antenna with strong environmental adaptability and no detection blind area
  • Batch production complies with RED certification, ensuring entire lamp certification
  • Dip switch design for easy parameter configuration according to user needs
  • Long strip shell design suitable for tri-proof lights and ceiling lamps
  • Maximum installation height of 6 meters
  • 5 years warranty
Technical Parameters
Input
Rated Voltage 220-240Vac 50/60Hz
Stand-by Power ≤0.5W
Surge Test 1KV(L/N,EN61000-4-5)
Output
Output Signal ON/OFF
Type of Load Inductive or Resistive
Load Capacity 400W@230Vac(Inductive); 800W@230Vac(Resistive)
Max. Surge Capacity 7A relay 50A(50% Ipeak, twidth =200uS, 230Vac full load, cold start)
Sensor Parameters
Working Frequency 5.8 GHz ±75MHz, ISM wave band
Transmitting Power 1mW Max.
Detection Area (Radius) Ceiling mounting height 3m: r≥4m@0.3m/s, r≥2.5m@1m/s; Wall mounting height 3m: r≥5m@0.3m/s, r≥4m@1m/s (Test condition: Set 100% sensitivity, open 60㎡ indoor area)
Mounting Height 3m (6m Max)
Hold time 5s/30s/90s/5min/20min/30min (Dial code)
Detection Area 100%/75%/50%/25%(Dial code)
Daylight Sensor Normal Daylight: 2Lux/10Lux/30Lux/50Lux/Disable(Dial code)
Operating Temperature -25℃…+60℃
Storage Temperature -40~80℃ Humidity: ≤85% non-condensing
Certificate Standards
Certified CE, RED
Environmental Requirements Comply with RoHS 2.0 Reach
IP Rating IP20
Other Specifications
Remote Model MH10; MH16; MH03
Wiring Press-in Type Terminals, wire diameter: 0.5-0.75mm²
Installation Built-in
Package Bubble bag + Clapboard + Carton(K=A)
Net Weight 38 ±2g
Lifetime 5 years warranty@Ta
Function Description
Function Description
ON/OFF function Light control Disable or external brightness value is lower than the set value. When the microwave sensors detects the movement of an object, the sensor triggers and enters the light-on state. It maintains the light-on state after a delay and then enters the light-off state.
Two-step dimming function N/A
Three-step dimming function N/A
Daylight harvesting N/A
Daylight priority N/A
Product Information
Dimensions: Please refer to product documentation for detailed measurements (units: mm)
Dip Switch Configuration Guide:
The product features comprehensive dip switch controls for Detection Area, Hold Time, and Daylight Sensor settings. Refer to the product manual for detailed configuration tables and setup instructions.
Initialization & Default Settings
Initialization: The light will be turned on to 100% brightness after power on, and will be turned off after 10 seconds. During initialization, no external motion sensing signals will be detected.
Default Settings: Sensitivity: 100% | Hold time: 5s | Daylight sensor: Disable
Application Notice
  • The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring, or changing DIP switch settings
  • Sensitivity area is affected by moving speed of objects, object size, mounting height, mounting angle, working environment, and reflecting materials
  • Detection area increases significantly when installed on walls compared to ceiling mounting. Reduce sensitivity or contact manufacturer for wall installation settings
  • Sensor parameters may need reconfiguration in different installation environments - refer to instructions or contact manufacturer
  • For indoor use only. Outdoor or half-outdoor use affects waterproof performance. Wind, rain, and moving objects may cause false triggering
  • Maximum installation height: 6 meters (optimal: 3 meters). Distance between sensors should be greater than 3m
Important Installation Notes:
When installed in metal lamps, on metal reflective surfaces, or in small closed environments, microwave reflection may cause false triggering. Reduce sensitivity or contact manufacturer for technical support. Ensure no moving signals (fans, DC motors, sewer pipes, air outlets) are nearby. Microwaves cannot penetrate metal - do not place in closed or half-closed metal lamps. Metal or glass coverings are not permitted above the product.
