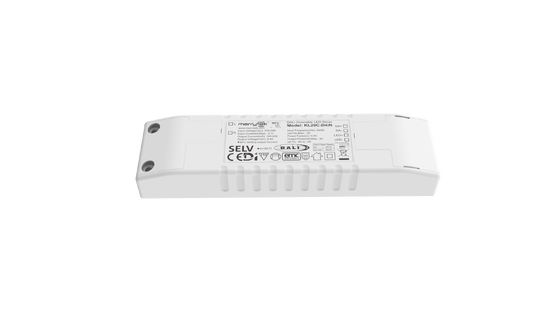

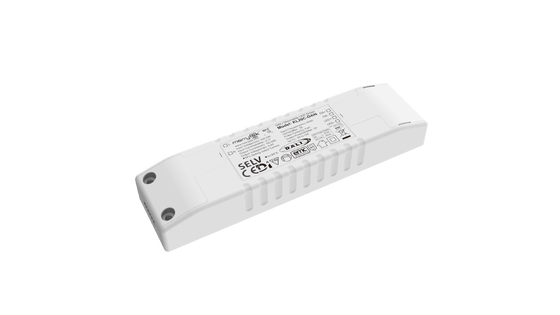

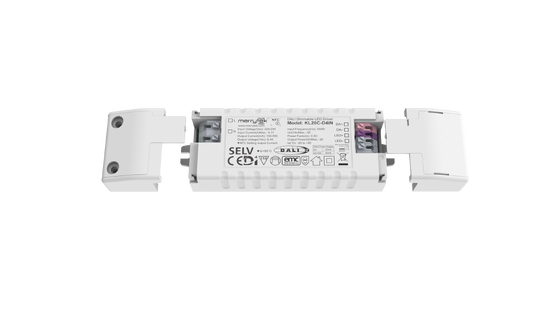

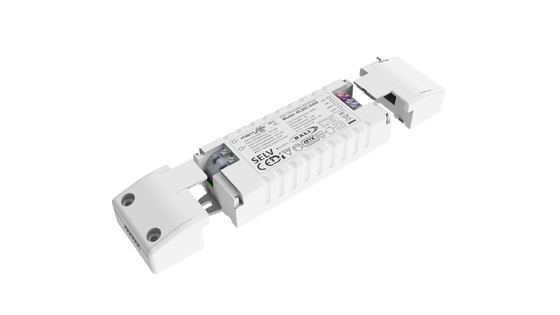

20W 100mA to 550mA D4i NFC Programmable Constant Current Driver with 5-year warranty period
| Place of Origin | China |
|---|---|
| Brand Name | Merrytek |
| Certification | CE |
| Model Number | KL20C-D4iN |
| Minimum Order Quantity | 100 |
| Price | Negotiation |
| Packaging Details | White box + Carton, 50pcs/CTN |
| Delivery Time | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
| Payment Terms | T/T or PayPal |
| Supply Ability | 10,000pcs per month |
Product Details
| Rated Input Voltage | 220-240Vac 50Hz /60Hz | DC Input Voltage Range | 200-240Vdc |
|---|---|---|---|
| Operating Mode | 20W D4i NFC Programmable Constant Current Driver | Control Method | DALI-2 D4i Driver |
| Power Factor | ≥0.9 | Efficiency | 84% |
| Current | 100-550mA | Dimension | 146.3x38x20.5mm |
| IP Rating | IP20 | Warranty | 5 Years |
Product Description
20W 100mA to 550mA D4i NFC Programmable Constant Current Driver with 5-year warranty period
1. Description
-Flicker-free for the whole dimming range
-NFC technology for wireless programming
-Stand-by power below 0.5W
-Built-in DALI interface D4i
-Centrally-supplied DC emergency operation DT19
-CLO compensation
-Protection: short circuit / over temperature/ over voltage
-CLO compensation
-Derating the current for high ambient temperature
-5-year warranty
2. Parameters
| Input | Operating Voltage | 198-264Vac 50Hz/60Hz | ||||||
| Rated Input Voltage | 220-240Vac 50Hz/60Hz | |||||||
| DC Input Voltage range | 200-240Vdc | |||||||
| Input Current | 0.11A Max. | |||||||
| Input Inrush Current | <10A (Half current pulse width100μs) @230Vac | |||||||
| Power factor(@230V100% load) | ≥0.9C | |||||||
| Total harmonic distortion | Typical: 20% (@230Vac, 100% load) | |||||||
| Stand-by power | ≤0.5W (@230Vac when DALI turns off) | |||||||
| Efficiency(@230Vac,100% load) | 84% Max. | |||||||
| Wiring Method | Wire cross section: 0.5-1.5mm2 | |||||||
|
Automatic circuit breaker (Calculate current in the wire) |
type | B10 | B13 | B16 | B20 | B25 | / | |
| Number | 25 | 35 | 45 | 55 | 65 | / | ||
| type | C10 | C13 | C16 | C20 | C25 | C32 | ||
| Number | 60 | 70 | 80 | 110 | 130 | 160 | ||
| Output | Operating mode | Constant Current | ||||||
| Load type | LED | |||||||
| Ripple requirement (Flickering or Flickering-Free) | Flicker value: less than 5% for the whole dimming range | |||||||
| Start-up time | <1s (@230Vac) | |||||||
| No-load output voltage | 55VDC Max. | |||||||
| Load output voltage range | 9-43V DC | |||||||
| Full load output power | 420W Max. | |||||||
| Load output current | 100-550mA | |||||||
| Constant current/voltage Precision | Constant Current Precision ±5% | |||||||
| Wiring method | Wire cross section: 0.5-1.5mm2 | |||||||
| Control Method | Output auxiliary power port | 18Vdc, 100mA |
| DALI Dimming | DALI dimming (Max. lead length:300m) | |
| DALI Power Supply | lps 55mA (60mA Max.) | |
| DALI Power Supply Load | 10 units Max. | |
| Dimming range | DALI dimming: 2%-100% | |
| Exception Protection Requirements | Output over temperature protection |
Yes, without a self-recovery function(Can be inquired) |
| Output short circuit protection | Yes, without a self-recovery function(Can be inquired) | |
|
Operating Environment |
Operating temperature/ humidity | -25℃~50℃ Humidity: 85% (Non-condensing) |
| Storage temperature/ humidity | -40℃~80℃, Humidity: 85% (Non-condensing) | |
| Max. case temp(Tc) | 85℃ | |
|
Safety & EMC |
EMC standard | EN55015 EN61547 EN61000-3-2 EN61000-3-3 |
| DALI protocol standard | IEC62386-101 / 102 / 207 DT6 / 220 DT19 / 250 / 251 / 252 / 253 | |
| Safety standard | EN61347-1 EN61347-2-13 | |
| Certification | CE | |
| Withstand voltage | 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”) | |
| Others | Degrees of protection | IP20 |
| Type of protection | Class II | |
| Installation type | Independent installation or Built-in installation | |
| Dimension (Independent installation) | 146.3*38*20.5mm | |
| Dimension (Built-in installation) | 96*38*20.5mm | |
| Packaging requirement | white box + manual + partition + outer box (K=K) | |
| Weight | 120±5g | |
| Life | 5 year @Ta full load | |
| Note: All parameters are tested at the input voltage of 230VAC and 25-degree environment unless specified. | ||
3. Dimension (Unit: mm)
4. Wiring Diagram
5. Derating
6. Dimming curve
7. Current gear setting
The typical current data sets are for reference when selecting LED fixture models. More current levels can be set by NFC using a mobile APP adjustable in 1mA steps.
8. ON/OFF & Description of Dimming Operation
DALI dimming mode: Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 2-100%.
9. The matters needing Attention
1) The LED driver must be connected to the load before turning on the input power, otherwise the LED driver may be damaged.
2) After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.
3) Before setting the parameters by NFC, please make sure the driver is powered off.
