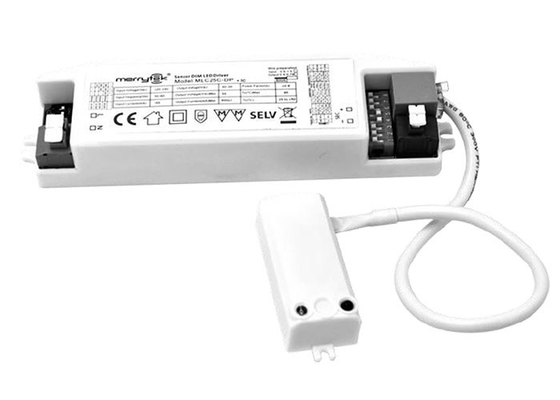

Integrated Dimmable Motion Sensor 16W Max Full Load Output Power IP20 Protection
| Place of Origin | China |
|---|---|
| Brand Name | Merrytek |
| Certification | CE |
| Model Number | MLC25C-PD |
| Minimum Order Quantity | 100pcs |
| Price | Negotiation |
| Packaging Details | Packed in bubble bag firstly, and then reinforced with carton for outer packing |
| Delivery Time | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
| Payment Terms | T/T or Western Union or PayPal |
| Supply Ability | 10,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Operating Voltage Range | 198-264V AC 50Hz/60Hz | Rated Voltage | 220-240V AC 50Hz/60Hz |
|---|---|---|---|
| Input Current | ≤0.17A (230VAC@ Full Load) | Power Factor | ≥0.9(230VAC@ Full Load) |
| No-load Power | ≤1W | Stand-by Power | ≤1W |
| Working Efficiency | 85% Max. (@230V AC Full Load) | Surge Test | L N: 1KV |
| Protection Class | IP20 | Approvals | CE |
| Installation Dimension | 136*35*21mm | Package | Bubble Bags+ Clapboard +Outer Carton (K=A) |
| Highlight | high frequency sensor,motion detection sensor,Dimmable Motion Sensor IP20 |
||
Product Description
With night/ light function,daylight priority control
over the motion sensor.
Turn off/ turn on the power supply for 3 times
continuously to override sensor function.
Output current can be selected
