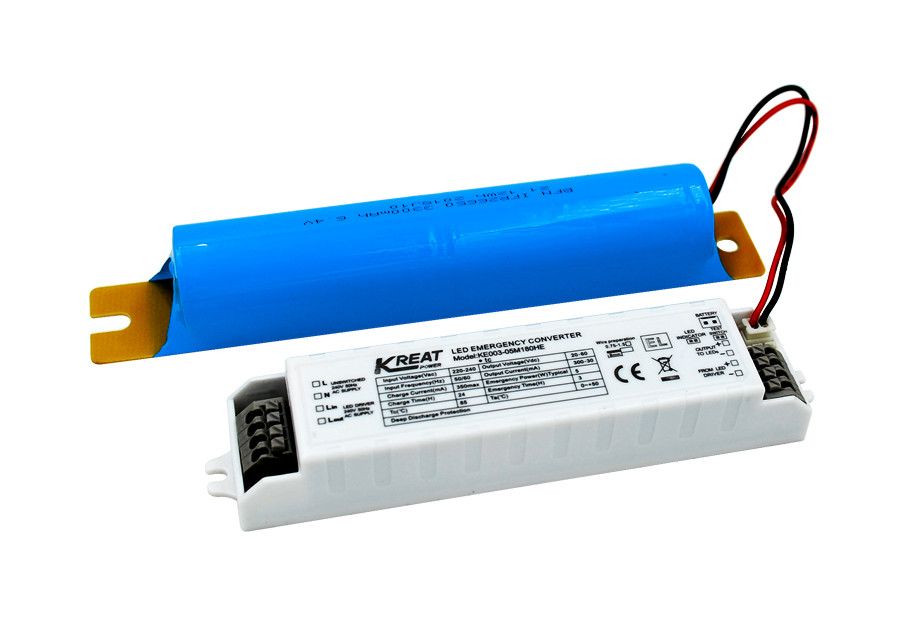

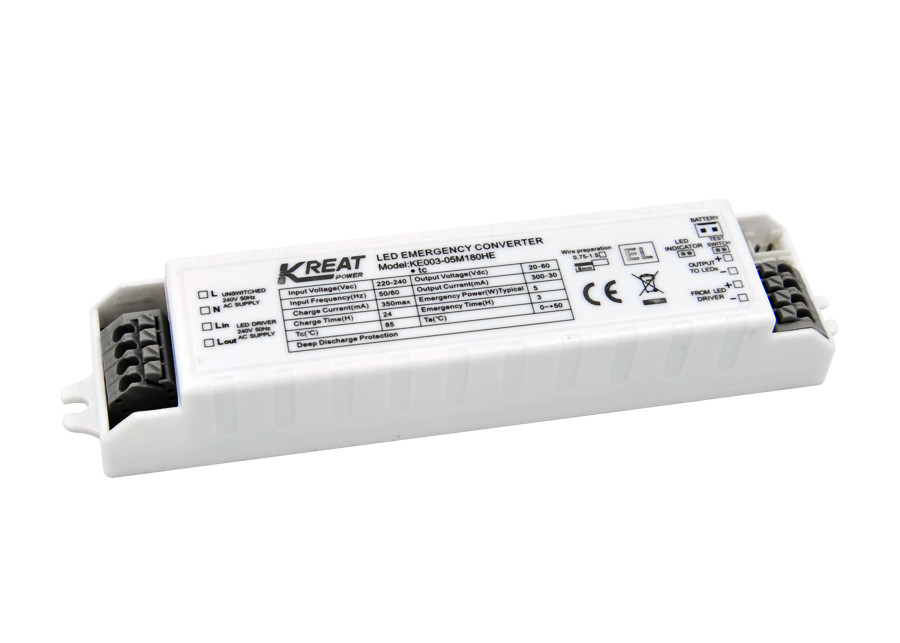

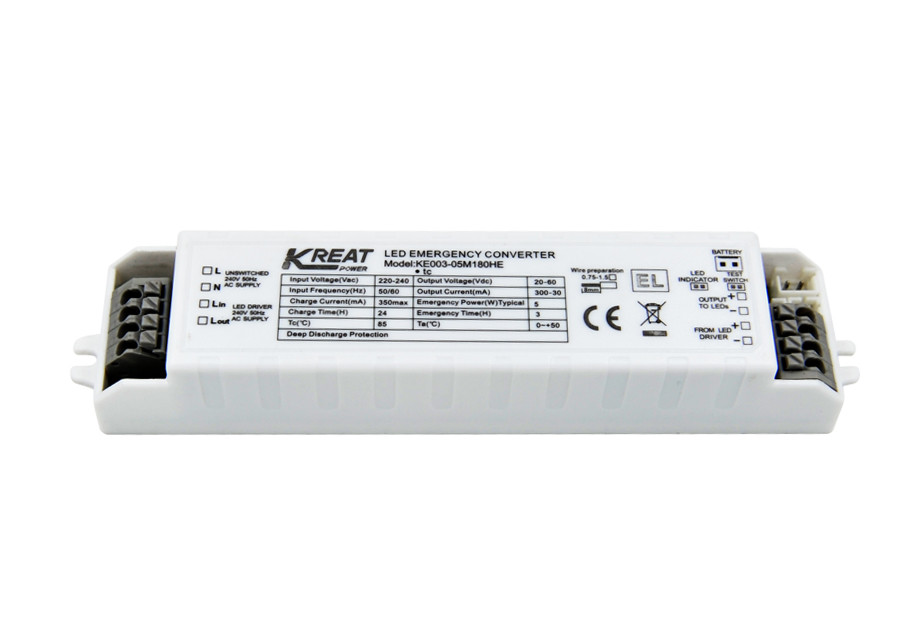

LiFePO4 battery packed LED Emergency Driver Power 5W Emergency Time 3h

  • LiFePO4 battery packed LED Emergency Driver Power 5W Emergency Time 3h
  • LiFePO4 battery packed LED Emergency Driver Power 5W Emergency Time 3h
  • LiFePO4 battery packed LED Emergency Driver Power 5W Emergency Time 3h
Place of Origin China
Brand Name Kreat Power
Certification CE, UN38.3, MSDS
Model Number KE003-05M180HE
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details Packed in bubble bags firstly, amd then reinforced with carton for outer packing
Delivery Time within 5 working days for sample and small order; within 3-4 weeks for bulk order
Payment Terms T/T, Western Union
Supply Ability 10,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Emergency Power 5W @Battery Voltage7.0V Emergency Time 3 Hours
Battery LiFePO4: 6.4V 3300mAh Load Output Voltage 20-60Vdc
Battery Installation External LED Indication Green
IP Rating IP20
High Light

led emergency converter

,

led emergency backup driver

,

LED emergency power supply 5W
Leave a Message
Product Description

LiFePO4 battery packed LED Emergency Driver Power 5W Emergency Time 3h







1. Features



--Constant power output LED emergency power supply, 5W emergency power, and wide output voltage range.



--Multiple protection functions: short-circuit protection, battery overcharge and deep discharge protection.







2. Parameters



Charge Part Input Voltage range 198-264V AC 50Hz/60Hz
Rated input voltage 220-240V AC 50Hz/60Hz
Rated input current 0.06A Max.@230V AC
Battery charging current 260mA MAX
Battery charging time 24 hours MAX.
Emergency Part Operating mode Emergency
Load type LED
Emergency power 5W @Battery voltage7.0V
Emergency time 3 hours (Temperature:50℃)
Load output voltage 20-60V DC
Battery Specification LiFePO4: 6.4V 3300mAh
Exception Protection Requirements Input current 1A MAX
Output current 1.5A MAX
LED Indication Charging The green light turns on
Fault The green light switch off
Emergency function test Manual test Yes
Abnormal protection requirements Output overvoltage protection Yes
Output overload protection Yes
Output short circuit protection Yes

Operating

Environment

 Operating temperature/humidity

0℃~50℃ humidity:0-75% (without condensation)
Storage temperature/humidity -5℃~+35℃ humidity: 0-75%
Case Max. temp(Tc) 85℃

Safety

& EMC



 Withstand voltage 3750V AC 5mA 60S(Input “L N” – output “SEC+ SEC-)
EMC standard EN55015, EN61547
Safety standard EN61347-1, EN61347-2-7, EN60598 , IEC60598-2-22, BS5266, EN62034
Certification CE RoHS
Others Degrees of protection IP20
Type of protection Class 2
Wiring Method Press Terminal, wire diameter:0.75-1.5mm2
Installation type Built-in installation
Installation dimension 150*30*22MM
Packaging requirement White-box+ specification+ clapboard +outer carton(K=A)
Weight 275g(Include battery)
Lifespan 30000h @ta full load

Noted:

All parameters are tested on the input voltage 230Vac, environment temperature 25℃, unless otherwise specified.




3. Dimension (Unit:mm)



LiFePO4 battery packed LED Emergency Driver Power 5W Emergency Time 3h 0

4. Wiring Diagram



1) Connect to external drive mode:

LiFePO4 battery packed LED Emergency Driver Power 5W Emergency Time 3h 1



2) Without external drive mode:



LiFePO4 battery packed LED Emergency Driver Power 5W Emergency Time 3h 2



5. Screen printing shell



LiFePO4 battery packed LED Emergency Driver Power 5W Emergency Time 3h 3
