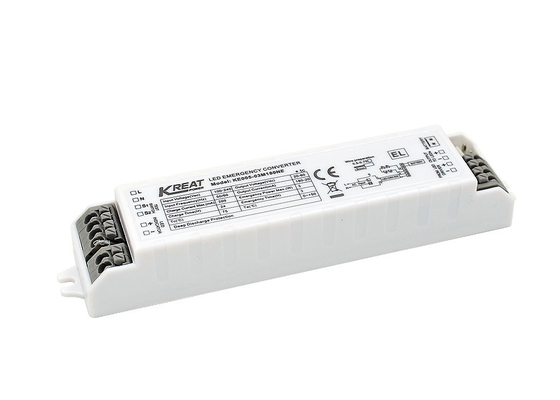

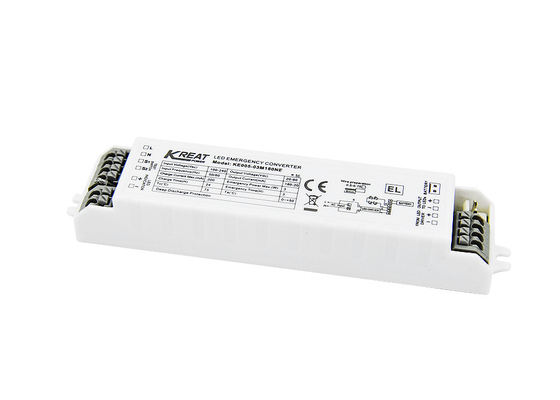

LED Emergency Driver Power 3W Emergency Time 3h & External NiCd Battery KE005-03M180NE
| Place of Origin | China |
|---|---|
| Brand Name | Kreat Power |
| Certification | CE |
| Model Number | KE005-03M180NE |
| Minimum Order Quantity | 100pcs |
| Price | Negotiation |
| Packaging Details | Packed in bubble bags firstly, amd then reinforced with carton for outer packing |
| Delivery Time | within 5 working days for sample and small order; within 3-4 weeks for bulk order |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10,000pcs per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Emergency Power | 3W | Emergency Time | 3 Hours |
|---|---|---|---|
| Battery | NiCd: 6V 2000mAh | Load Output Voltage | 20-60Vdc |
| Highlight | dimmable led driver,led emergency backup driver,NiCd Battery LED Emergency Driver |
||
Product Description
LED Emergency Driver Power 3W Emergency Time 3h & External NiCd Battery KE005-03M180NE
1. Features
--Economical constant power output LED emergency power supply,wide output range.
--Multiple protection function: short-circuit protection, battery over charge and deep discharge protection
2. Parameters
| Charge Part | Input voltage range | 200-264V AC 50Hz /60Hz |
| Rated input voltage | 220-240V AC 50Hz /60Hz | |
| Rated input current | 0.06A Max. 230V AC | |
| Battery charging current | 200mA Max. | |
| Battery charging time | 24 hours MAX. | |
| Emergency Part | Operating mode | Emergency |
| Load type | LED | |
| Emergency power | 3W | |
| Emergency time | 3 hours (Temperature:50℃) | |
| Load output voltage | 20-60V DC | |
| Battery | Specification | NiCd: 6V 2000mAh |
| Exception Protection Requirements | Input current | N/A |
| Output current | 1 A Max. | |
| LED Indication | Charging | The green light turns on |
| Fault | The green light switches off | |
| Emergency Function Test | Manual test | Yes |
| Abnormal Protection Requirements | Output over-voltage protection | Yes |
| Output overload protection | Yes | |
| Output short circuit protection | Yes | |
|
Operating |
Operating temperature/humidity | 0℃~50℃ |
| Storage temperature/humidity | -20℃~40℃, humidity:20%-60%(without condensation) | |
| Case Max. temp(Tc) | 75℃ | |
|
Safety
|
Withstand voltage | 3750V AC 5mA 60S(Input “L N” – output “SEC+ SEC-) |
| EMC standard | EN55015, EN61547,EN6100 | |
| Safety standard | EN61347-2-7, EN61347-2-13 | |
| Certification | CE, RoHS | |
| Others | IP rating | IP20 |
| Type of protection | Class 2 | |
| Wiring method | Press terminal, wire diameter:0.5-0.75mm2 | |
| Installation type | Built-in installation | |
| Installation dimension | 146*30*22.5mm | |
| Packaging requirement | White-box+ clapboard +outer carton(K=A) | |
| Weight | 60g(Driver), 256g(Battery) | |
| Lifespan | 30000h @ta full load | |
|
Noted: All parameters are tested on the input voltage 230Vac,environment temperature 25℃,unless otherwise specified. |
||
3. Dimension (Unit:mm)
4. Wiring Diagram
5. Wire Preparation
1)Solid or Stranded wire type 0.5 - 0.75mm2
2)To make or release the wire from the terminal, use a screwdriver to push down the button.
6. Label
7. Battery Type/Size
8. Manual Test & Operation Instructions
1) Connect the wire according to image 2.
2) L,N power on, switch on S1. Then the load lamp turns on, the emergency driver indicator light will turns green, emergency power supply normal charging. Turn off this switch S1, the load lamp will be extinguished.
3) Emergency Simulation: Switch on S1, the load lamp turns on, press the switch(TEST SWITCH), then switch to emergency mode, the indicator light of emergency driver will be extinguished. Release the switch(TEST SWITCH), then lamp is powered by led driver, the indicator light will turn on.
4) Power off and power on, the phenomenon should be similar to emergency simulation.
9. Battery Application Notice
1) We suggest that the battery should be recharged and discharged semiannually.
2) Do not connect to the circuit when the battery is not use to prevent over-discharge of the battery due to self-consumption of the circuit board.
3) Please keep the battery from the heat source when installing and using, and only be allowed to use in certain working temperature range.
4) The battery should be stored in a cool and dry environment.
5) After long time storage, the battery is cycled every 6 months as required.
