MC054V RC 4 Series UL light motion sensor 120 - 277Vac High Bay For Warehouse on/off function sensor

  • MC054V RC 4 Series UL light motion sensor 120 - 277Vac High Bay For Warehouse on/off function sensor
  • MC054V RC 4 Series UL light motion sensor 120 - 277Vac High Bay For Warehouse on/off function sensor
Place of Origin China
Brand Name Merrytek
Certification cULus, CE, SAA, FCC, RED
Model Number MC054V RC 4 A/B/C/D
Minimum Order Quantity 500pcs
Price Negotiable
Packaging Details Instruction+ White box+ White box tags+ Clapboard+ Carton(K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or western Union
Supply Ability 20,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Frequency 5.8 GHz ±75MHz, ISM Wave Band. Rated Voltage 120-277V AC 50/60Hz
Stand-by Power ≤1W Working Mode ON/OFF Function, 1-10V Dimming
Operating Temperature -35℃~55℃ Certificate CULus, CE, SAA, FCC, RED
IP Rating IP65 Dimension (ΦxH)72*59mm
Lifetime 5 Years Warranty @Ta 230V Daylight Function Daylight Harvesting
Mouting Height 12m (typical Value), 15m (maximum Value)
Highlight

microwave motion sensor

,

high bay motion sensor
Leave a Message
Product Description

MC054V RC 4 Stand Alone UL Motion Sensor IP65 120-277Vac For Warehouse



For more details, pls refer to spec as follows.



MC054V RC Series Spec 2023.10.10.pdf





1. Features



1. Operating voltage 120~277V AC, suitable to Euro & North American market.



2. Patented microwave antenna, mounting height is 15m Max, suitable to install in most of warehouses.



3. Supports high-sensitivity and low-sensitivity modes (for metal ceilings, metal reflector mounting environments)



4. Work with 1-10V dimmable LED driver, easy to achieve 2-step or 3-step dimming function.



5. New patented remote control to adjust the launch angle to avoid misuse.



6. Dim+/Dim- function,daylight harvesting function



MC054V RC 4 Series UL light motion sensor 120 - 277Vac High Bay For Warehouse on/off function sensor 0



2. Parameter



Input Operating Voltage Rage 108-305VAC 60Hz
DC Input Voltage N/A
Rated Voltage 120-277VAC 60Hz
No-load Power N/A
Stand-by Power <1W
Surge Test L N: 1kV
Output Working Mode ON/OFF, 1-10VDimming
Type of Load Inductive or resistive Load
Load Capacity 120VAC: 4A; 220-277VAC: 3A
Current of Load N/A
Max. Surge Capacity

50A (50% Ipeak, twidth =500uS, 230Vac full load, cold start)

80A (50% Ipeak, twidth =200uS, 230Vac, full load, cold start)
Dim Interface 1-10V Dimming

< 50mA (Non-constant source)

10%, 20%, 30%, 50%
Synchronous Control N/A
High Low-level N/A
PWM Control N/A
Sensor Parameters Operating Frequency 5.8 GHz ±75 MHz,ISM band
Transmitting power 0.5mW Max.
Hold time 5s/30s/1min/3min/5min/10min/20min/30min
Stand-by dim Level 10%/20%/30%/50%
Stand-by Period 0s/10s/1min/3min/5min/10min/30min/+∞
Detection Area) 25%/50%/75%/100%
Daylight Sensor Daylight threshold:5lux/15lux/30lux/50lux/100lux/150lux/Disable(no shadow or ambient light diffuse reflection)
Detecting Range See detection pattern
Mounting Height 15m Max.
Detection Angle 150°(wall mount), 360°(ceiling mount)
Operating Environment Operating Temperature -35℃~+55℃
Storage Temperature -40℃~+80℃ humidity:10%-95% (non-condensing)
Certificate Standards Safety standards

IEC60669-2-1, IEC60669-1

AS/NZS 60669.1, AS/NZS 60669.2.1

UL60730-1
EMC standards

EN55015, EN61000-3-2, EN61000-3-3, EN61547

AS/NZS CISPR 15, AS/NZS 4268 FCC Part 15C, Part 15B

EN 60950-1, EN301489-1, EN 201489-3, EN300440
Environment Request Compliant to RoHS
Certificate cULus, CE, SAA, FCC, RED
Others Wiring SJTW,5*18AWG (USA); H05RR-F,5*18AWG (Europe,Australi a)； exposed line length: 810-830mm
Wiring color Sheath: Black Core: Red,White,Black,Gray,Purple (US); Blue,Brown, Gray, Red, Purple (Europe, Australia)
IP Rating IP65
Protection Class Class II
Installation Independent
Dimension (ΦxH)72*59mm
Package Instruction+ White box+ White box tags+ Clapboard+ Carton(K=A)
Net Weight

MC054V RC A/C 180g

, MC054V RC D:165g
Lifetime 50000h @ Ta full load

Note 1. “N/A”means not available.

2. Detection area is effected on volume of motion object and motion speed. The detection area is tested by a 165cm height person and walking speed is 0.5m/s.




3. Function

1) ON/OFF function, (stand-by period be set to "0"S)

MC054V RC 4 Series UL light motion sensor 120 - 277Vac High Bay For Warehouse on/off function sensor 1



2) 2-step dimming function (stand-by period be set to “+∞”)

MC054V RC 4 Series UL light motion sensor 120 - 277Vac High Bay For Warehouse on/off function sensor 2

3) 3-step dimming function (stand-by period be set to “10s/1min/3min/5min/10min/30min”)

MC054V RC 4 Series UL light motion sensor 120 - 277Vac High Bay For Warehouse on/off function sensor 3

4) Daylight harvesting



MC054V RC 4 Series UL light motion sensor 120 - 277Vac High Bay For Warehouse on/off function sensor 4





4. Dimension (mm)

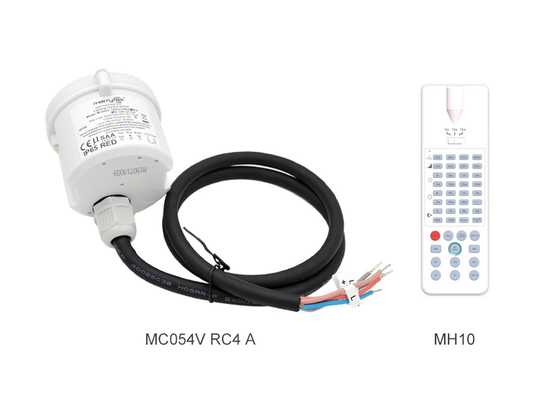

1)MC054V RC 4 A, MC054V RC 4 C

MC054V RC 4 Series UL light motion sensor 120 - 277Vac High Bay For Warehouse on/off function sensor 5

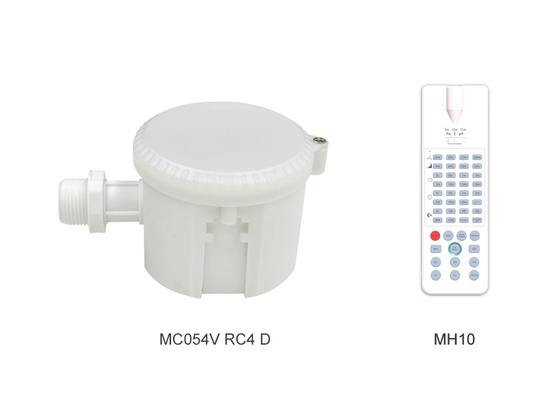

2) MC054V RC 4 D

MC054V RC 4 Series UL light motion sensor 120 - 277Vac High Bay For Warehouse on/off function sensor 6





5. Wiring





MC054V RC 4 Series UL light motion sensor 120 - 277Vac High Bay For Warehouse on/off function sensor 7



6. Function Diagram



MC054V RC 4 Series UL light motion sensor 120 - 277Vac High Bay For Warehouse on/off function sensor 8





7. Remote Control



MC054V RC 4 Series UL light motion sensor 120 - 277Vac High Bay For Warehouse on/off function sensor 9



Applications:



Warehouse



MC054V RC 4 Series UL light motion sensor 120 - 277Vac High Bay For Warehouse on/off function sensor 10
