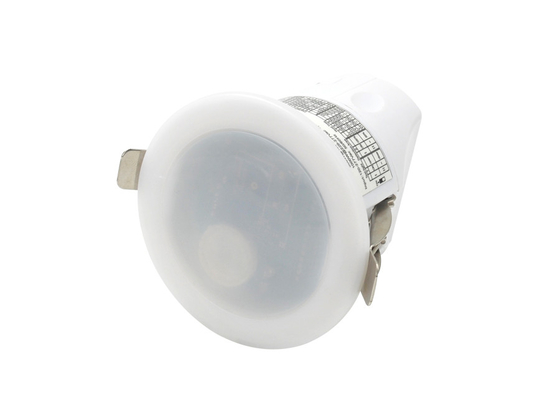

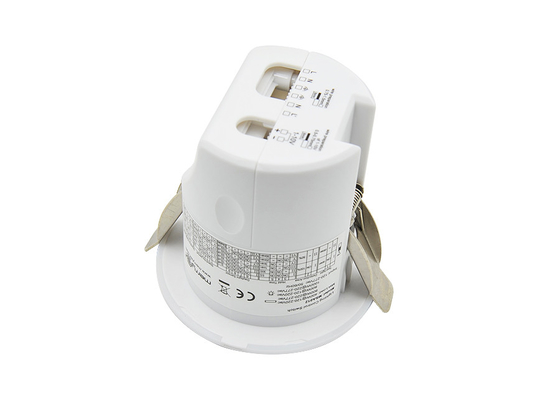

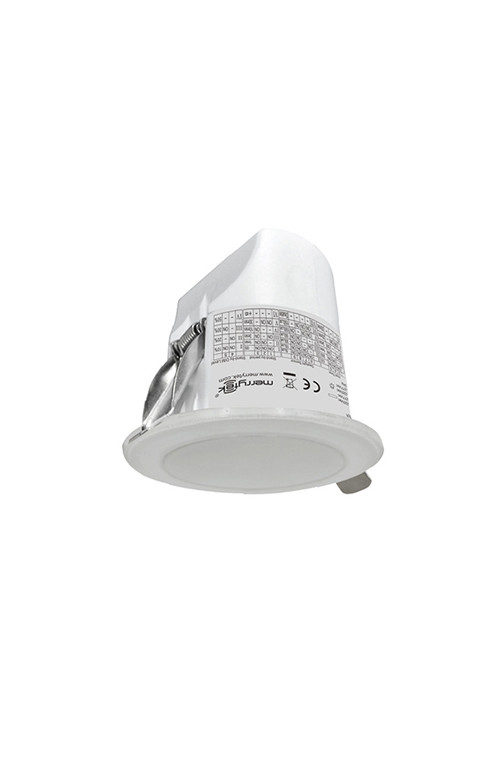

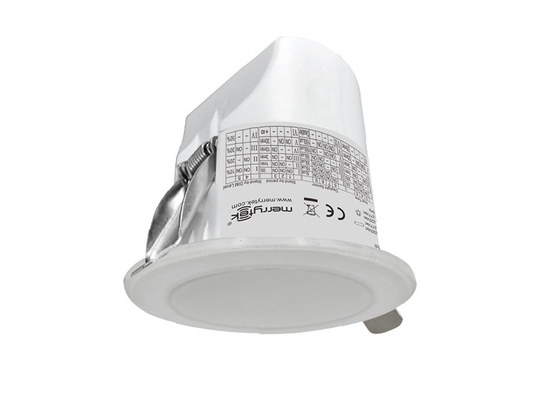

Stand Alone 277VAC Minor Motion Sensor With Daylight Harvesting

  • Stand Alone 277VAC Minor Motion Sensor With Daylight Harvesting
  • Stand Alone 277VAC Minor Motion Sensor With Daylight Harvesting
  • Stand Alone 277VAC Minor Motion Sensor With Daylight Harvesting
  • Stand Alone 277VAC Minor Motion Sensor With Daylight Harvesting
Place of Origin China
Brand Name Merrytek
Certification CE RoHS
Model Number MSA012
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details White box + flat card + outer box (K=A)
Delivery Time within 5 working days for sample and small order; within 3-4 weeks for bulk order
Payment Terms T/T, Western Union
Supply Ability 10,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 120V/277VAC 50/60Hz Stand-by Power ≤1W
Operating Frequency 5.8 GHz ±75 MHz，ISM Band Hold Tn, 10 Min / 20 Min / 30 Min)ime 5S/30S/1min/3min/20min/30min (remote Control Settings: 30 S / 5 S / 1 Min / 3 Min / 5 Mi
Detecting Radius 3-5m (ceiling Mounting:3m) Mounting Height Support 6m Max.
High Light

Remote Control Minor Motion Sensor

,

277VAC Minor Motion Sensor

,

Daylight Harvesting Minor Motion Sensor
Leave a Message
Product Description

Microwave Motion Sensor Stand-alone Minor Motion Sensor with Daylight Harvesting for Office Application MSA012




1. Features


1) Adopt Merrytek patented Minor motion detecting technology for small movement ,suitable for offices, conference rooms, classrooms and other applications



2) Anti air conditioning, fans and other interference;



3) Built-in daylight harvesting technology to achieve accurate constant light



4) Parameters can be adjusted by remote control or DIP switch



5) Equipped with infrared remote control, the transmitting Angle can be adjusted to accurately adjust the target sensor;



6) Wide voltage 120-277vac input, common in European and American markets;



7) Supports flush-mounted stand-alone installation




2. Parameters



Input Operating voltage 108-305VAC 50/60Hz
Rated voltage 120V/277VAC 50/60Hz
Stand-by power <1W
Surge test N—L: 1kV
Output Working mode ON/OFF 1-10V dimming
Type of load Inductive or resistive
Load capacity

400W (Inductive) 800W (resistive) @120V AC

800W (Inductive) 1000W (resistive) @277v AC
Max.surge capacity 50A (50% Ipeak, twidth =500uS, 277Vac full load, cold start); 80A (50% Ipeak, twidth =200uS, 277Vac, full load, cold start)
Dim interface 1-10V Dimming < 50mA(Non-constant source)
wiring mode Press the terminal
Sensor parameters Operating frequency 5.8 GHz ±75 MHz,ISM band
Transmitting power 0.5mW Max.
Hold time

5S/30S/1min/3min/20min/30min

(remote control Settings: 30 s / 5 s / 1 min / 3 min / 5 min, 10 min / 20 min / 30 min)
Stand-by dim Level 10/20/30/50% (remote control setting: 10/20/30/50%)
Stand-by Period

0 s / 1 min / 3 min / 10 min / 30 min / + up

(remote control Settings: 0 s / 10 s / 1 min / 3 min / 5 min, 10 min / 30 min/Disable)
Detection Area 100%/50%(remote control Settings:100%/75%/50%/25%)
Daylight Sensor 5lux/15Lux/30Lux/50Lux/100lux/150lux/Disable
Detection range (radius) 3-5m (ceiling mounting;3m)
Mounting height support 6m Max.
Detecting Angle 150°(wall mounting) 360°(ceiling mounting)
Operating envrionment Operating Temperature -25℃…+55℃ Humidity: 85% (non-dew)
Storage Temperature/humidity -40℃…+80℃ Humidity: 85% (non-dew)
Certificate Standards Safety standards EN61058-1
Environmental Requirement Compliant to RoHS
Certificate CE RoHS
Others Wiring "L N ground" port diameter: 0.75-1.5 mm2 "1-10v" port diameter: 0.75-1.0 mm2
IP Rating IP20
Protection Class Class II
Installation Built-in
Installation imension Ø70-Ø80
Package White box + flat card + outer box (K=A)
Net weight 153.2g
Life time 50000h @ Ta full load
Note 1. “N/A”means not available. 2. Detection area is effected on volume of motion object and motion speed. The detection area is tested by a 165cm height person and walking speed is 0.5m/s


3.Function



People's normal working life in the body gentle motion sensing, in non-sleep conditions to achieve approximate human presence detection.



Stand Alone 277VAC Minor Motion Sensor With Daylight Harvesting 0



A. On-off function (WITHOUT DH)



Stand Alone 277VAC Minor Motion Sensor With Daylight Harvesting 1



B. 2 step dimming function (WITHOUT DH)

Stand Alone 277VAC Minor Motion Sensor With Daylight Harvesting 2

C. 3 step dimming function (WITHOUT DH)

Stand Alone 277VAC Minor Motion Sensor With Daylight Harvesting 3



D. On-off function (WITH DH)

Stand Alone 277VAC Minor Motion Sensor With Daylight Harvesting 4

E. 2 Step dimming function (WITH DH)

Stand Alone 277VAC Minor Motion Sensor With Daylight Harvesting 5

F. 3 Step dimming function (WITH DH)

Stand Alone 277VAC Minor Motion Sensor With Daylight Harvesting 6




4.Dimension (mm)

Stand Alone 277VAC Minor Motion Sensor With Daylight Harvesting 7

5. Wiring

Stand Alone 277VAC Minor Motion Sensor With Daylight Harvesting 8

*The sensor is recommend to connect one load only. Connect more than one loads need to consider the load and surge capacity.



6. Structure

Stand Alone 277VAC Minor Motion Sensor With Daylight Harvesting 9









7. Detection pattern



1)Ceiling mounting



Horizontal installation: 3m Sensor range setting:

100%/75%/50%/25%

Horizontal installation:6m

Sensor range setting:

100%/75%/50%/25%



Stand Alone 277VAC Minor Motion Sensor With Daylight Harvesting 10

8. Dip switch settings



The control of indicator light

  1
Ⅰ ON Test
Ⅱ - Normal



Detection Area

  2
Ⅰ ON 100%
Ⅱ - 50%


Hold Time

  3 4 5
Ⅰ ON ON ON 5S
Ⅱ - ON ON 30s
Ⅲ ON - ON 1min
Ⅳ - - ON 3min
Ⅴ ON ON - 20min
Ⅵ - - - 30min



Stand-by Period

  1 2 3
Ⅰ ON ON ON 0S
Ⅱ - ON ON 1min
Ⅲ ON - ON 3min
Ⅳ - - ON 10min
Ⅴ ON ON - 30min
Ⅵ - - - +∞








Daylight Sensor

  6 7 8 9
Ⅰ ON ON ON ON 5Lux
Ⅱ - ON ON ON 15Lux
Ⅲ ON - ON ON 30Lux
Ⅳ - - ON ON 50lux
Ⅴ ON ON - ON 100lux
Ⅵ ON ON ON - 150lux
VII - - - - Disable






Stand-by DIM Level

  4 5 brightness Constant voltage output
Ⅰ ON ON 10% 1.5±0.1V
Ⅱ ON - 20% 2V±0.1V
Ⅲ - ON 30% 3V±0.1V
Ⅳ
  •
 - 50% 5V±0.1V



9. Remote control

Stand Alone 277VAC Minor Motion Sensor With Daylight Harvesting 11





10. Canceling the sensor function

The sensor function can be canceled by quick Switching off/on 3 times within 2 seconds. Turn off/on the power again to recover sensor function .



11. Initialization

The light will turn on 100% brightness in the initial energizing sensor, and turn to low brightness 10 seconds later (the brightness set by stand-by dim level). During initialization, no external motion sensing signal will be detected.



12. Factory setting

The control of indicator light:normal Detection Area:100% Hold Time:5S Daylight Sensor:Disable Stand-by Period: 0S Stand-by DIM Level:10%



13. Application notice

       1. The interval between multiple installations is 3m.

       2. The use of Daylight harvesting functions need to use with MH10 remote control to use.

       3. The product is switched on and off three times in a row within 2S, and the product enters the normally bright mode.

       4. The product is set by remote control. After each setting is successful, the load light will flash once, which means the setting is successful.

       5. There should be no metal plate, glass cover and other materials with high medium density in front of the sensor, which is easy to trigger by mistake.

       6. If it cannot be installed in a room that vibrates for a long time, the vibration signal will be regarded as a mobile signal to trigger the sensor.

       7. Turn off the indicator light in normal use to avoid affecting the constant light control!The first dial code needs to be set to OFF state
