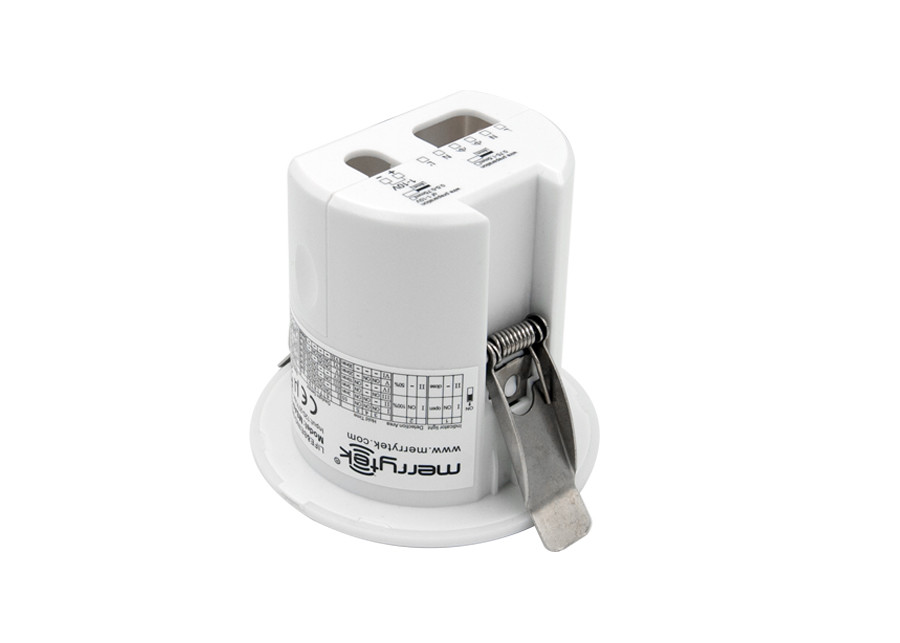

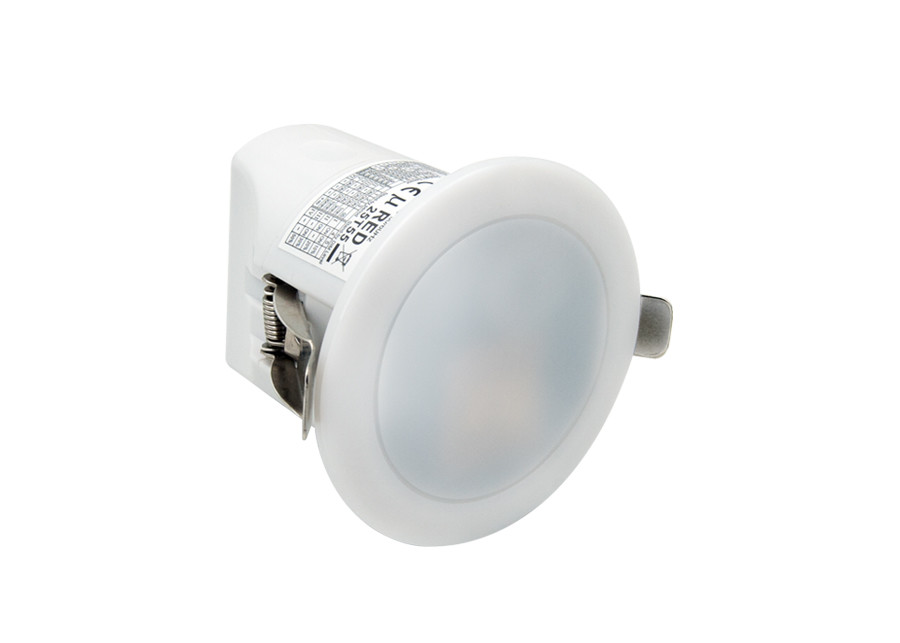

120-277Vac inpu 1-10v Dimmable occupancy sensors with daylight harvesting IP20

Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MSA012 R
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details Color box + flat card + outer box (K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or Western Union or PayPal
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Detecting Technology Movement / Minor Motion / Breathing / Daylight Harvesting Working Mode ON-oFF / 1-10V Dimming
Rated Voltage 120-277VAC 50/60Hz Stand-by Power <0.5W
Mounting Height 3-6m Daylight Harvesting Yes
Load Capacity 1000W IP Rating IP20
Highlight

indoor light motion sensor

,

motion detection sensor

Leave a Message
Product Description

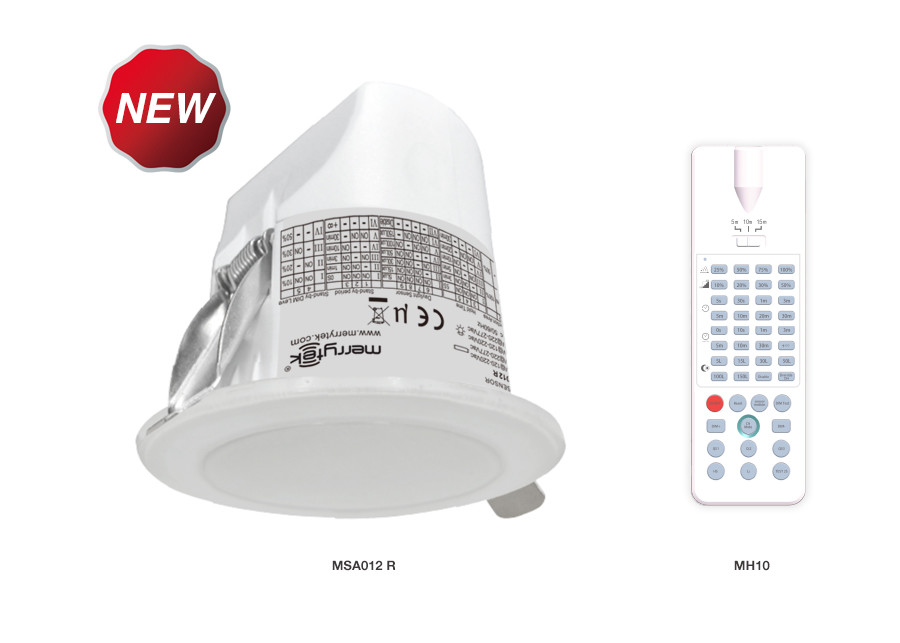

MSA012 R 1-10v Dimmable occupancy sensors with daylight harvesting





1) Adopt Merrytek's patented LifeBeing detected technology, which can detect movement, slight motion, and breathing signals. It is suitable for an office, meeting room, classroom, and so on. It will be influenced by air conditioning, fans, and so on.

2) Built-in daylight harvesting technology to solve the problems that daylight harvesting technology range is not accurate or daylight harvesting is easily influenced by color.

3) Parameters can be adjusted by remote control, easy to install and debug.

4) Built-in 17A relay for connecting multiple loads.

5) Wide voltage 120-277Vac input.

6) Flush mounting installation.

7) The brightness of the lamp can be changed as needed through DIM+, and DIM- buttons on the remote control.

8) Patented Low Impedance antenna helps anti-interference.

9) 5-year warranty.





Input Operating voltage 108-305VAC 50/60Hz
Rated voltage 120V-277VAC 50/60Hz
Stand-by power <1W
Lightning Between L & N: 1KV
Output Working Mode ON/OFF, 1-10V Dimming
Type of Load Inductive / Resistive / LED load
Load Capacity Inductive: 1000W /Resistive: 800w /LED load: 800w
Max. Surge Capacity

17Arelay

50A (50% Ipeak, twidth =500uS, 230Vac full load, cold start);

Dim Interface 1-10V Dimming 1-10V, load current: 50mA Max
Wiring press terminal
Sensor parameters Operating frequency 5.8 GHz ±75 MHz, ISM wave band.
Transmitting power 5mW Max.
Hold Time 5S~30min
Dim down 10%/50%
Cut off 0s/1min/3min/10min/30min/+∞
Detection 100%/50%(remote control: 100%/75%/50%/25%)
Daylight Sensor 5lux~150lux/Disable(remote control)
Detection range (radius)

Big motion: 3-4m(0.3m/S speed)

Minor motion: 3-4m

Breathing: 2-3m

Mounting height 2.5-4m
Detecting Angle 150°
Operating environment Operating Temperature 0℃…+50℃, Humidity:85% (Non condensing)
Storage Temperature/humidity -35℃…+80℃, Humidity:85% (Non condensing)
Certificate Standards LVD standards EN61058-1
EMC standards EN300440; EN301489-1; EN55015; EN61547; EN62479
Environmental Requirement Compliant to RoHS
Certificate CE RoHS RED
Others Wiring "L N ground" port diameter: 0.75-1.5mm2; 1-10V dim port diameter: 0.75-1.0mm2
IP Rating IP20
Protection Class Class II
Installation Flush mounted
Cut size Ø70-Ø80mm
Life time 5 years warranty@Ta 230V full load

1. Function

Instructions of signal detection: the sensor detects human walking, minor motions (such as body movement, turning up head, and others minor movements), and breathing to realize the detection of human existence in a non-sleep state.

120-277Vac inpu 1-10v Dimmable occupancy sensors with daylight harvesting IP20 0

* Big motion signal: Big motion for sensor triggering

* Minor motion signal: very small movement even only body motion can be collected, the indicator flashes once.

* Breathing signal: when no slight motion signal, only a breathing signal can be collected, the indicator flashes 3 times by detecting 3 effective breathing signals.

* Please turn off the indicator light in normal use to avoid affecting the daylight harvesting function.



Built-in daylight sensor, MSA012 R adjusts the luminaire illuminance automatically to maintain a target illuminance, while detecting the natural light intensity. Thus the purpose of complementing natural light and artificial light is achieved. It can be used in offices, airports, shopping malls, and other occasions where the brightness of lights needs to be adjusted according to daylight during the day.

120-277Vac inpu 1-10v Dimmable occupancy sensors with daylight harvesting IP20 1



2. ON/OFF function(stand-by period be set to “0”s, without DH mode)

120-277Vac inpu 1-10v Dimmable occupancy sensors with daylight harvesting IP20 2

3. 2 Step dimming function (stand-by period be set to “+∞”, without DH mode)

120-277Vac inpu 1-10v Dimmable occupancy sensors with daylight harvesting IP20 3

4. 3-step dimming function (stand-by period be set to 1min/3min/10min/30min, without DH mode)

120-277Vac inpu 1-10v Dimmable occupancy sensors with daylight harvesting IP20 4

5. Dimension

120-277Vac inpu 1-10v Dimmable occupancy sensors with daylight harvesting IP20 5



6. Wiring

120-277Vac inpu 1-10v Dimmable occupancy sensors with daylight harvesting IP20 6

7. Structure

120-277Vac inpu 1-10v Dimmable occupancy sensors with daylight harvesting IP20 7

8. Remote Setting

120-277Vac inpu 1-10v Dimmable occupancy sensors with daylight harvesting IP20 8

9. Initialization

The first power on, the sensor enters the self-test mode, and the self-test will be completed after 60 seconds to enter the normal working state. During the initialization, the external motion signal will not be detected, remote control signal not be received.



10. Application Notes

1) The sensor should be installed by a professional electrician. Please disconnect the power before installing, wiring, or changing the setting of the DIP switch.

2 ) Put the sensor as far as possible from large areas of metal plate, glass, and other materials with high medium density to avoid triggering by mistake.

3) Avoid using objects that have been vibrating for a long time around the sensor, such as shaking fans, etc. The vibration signal will be regarded as the motion signal to trigger the sensor.

4) Each time the product is set by remote control, the indicator light flashes 3 times quickly, which means the setting is successful.

5) During the initialization period, the sensing function is not activated, and the sensing parameters cannot be set remotely.

6) There is no daylight harvesting function by factory setting, use remote control to start it.

7) Please turn off the indicator light in normal use to avoid affecting the daylight harvesting function.

8) Used in an open office with a large number of people, 30s Hold time is OK, but in the independent office, the Hold time needs to be 1min or more than 3min.

9) The microwave sensor can penetrate the wall of the building, and the microwave penetrating outside the wall may cause false triggering when it detects moving objects outside. To avoid false triggering, please select the appropriate detection area during installation, for example:

A. When the product is used in a room of 2m *2m or smaller, the detection area should be set to 25%(use the remote control),

B. When used in a room of about 3m *3m, the detection area should be set to 50%;

C. When applied in a room of about 4m *4m, the detection area should be set to 75%;

D. When used in a room of about 5m *5m or bigger, the detection area should be set to 100%.
