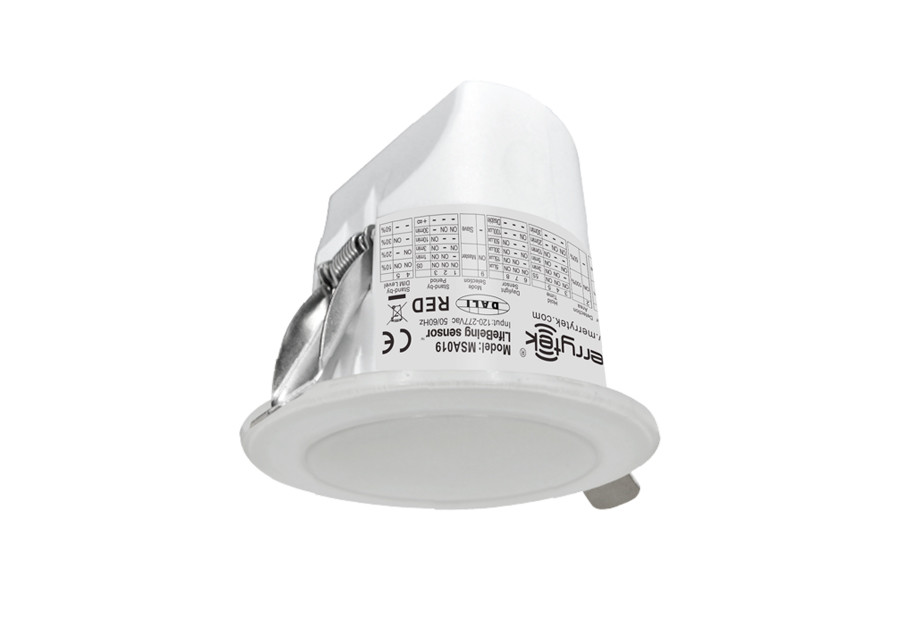

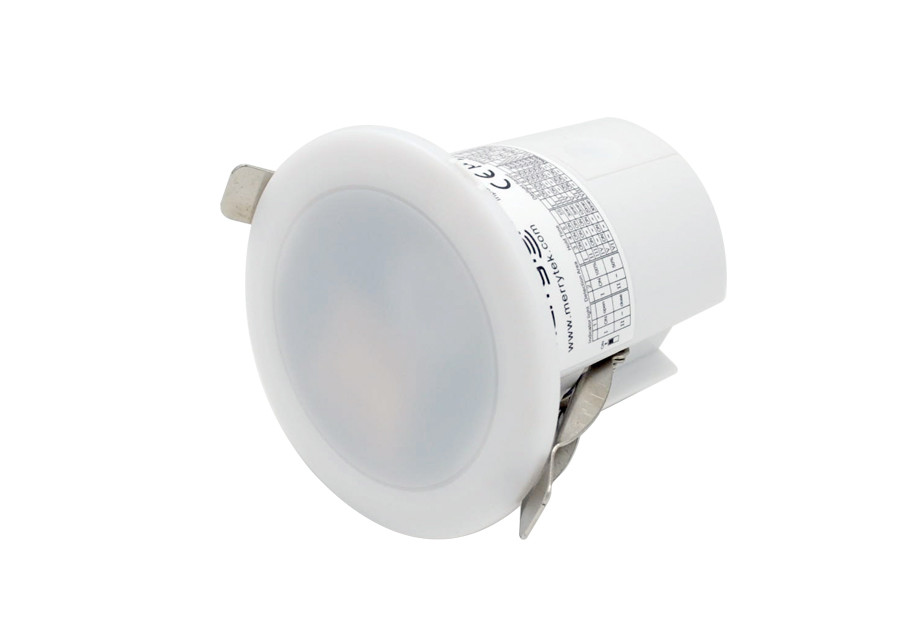

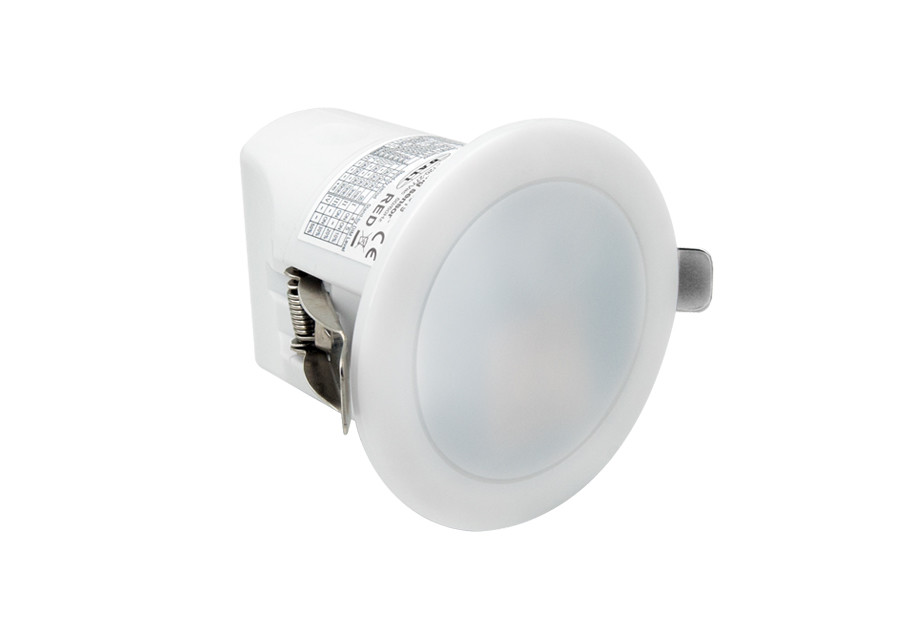

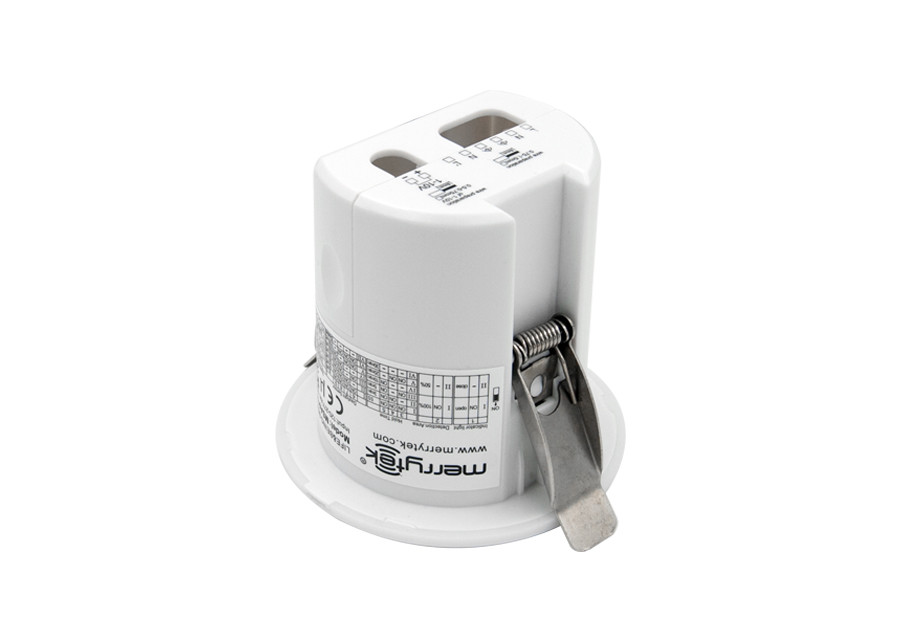

MSA019 Occupancy Detection Sensor With DALI Dimming And Constant Light
| Place of Origin | China |
|---|---|
| Brand Name | Merrytek |
| Certification | CE |
| Model Number | MSA019 |
| Minimum Order Quantity | 100pcs |
| Price | Negotiation |
| Packaging Details | Color box + flat card + outer box (K=A) |
| Delivery Time | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
| Payment Terms | T/T or Western Union or PayPal |
| Supply Ability | 10,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Detecting Technology | Movement / Minor Motion / Breathing / Daylight Harvesting | Working Mode | On-off / DALI Dimming |
|---|---|---|---|
| Rated Voltage | 120-277VAC 50/60Hz | Transmitting Power | 0.5mW Max. |
| Load Capacity | 64 LED Drivers Max | Working Mode | Master/ Slave |
| Mounting Height | 2.5-4m | IP Rating | IP20 |
| Highlight | MSA019 Occupancy Detection Sensor,MSA019 dimmable occupancy sensor,Merrytek Occupancy Detection Sensor |
||
Product Description
Occupancy Sensor of Breathing Dedetecting with DALI Dimming & Constant Light MSA019
1. Adopt Merrytek patented Lifebeing detected technology, which can detect movement, slight motion, and breathing signals.
2. Built-in daylight harvesting technology to achieve accurate constant light.
3. Built-in DALI interface, which can work with DALI1.0 & DALI2.0 drivers.
4. With a PUSH port, can manually ON-OFF and dim.
5. Support multiple access, multi-point acquisition of sensor data, and transmissing the data via broadcast mode grouping work.
6. 5-year warranty.
| Input | Operating voltage | 108-305VAC 50/60Hz |
| Rated voltage | 120V-277VAC 50/60Hz | |
| Stand-by power | <1W | |
| DIM Interface | DALI interface | DA+ DA- (Max. Lead length:300M; Max. Output current: 200mA) |
| PUSH interface | Manual ON-OFF & dimming (set the Max. brightness) | |
| Interface terminal connection | Press terminal | |
|
Sensor parameters |
Operating frequency | 5.8 GHz ±75 MHz, ISM band. |
| Work mode |
Master /Salve When multiple sensors are networked, only one is set to master and the others to slaves. |
|
| Transmitting power | 5mW Max. | |
| Hold time |
5S/30S/1min/3min/5min/10min Remote control: 5S/30S/1min/3min/5min/10min/20min/30min) |
|
| Stand-by dim Level | 10%/20%/30%/50% (Remote control: 10%/20%/30%/50%) | |
| Stand-by period |
0s/1min/3min/10min/30min/+∞ (Remote control: 0s/10S/1min/3min/5min/10min/30min/+∞) |
|
| Detection Area | 100%/50% (Remote control: 100%/75%/50%/25%) | |
| Daylight Sensor |
5lux/15Lux/30Lux/50Lux/100lux/Disable (Remote control: 5lux/15Lux/30Lux/50Lux/100lux/150lux/Disable) |
|
| Detection range (radius) |
Movement: 3-4m (Speed: 0.3m/s) Slight motion: 3-4m Breathing: 2-3m |
|
| Mounting height | Recommend 2.5-4m | |
| Detecting Angle | 150°(wall mount), 360°(ceiling mount) | |
| Operating environment | Operating Temperature | 0℃…+50℃ /Humidity: 85% (Non condensing) |
| Storage Temperature/humidity | -40℃…+80℃ /Humidity: 85% (Non condensing) | |
| Certificate Standards | LVD standards | EN61058-1, EN61058-1-2 |
| EMC standards | EN55015, EN61547, EN61000-3-2, EN61000-3-3 | |
| Environmental Requirement | Compliant to RoHS | |
| Certificate | CE | |
| Others | Wiring |
"L N ground" port diameter: 0.75-1.5 mm2 “DALI2” port diameter: 0.75-1.0mm2 |
| IP Rating | IP20 | |
| Protection Class | Class II | |
| Installation | Flush mounted | |
| Installation dimension | Cut size: Ø70-Ø80 | |
| Life time | 5 years warranty@Ta 230V full load |
