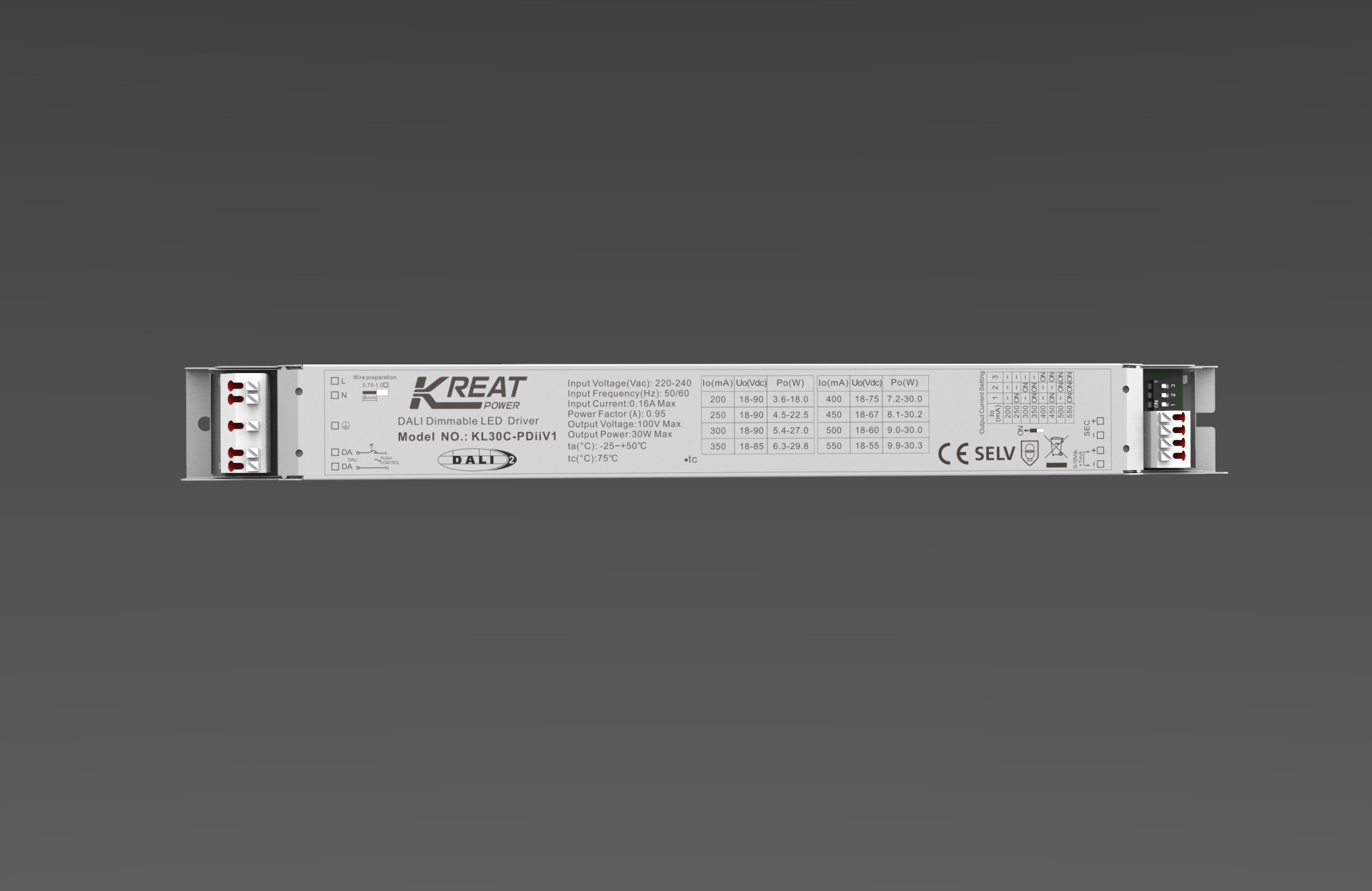

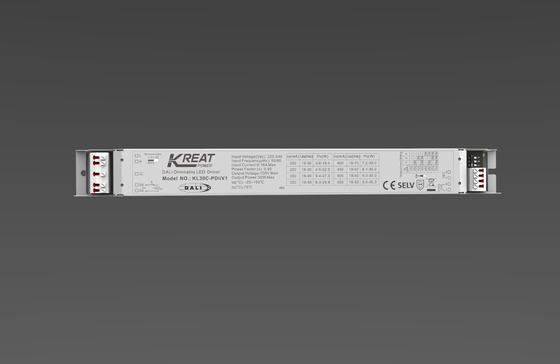

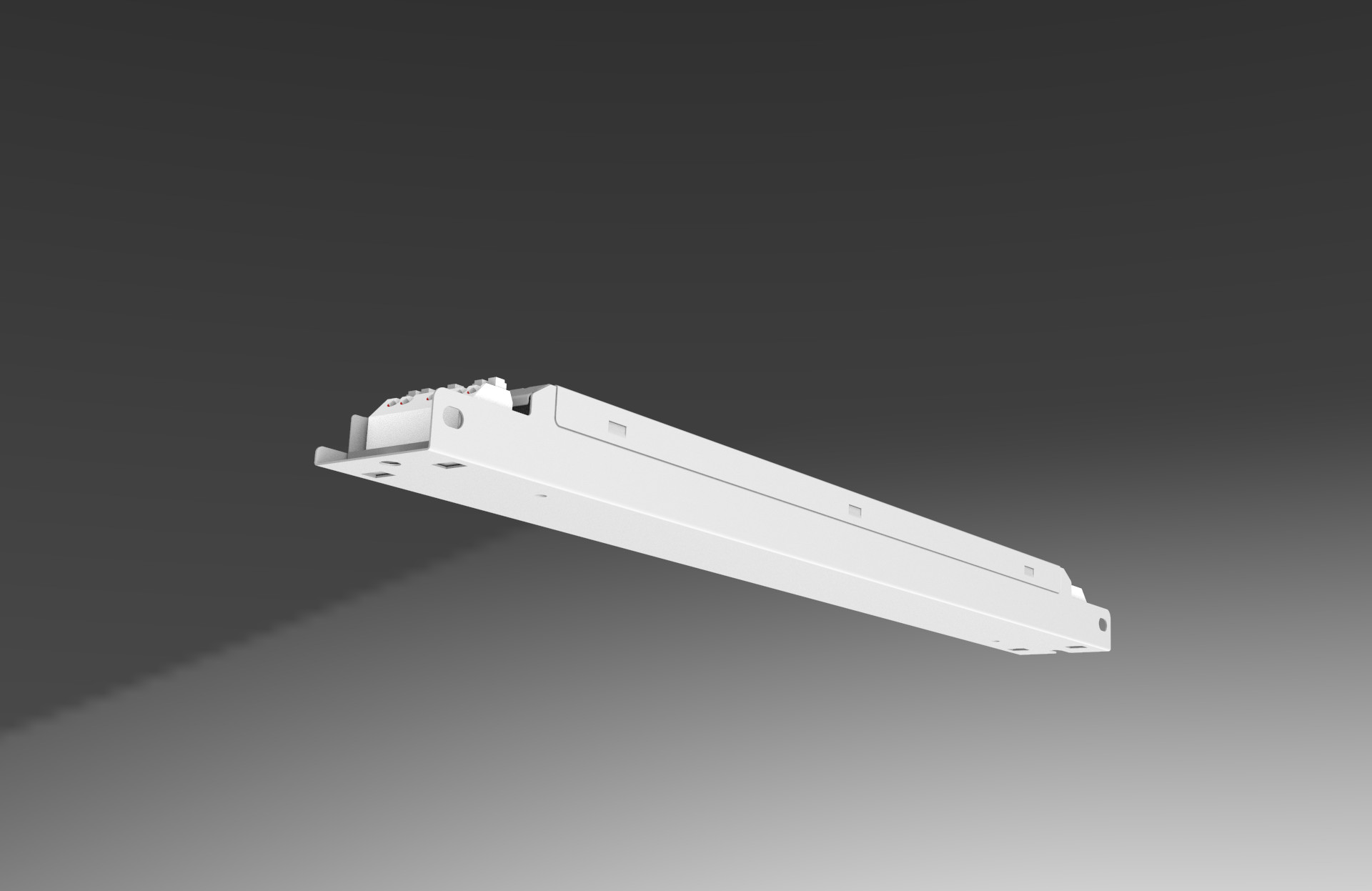

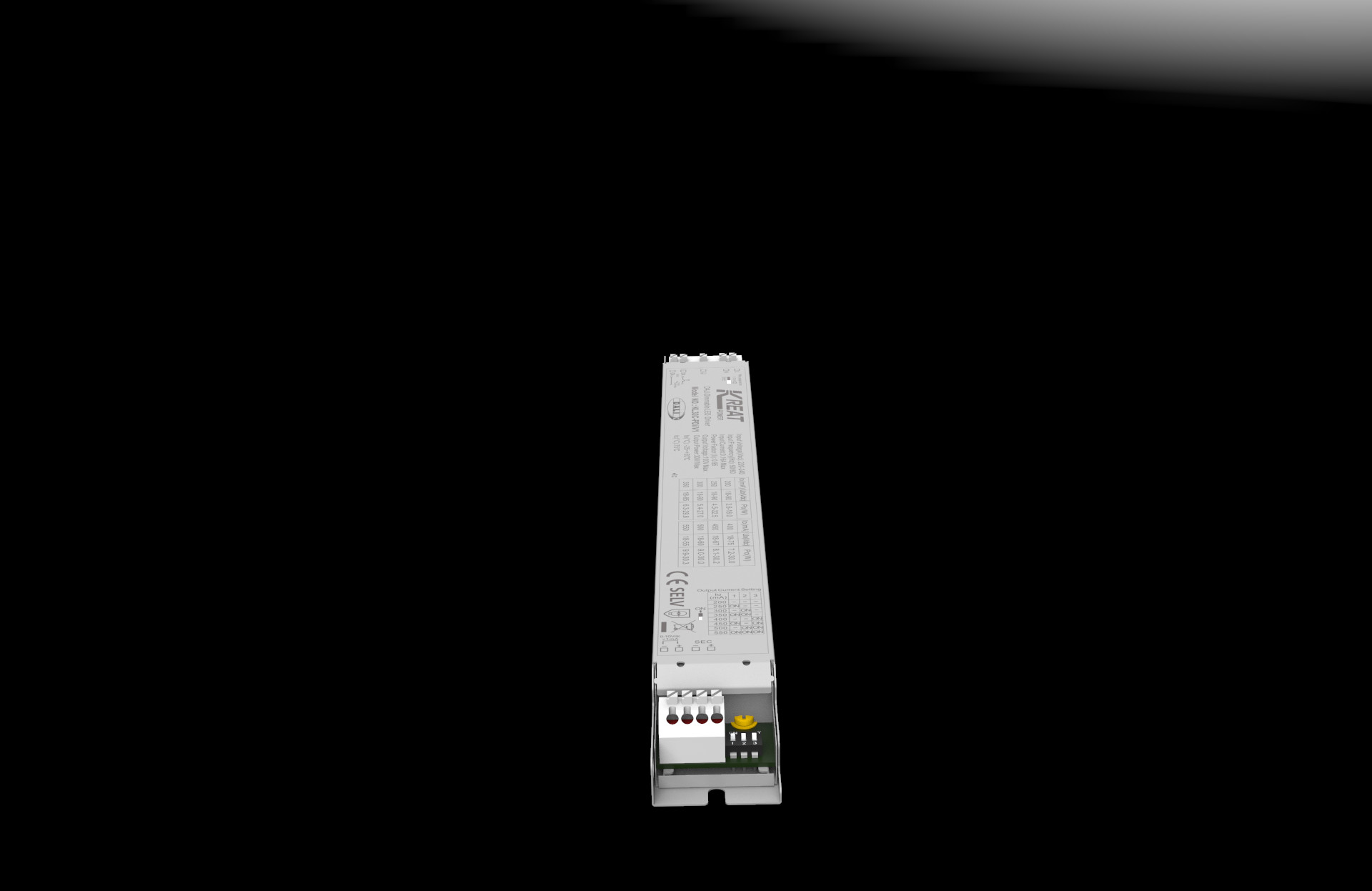

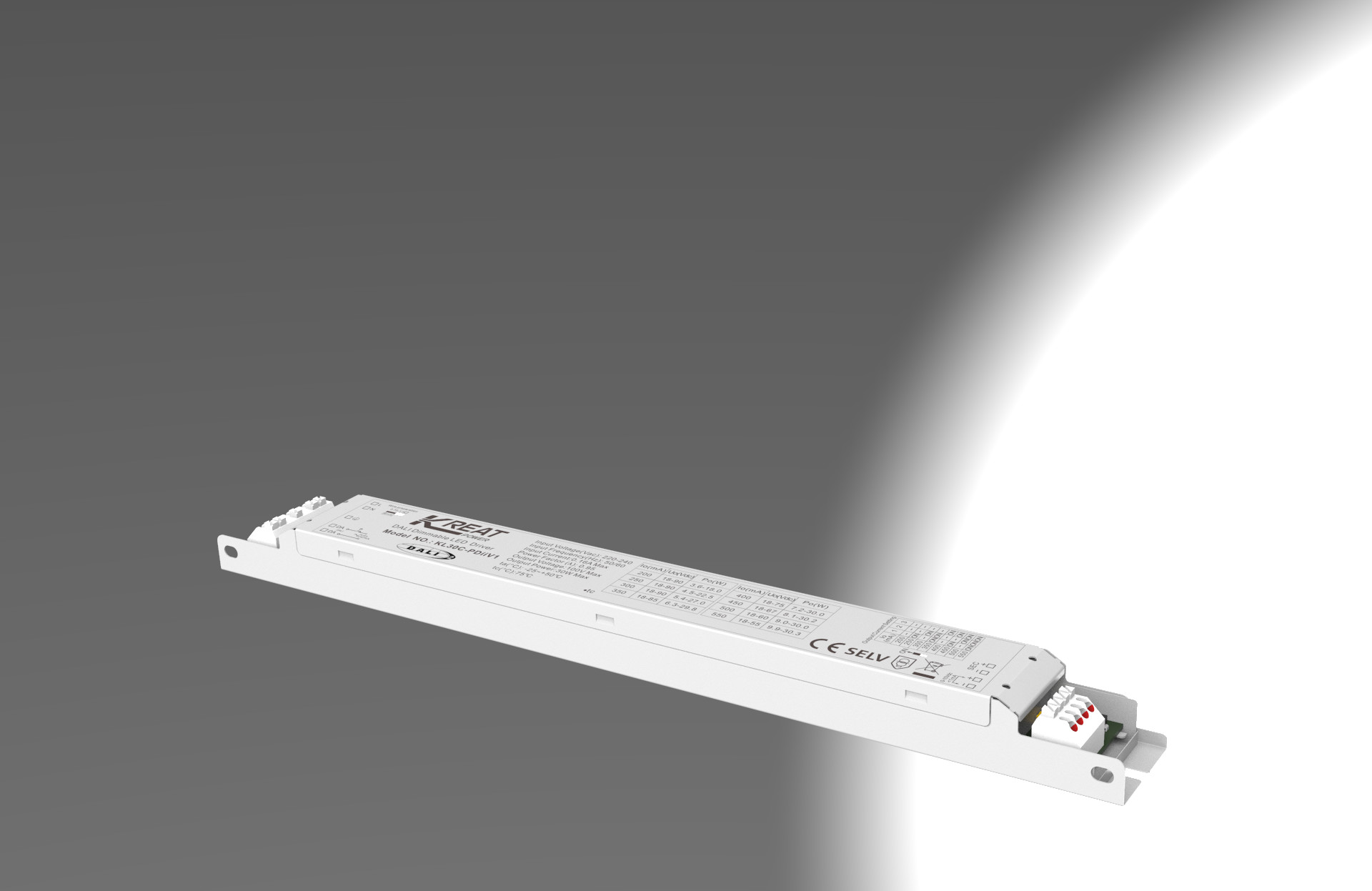

IP20 30W Dimmable LED Driver DALI Push 1-10V Dimming Push Terminal

  • IP20 30W Dimmable LED Driver DALI Push 1-10V Dimming Push Terminal
  • IP20 30W Dimmable LED Driver DALI Push 1-10V Dimming Push Terminal
  • IP20 30W Dimmable LED Driver DALI Push 1-10V Dimming Push Terminal
  • IP20 30W Dimmable LED Driver DALI Push 1-10V Dimming Push Terminal
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number KL30C-PDiiV1
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details Packed in bubble bag/white box firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 4-5 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 20,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operate Voltage 220-240Vac, 50Hz/60Hz Dimension 284*30*20.5mm
Approval CE Power Factor ≥0.95 @230Vac (full Load)
Stand-by Power ≤0.5w (@230Vac When PUSH Or DALI Turn Off) Efficiency 86% Max. @230Vac (Full Load)
Operating Mode Constant Current Ripple Requirement (Flickering Or Flickering-Free） Flicker Value: Less Than 2% For Whole Dimming Range
Load Output Voltage Range 18-90VDC Full Load Output Power 30W Max.
Load Output Current 200MA(18-90V); 250MA(18-90V); 300MA(18-90V); 350MA(18-85V); 400MA(18-75V); 450mA(18-67V); 500mA(18-60V); 550mA(18-55V); Constant Current/voltage Precision Constant Current Precision ±5%
Wiring Method Push Terminal, Wire Cross Section:0.5-1.0mm 2 Primary PUSH Dimming Primary PUSH Dimming (Max.lead Length：20M）
Dimming Range Primary PUSH & DALI Dimming: 0%-100% DALI Dimming DALI Dimming (Max.lead Length：300M）
Operating Temperature/ Humidity -25℃~50℃ Humidity:85% (Non-condensing) Storage Temperature/ Humidity -40℃~80℃, Humidity:10%–95%
Max. Case Temp（Tc） 85℃ Degrees Of Protection IP20
Type Of Protection Class I Weight 200g
Life 5 Years Warranty
High Light

IP20 Dimmable LED Driver

,

30W Dimmable LED Driver

,

Linear Shell 30w dimmable led driver
Leave a Message
Product Description

30W DALI & PUSH & 1-10V Dimmable LED driver 220-240VAC Operated 200-550mA Output Linear metal shell



IP20 30W Dimmable LED Driver DALI Push 1-10V Dimming Push Terminal 0

IP20 30W Dimmable LED Driver DALI Push 1-10V Dimming Push Terminal 1

IP20 30W Dimmable LED Driver DALI Push 1-10V Dimming Push Terminal 2

IP20 30W Dimmable LED Driver DALI Push 1-10V Dimming Push Terminal 3

IP20 30W Dimmable LED Driver DALI Push 1-10V Dimming Push Terminal 4

IP20 30W Dimmable LED Driver DALI Push 1-10V Dimming Push Terminal 5
