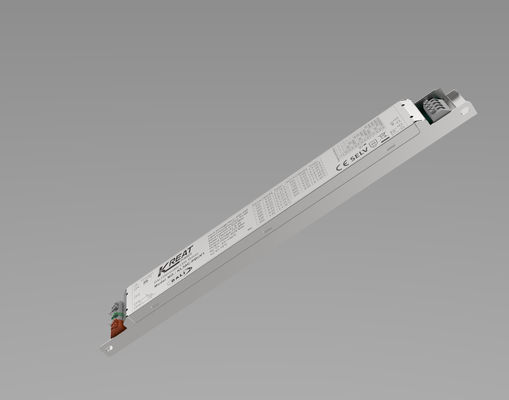

40W DALI2.0 Dimmable LED Driver Flickering Free With Push Button
| Place of Origin | China |
|---|---|
| Brand Name | Merrytek |
| Certification | CE |
| Model Number | KL38C-PDiiV1 |
| Minimum Order Quantity | 100pcs |
| Price | Negotiation |
| Packaging Details | Packed in bubble bag/white box firstly, and then reinforced with carton for outer packing |
| Delivery Time | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 4-5 weeks after receiving deposit. |
| Payment Terms | T/T |
| Supply Ability | 20,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Operate Voltage | 220-240Vac, 50Hz/60Hz | Dimension | 284*30*20.5mm |
|---|---|---|---|
| Approval | CE | Power Factor | ≥0.95 @230Vac (full Load) |
| Stand-by Power | ≤0.5w (@230Vac When PUSH Or DALI Turn Off) | Efficiency | 87% Max. @230Vac (Full Load) |
| Operating Mode | Constant Current | Ripple Requirement (Flickering Or Flickering-Free） | Flicker Value: Less Than 2% For Whole Dimming Range |
| Load Output Voltage Range | 9-60VDC | Full Load Output Power | 40W Max. |
| Load Output Current | 300MA(9-60V); 350MA(9-60V); 400MA(9-60V); 450MA(9-60V); 500MA(9-60V); 550mA(9-60V); 600mA(9-60V); 650mA(9-60V); 700mA(9-57V); 750mA(9-53V); 800mA(9-50V); 850mA(9-47V); 900mA(9-44V); | Constant Current/voltage Precision | Constant Current Precision ±5% |
| Wiring Method | Push Terminal, Wire Cross Section:0.5-1.0mm 2 | Primary PUSH Dimming | Primary PUSH Dimming (Max.lead Length：20M） |
| Dimming Range | Primary PUSH & DALI Dimming: 0%-100% | DALI Dimming | DALI Dimming (Max.lead Length：300M） |
| Operating Temperature/ Humidity | -25℃~50℃ Humidity:85% (Non-condensing) | Storage Temperature/ Humidity | -40℃~80℃, Humidity:10%–95% |
| Max. Case Temp（Tc） | 85℃ | Degrees Of Protection | IP20 |
| Type Of Protection | Class I | Weight | 210g |
| Life | 5 Years Warranty | ||
| High Light | Flickering Free DALI2.0 Dimmable LED Driver,40W DALI2.0 Dimmable LED Driver,Metal Shell led driver dali dimmable |
||
Product Description
40W DALI & PUSH & 1-10V Dimmable LED driver 220-240VAC Operated 300-900mA Output Linear metal shell
