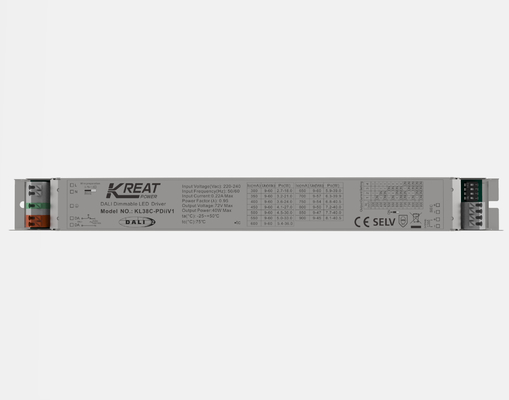

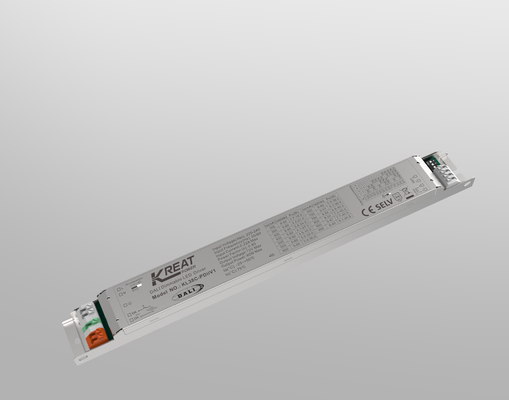

40W DALI2.0 Dimmable LED Driver Flickering Free With Push Button
| Place of Origin | China |
|---|---|
| Brand Name | Merrytek |
| Certification | CE |
| Model Number | KL38C-PDiiV1 |
| Minimum Order Quantity | 100pcs |
| Price | Negotiation |
| Packaging Details | Packed in bubble bag/white box firstly, and then reinforced with carton for outer packing |
| Delivery Time | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 4-5 weeks after receiving deposit. |
| Payment Terms | T/T |
| Supply Ability | 20,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Operate Voltage | 220-240Vac, 50Hz/60Hz | Power Factor | ≥0.95 @230Vac (full Load) |
|---|---|---|---|
| Load Output Voltage Range | 9-60VDC | Full Load Output Power | 40W Max. |
| Load Output Current | 300MA(9-60V); 350MA(9-60V); 400MA(9-60V); 450MA(9-60V); 500MA(9-60V); 550mA(9-60V); 600mA(9-60V); 650mA(9-60V); 700mA(9-57V); 750mA(9-53V); 800mA(9-50V); 850mA(9-47V); 900mA(9-44V); | Degrees Of Protection | IP20 |
| Type Of Protection | Class I | Life | 5 Years Warranty |
| High Light | 40W DALI2.0 Dimmable LED Driver,Push Button DALI2.0 Dimmable LED Driver,Flickering Free dali dimmable driver |
||
Product Description
40W DALI & PUSH & 1-10V Dimmable LED driver 220-240VAC Operated 300-900mA Output Linear metal shell
