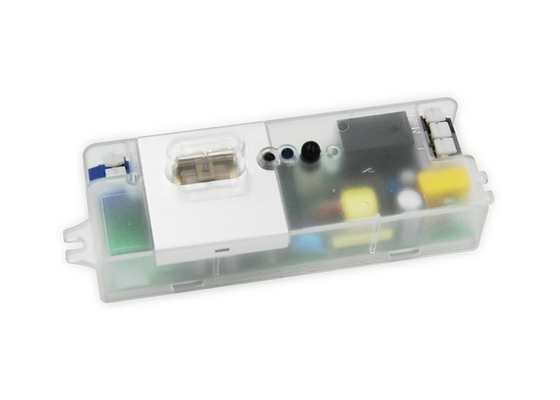

0 - 10V Dimming Motion Microwave Sensor MC087V RC With Bipolar Antenna

  • 0 - 10V Dimming Motion Microwave Sensor MC087V RC With Bipolar Antenna
Place of Origin China
Brand Name Merrytek
Certification CE, RoHS
Model Number MC087V RC
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details Bubble bag + partition + outer box (K=A)
Delivery Time within 5 working days for sample and small order; within 3-4 weeks for bulk order
Payment Terms T/T
Supply Ability 10,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 120/277V AC 50/60Hz Operating Frequency 5.8GHz ±75 MHz, ISM Band.
Working Mode ON/OFF Function, 1-10V Step Dimming Mounting Height 6m Max
Lifetime 5 Years Warranty@Ta 230V Full Load
High Light

step dimming Motion Microwave Sensor

,

Dimming Motion Microwave Sensor

,

Bipolar Antenna Dimmable Motion Sensor
Leave a Message
Product Description

    1. Features



(1) Newly designed patent needle, overcome the shortage of traditional needle antenna, no blind detection area

(2) Stable performance when mount in metal roof warehouse

(3) Slim cut-hole size, fit for tri-proof light, batten, troffer

(4) All parameters can be set by remote control

(5) Override function

(5) 5 years warranty




     2. Parameters


Input Operating Voltage 108-305V AC 50/60Hz
Rated Voltage 120/277V AC 50/60Hz
Stand-by Power ≤1W
Surge Test L--N: 1kV
Output Working Mode ON/OFF function, 1-10V step dimming
Type of Load Inductive or resistive Load
Load Capacity 2A @120Vac ,3A@277Vac, 3A@220-240Vac
Max. Surge Capacity

30A (50%Ipeak,twidth =500uS, 230Vac full load, cold start);
60A (50% Ipeak, twidth=200uS, 230Vac, full load, cold start)
Dim Interface 1-10V Dimming 1-10Vdimming
Sensor Parameters Operating Frequency 5.8 GHz ±75 MHz, ISM Band.
Transmitting power 0.5mW Max.
Hold time 5s/30s/1min/3min/5min/10min/20min/30min
Stand-by DIM Level 10%(1.4-1.6V), 20%(1.9-2.1V), 30%(2.9-3.1V) , 50% (4.9-5.1V)
Stand-by Period 0s/10s/1min/3min/5min/10min/30min/+∞
Detection Area 100%/75%/50%/25%
Daylight Sensor 5lux/15lux/30lux/50lux/100lux/150lux/Disable
Detecting Radius ≥4m(mount height 3m, moving speed 0.3m/s)
Mounting Height 6m Max
Detecting Angle 150°

Operating

Environment

 Operating Temperature -25℃…+60℃
Storage Temperature

Temperature:-40℃…+80℃;
Humidity:10%-95% (non-condensing)

Certificate

Standards

 Safety standards EN61058-1, UL60703-1
EMC standards EN300440; EN301489-1; EN55015; EN61547; EN61000-3-2; EN61000-3-3; EN62479
Environmental Requirement Compliant to RoHS
Certificate CE
Others Input/output terminal specifications Push-type terminal block; wire diameter: 0.75-1.5mm2
IP Rating IP20
Protection Class Class II
Installation Built-in installation
Dimension See dimension
Package Bubble bag + partition + outer box (K=A)
Net Weight 61.2G
Lifetime 5 years warranty@Ta 230V full load

Note
1. “N/A”means not available.
2. Detection area is effected on volume of motion object and motion speed. The detection area is tested by a 165cm height person and walking speed is 0.3m/s.



    3. Function



(1) On/OFF Function (stand-by period be set to “0”s)

(2) 2-step dimming function (stand-by period be set to “+∞”)

(3) 3-step dimming function (stand-by period be set to “0S/30S/10min/+∞”)

(4) Daylight priority





4.Dimension (mm)

0 - 10V Dimming Motion Microwave Sensor MC087V RC With Bipolar Antenna 0


5. Radiation pattern

(1) Ceiling mounting
0 - 10V Dimming Motion Microwave Sensor MC087V RC With Bipolar Antenna 1


(2) Wall mounting
0 - 10V Dimming Motion Microwave Sensor MC087V RC With Bipolar Antenna 2


6. Remote control

0 - 10V Dimming Motion Microwave Sensor MC087V RC With Bipolar Antenna 3
