Constant Current DALI Dimmable LED Driver 60W Push Dim With Memory Function
Place of Origin | China |
---|---|
Brand Name | Merrytek |
Certification | CE. ENEC. UKCA. CB |
Model Number | KL60C-PDii |
Minimum Order Quantity | 100pcs |
Price | Negotiation |
Packaging Details | Packed in bubble bag/white box firstly, and then reinforced with carton for outer packing |
Delivery Time | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 4-5 weeks after receiving deposit. |
Payment Terms | T/T |
Supply Ability | 20,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xOperate Voltage | 220-240Vac, 50Hz/60Hz | Approval | CE. ENEC. UKCA. CB |
---|---|---|---|
Operating Mode | Constant Current | Power Factor | ≥0.96@230Vac (full Load) |
Load Output Voltage Range | 80-300VDC | Full Load Output Power | 60W Max. |
Warranty | 5 Years Warranty | ||
Highlight | Merrytek DALI Dimmable LED Driver,60W DALI Dimmable LED Driver,Flicker free dali dimming led driver |

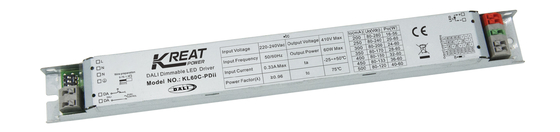

60W DALI Dimmable LED Driver IP20 Protection With Linear Metal Shell
- Flicker-free for whole dimming range
- Stand-by power below 0.5W
- Primary dimming with push button
- Built-in DALI interface DT6
- Protection: short circuit / over temperature/ over voltage
- Derating current for over high ambient temperature
- Push dim with memory function
- 5 year warranty
1. Parameters
Input | NO ISO series | KL60C-PDii | KL90C-PDii | KL120C-PDii | KL150C-PDii |
Operating Voltage | 198-264VAC 50Hz /60Hz | ||||
Rated Input Voltage | 220-240VAC 50Hz /60Hz | ||||
DC Input Voltage range | 176-280VDC | ||||
Input Cuttent | 0.33A Max. | 0.45A Max. | 0.6A Max. | 0.75A Max. | |
Input Inrush Current | <25A (Half current pulse width 100US) @230VAC | ||||
Power Factor | ≥0.96 @230VAC (Full load) | ||||
Total harmonic distortion | Typical: 15% (@230Vac, 100% load) | ||||
Stand-by Power | ≤0.5W(@230Vac when PUSH or DALIturn off) | ||||
Efficiency | 93%Max. @230VAC (Full load) | ||||
Wiring Method | Push terminal, wire cross section:0.5-1.0mm2 | ||||
Output | Operating mode | Constant Current | |||
Load type | LED | ||||
Ripple requirement (Flickering or flickering-Free) | Flicker value: less than 2% for whole dimming range | ||||
Start up time | <1s (@230Vac) | ||||
No-load output voltage | 410VDC Max. | ||||
Load output voltage range | 80-300VDC | 80-300VDC | 80-300VDC | 120-300VDC | |
Full load output power | 60W Max. | 90W Max. | 120W Max. | 150W Max. | |
Load output current | 200MA(80-300V) 250MA(80-240V) 300MA(80-200V) 350MA(80-170V) 400MA(80-150V) 450mA(80-133V) 500mA(80-120V) | 300MA(80-300V) 350MA(80-258V) 450MA(80-208V) 500MA(80-180V) 550MA(80-164V) 650mA(80-139V) 700mA(80-129V) | 300MA(80-330V) 350MA(80-330V) 450MA(80-266V) 500MA(80-240V) 550MA(80-219V) 650mA(80-185V) 700mA(80-172V) | 500MA(80-300V) 600MA(80-250V) 700MA(80-214V) 800MA(80-187V) 900MA(80-166V) 1000mA(80-150V) | |
Constant current/voltage Precision | Constant Current Precision ±5% | ||||
Wiring method | Push terminal, wire cross section:0.5-1.0mm2 | ||||
Control Method | Primary PUSH Dimming | Primary PUSH dimming (Max.lead length:20M) | |||
Dimming Range | Primary PUSH & DALI dimming: 0%-100% | ||||
DALI Dimming | DALI dimming (Max.lead length:300M) | ||||
Exception Protection Requirements | Output over temperature protection |
Yes, without self recovery function(Can be inquired) | |||
Output short circuit protection | Yes, without self recovery function(Can be inquired) | ||||
Operating Environment |
Operating temperature/ humidity | -25℃~50℃ Humidity:85% (Non-condensing) | |||
Storage temperature/ humidity | -40℃~80℃, Humidity:10%–95% | ||||
Max. case temp(Tc) | 80℃ | ||||
Safety& EMC |
EMC standard | EN55015 EN61547 EN61000-3-2 EN61000-3-3 | |||
DALI protocol standard | IEC62386-102 IEC62386-207 DT6 | ||||
Safety standard | EN61347-1 EN61347-2-13 | ||||
Certification | CE | ||||
Mains surge capability | 1 kV (@“L - N”) ; 2 kV (@“L/N - PE”) | ||||
Others | Degrees of protection | IP20 | |||
Type of protection | Class I | ||||
Installation type | Independent installation | ||||
Installation dimension | 284x30*20mm | ||||
Blackout memory function | Yes, PUSH blackout memory | ||||
PUSH dimming synchronization | 20 units Max. | ||||
Packaging requirement | white box+ Instructions Clapboard Outer Carton(K=A) | ||||
Weight | 200g | 220g | 260g | 270g | |
Life | 50000h @Ta full load | ||||
Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified. |
2. Dimension (Unit:mm)
3. Wiring Diagram
Fig. A Push Dimming
Fig.B DALI Dimming
4. Derating
5. Dimming curve
6. Current gear setting●:ON ○:OFF (SEC1 SEC2)
1 | 2 | 3 | KL60C-PDii | KL90C-PDii | KL120C-PDii | KL150C-PDii |
ON | ON | ON | 500MA(80-120V) | 700MA(80-129V) | 700MA(80-172V) | 1000MA(80-150V) |
- | ON | ON | 450MA(80-133V) | 650MA(80-139V) | 650MA(80-185V) | 900MA(80-166V) |
ON | - | ON | 400MA(80-150V) | 550MA(80-164V) | 550MA(80-219V) | - |
- | - | ON | 350MA(80-170V) | 500MA(80-180V) | 500MA(80-240V) | 800MA(80-187V) |
- | ON | - | 300MA(80-200V) | 450MA(80-208V) | 450MA(80-266V) | 070MA(80-214V) |
ON | - | - | 250mA(80-240V) | 350mA(80-258V) | 350mA(80-330V) | 600mA(80-250V) |
- | - | - | 200mA(80-300V) | 300mA(80-300V) | 300mA(80-330V) | 500mA(80-300V) |
7. ON/OFF & Description of Dimming Operation
A. Short press the PUSH switch (short press time 0.1S-1S), the LED driver will turn on or off.
B. Dimming:
Press and hold the PUSH switch (1S-8S), the LED driver can achieve dimming, brightening or dimming, the dimming range is 2-100%.
C. Memory:
PUSH dimming has dimming memory function.
D. Dimming synchronization:
The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15S
E. DALI dimming mode:
Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.
8. Matters needing Attention
1) The LED string must be connected to the load before turning on the input power, otherwise the LED string may be damaged.
2) After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.
