Product Details
Operate Voltage 220-240Vac, 50Hz/60Hz Approval CE. ENEC. UKCA. CB
Operating Mode Constant Current Power Factor ≥0.96@230Vac (full Load)
Load Output Voltage Range 120-300VDC Full Load Output Power 150W Max.
Warranty 5 Years Warranty
High Light

150W dimmable DALI LED driver

,

Push Terminal dimmable DALI LED driver

,

Flickering Free led driver dali dimmable

Leave a Message
Product Description

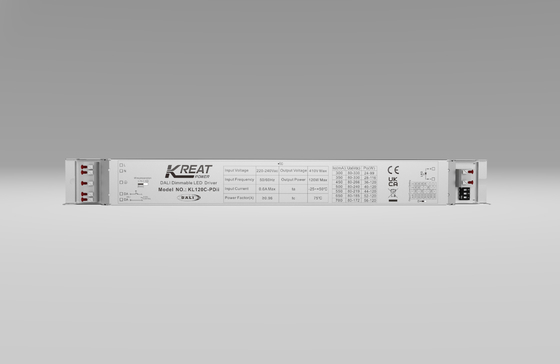

150W DALI & PUSH Dimmable LED driver 220-240VAC Operated 500-1000mA Output Linear metal shell



  • Flicker-free for whole dimming range
  • Stand-by power below 0.5W
  • Primary dimming with push button
  • Built-in DALI interface DT6
  • Protection: short circuit / over temperature/ over voltage
  • Derating current for over high ambient temperature
  • Push dim with memory function
  • 5 year warranty





1. Parameters

Input NO ISO series KL60C-PDii KL90C-PDii KL120C-PDii KL150C-PDii
Operating Voltage 198-264VAC 50Hz /60Hz
Rated Input Voltage 220-240VAC 50Hz /60Hz
DC Input Voltage range 176-280VDC
Input Cuttent 0.33A Max. 0.45A Max. 0.6A Max. 0.75A Max.
Input Inrush Current <25A (Half current pulse width 100US) @230VAC
Power Factor ≥0.96 @230VAC (Full load)
Total harmonic distortion Typical: 15% (@230Vac, 100% load)
Stand-by Power ≤0.5W(@230Vac when PUSH or DALIturn off)
Efficiency 93%Max. @230VAC (Full load)
Wiring Method Push terminal, wire cross section:0.5-1.0mm2
Output Operating mode Constant Current
Load type LED
Ripple requirement (Flickering or flickering-Free) Flicker value: less than 2% for whole dimming range
Start up time <1s (@230Vac)
No-load output voltage 410VDC Max.
Load output voltage range 80-300VDC 80-300VDC 80-300VDC 120-300VDC
Full load output power 60W Max. 90W Max. 120W Max. 150W Max.
Load output current 200MA(80-300V) 250MA(80-240V) 300MA(80-200V) 350MA(80-170V) 400MA(80-150V) 450mA(80-133V) 500mA(80-120V) 300MA(80-300V) 350MA(80-258V) 450MA(80-208V) 500MA(80-180V) 550MA(80-164V) 650mA(80-139V) 700mA(80-129V) 300MA(80-330V) 350MA(80-330V) 450MA(80-266V) 500MA(80-240V) 550MA(80-219V) 650mA(80-185V) 700mA(80-172V) 500MA(80-300V) 600MA(80-250V) 700MA(80-214V) 800MA(80-187V) 900MA(80-166V) 1000mA(80-150V)
Constant current/voltage Precision Constant Current Precision ±5%
Wiring method Push terminal, wire cross section:0.5-1.0mm2
Control Method Primary PUSH Dimming Primary PUSH dimming (Max.lead length:20M)
Dimming Range Primary PUSH & DALI dimming: 0%-100%
DALI Dimming DALI dimming (Max.lead length:300M)
Exception Protection Requirements Output over temperature
protection
Yes, without self recovery function(Can be inquired)
Output short circuit protection Yes, without self recovery function(Can be inquired)

Operating

Environment

Operating temperature/ humidity -25℃~50℃ Humidity:85% (Non-condensing)
Storage temperature/ humidity -40℃~80℃, Humidity:10%–95%
Max. case temp(Tc) 80℃

Safety& EMC

EMC standard EN55015 EN61547 EN61000-3-2 EN61000-3-3
DALI protocol standard IEC62386-102 IEC62386-207 DT6
Safety standard EN61347-1 EN61347-2-13
Certification CE
Mains surge capability 1 kV (@“L - N”) ; 2 kV (@“L/N - PE”)
Others Degrees of protection IP20
Type of protection Class I
Installation type Independent installation
Installation dimension 284x30*20mm
Blackout memory function Yes, PUSH blackout memory
PUSH dimming synchronization 20 units Max.
Packaging requirement white box+ Instructions Clapboard Outer Carton(K=A)
Weight 200g 220g 260g 270g
Life 50000h @Ta full load
Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified.



2. Dimension (Unit:mm)

150W Dimmable DALI LED Driver Push Terminal Flickering Free Independent Installation 0



3. Wiring Diagram

150W Dimmable DALI LED Driver Push Terminal Flickering Free Independent Installation 1

Fig. A Push Dimming



150W Dimmable DALI LED Driver Push Terminal Flickering Free Independent Installation 2

Fig.B DALI Dimming















4. Derating

150W Dimmable DALI LED Driver Push Terminal Flickering Free Independent Installation 3

5. Dimming curve

150W Dimmable DALI LED Driver Push Terminal Flickering Free Independent Installation 4150W Dimmable DALI LED Driver Push Terminal Flickering Free Independent Installation 5





6. Current gear setting●:ON ○:OFF (SEC1 SEC2)



1 2 3 KL60C-PDii KL90C-PDii KL120C-PDii KL150C-PDii
ON ON ON 500MA(80-120V) 700MA(80-129V) 700MA(80-172V) 1000MA(80-150V)
- ON ON 450MA(80-133V) 650MA(80-139V) 650MA(80-185V) 900MA(80-166V)
ON - ON 400MA(80-150V) 550MA(80-164V) 550MA(80-219V) -
- - ON 350MA(80-170V) 500MA(80-180V) 500MA(80-240V) 800MA(80-187V)
- ON - 300MA(80-200V) 450MA(80-208V) 450MA(80-266V) 070MA(80-214V)
ON - - 250mA(80-240V) 350mA(80-258V) 350mA(80-330V) 600mA(80-250V)
- - - 200mA(80-300V) 300mA(80-300V) 300mA(80-330V) 500mA(80-300V)





7. ON/OFF & Description of Dimming Operation

A. Short press the PUSH switch (short press time 0.1S-1S), the LED driver will turn on or off.

B. Dimming:

Press and hold the PUSH switch (1S-8S), the LED driver can achieve dimming, brightening or dimming, the dimming range is 2-100%.

C. Memory:

PUSH dimming has dimming memory function.

D. Dimming synchronization:

The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15S

E. DALI dimming mode:

Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.



8. Matters needing Attention

1) The LED string must be connected to the load before turning on the input power, otherwise the LED string may be damaged.

2) After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.
