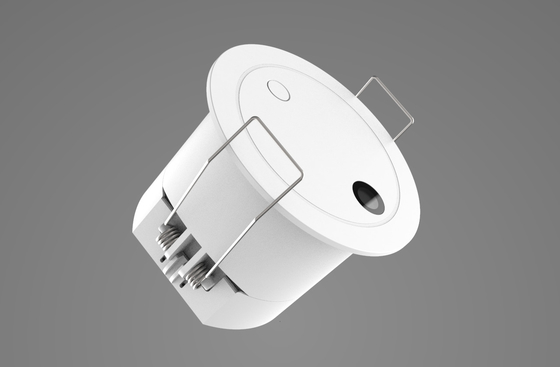

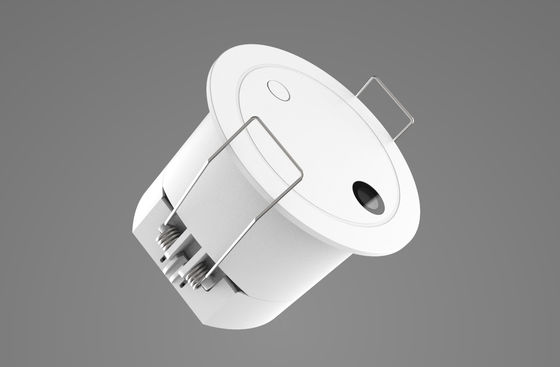

Recessed Mounting 24GHz LifeBeing Sensor Built In Tuya ZigBee Wireless Module

  • Recessed Mounting 24GHz LifeBeing Sensor Built In Tuya ZigBee Wireless Module
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MSA201 Z
Minimum Order Quantity 50PCS
Packaging Details Giftbox
Delivery Time 5 to 8 working days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

Recessed Mounting LifeBeing Sensor

,

Wireless Module LifeBeing Sensor

,

Tuya ZigBee merrytek motion sensor
Leave a Message
Product Description

24GHz Tuya ZigBee LifeBeing Sensor



MSA201 Z is a recessed mounting ZigBee wireless networking lifebeing sensor, which detects movement, slight motion and breathing signals.

Compact design, built in Tuya ZigBee wireless module,widely applied in office, meeting room, class room, hotel, smart home and other IOT application area.



Working voltage 220-240Vac 50Hz/60Hz
Power consumption ≤1W 230V AC
Communication mode ZigBee
Zigbee frequency

2.4GHz-2.484GHz, transmitting power: 10dB,

Receiving sensitivity: -101dBm ± 2dB
MW sensor frequency 24GHz-24.25GHz ISM band
Transmitting Power 3dBM Max
Detection angel 100° (XZ Plane) 100° (YZ Plane)
Detection range(radius) Normal motion: 3-4m ; Minor motion: 3-4m ; Breath signal: 2.5-3m
Detection sensitivity 0% 25% 50% 75% 100% (by remote MH10 or Tuya APP)
Hold time 30s /1min / 2min/ 3min /5min /10min /20min/30min (by remote MH10 or Tuya APP)
Daylight detection Monitoring ambient lux level and report if ambient lux level change over preset change value; Immediately report if lux abruptly change. Lux change value (10lux-100lux) can be set in App.
Daylight detection range 5-1200Lux (sensor mount 3m in height, and monitor the reflection daylight value
Mounting height 2.5-4.0m (typical)
Installation Recessed. Cut hole Φ55mm
Wiring Press-in Type Terminals, wire diameter: 0.75mm2-1.5mm2
Operating Temp. 0℃...+50℃
Storage Temperature -25℃...+80℃
Net weight 59±3g
Packing Color box
