5.8G Lifebeing Sensor Breathing Detecting ON OFF Function 220-240v AC Input MSA015S RC
Place of Origin | China |
---|---|
Brand Name | Merrytek |
Certification | CE |
Model Number | MSA015S RC |
Minimum Order Quantity | 100pcs |
Price | Negotiation |
Packaging Details | Color box + flat card + outer box (K=A) |
Delivery Time | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
Payment Terms | T/T or Western Union or PayPal |
Supply Ability | 10,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xDetecting Technology | Movement / Minor Motion / Breathing | Working Mode | ON/OFF |
---|---|---|---|
Rated Voltage | 220-240VAC 50/60Hz | Stand-by Power | <0.5W |
Load Capacity | 400W(inductive), 800W(resistive) | ||
High Light | 5.8G Lifebeing Sensor,Breathing Detecting Lifebeing Sensor,ON OFF Function Lifebeing Sensor |

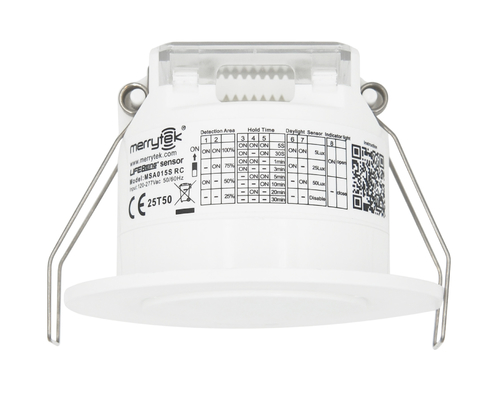

MSA015S
5.8G LifeBeing sensor Breathing Detecting Technology/ON-OFF
1) Adopt Merrytek patented LifeBeing detected technology,which can detect movement, slight motion and breathing signal.
2) Built-in daylight sensor for energy saving.
3) Support flush mounting installation
4) All parameters can be set via DIP switch & remote control.
5) Low impedance antenna for environmental adaptation
6) 5 years warranty.
Rated Voltage | 220-240VAC 50/60Hz |
Stand-by Power | <0.5W |
Load Capacity | 400W (Inductive) 800W (resistive) |
Detecting Technology | Movement / minor motion / breathing |
Working Mode | On-off |
Operating Frequency | 5.8 GHz ±75 MHz, ISM band |
Transmitting Power | 0.5mW Max. |
Hold Time | 5S/3Min/5Min/10Min/15Min/20Min/25Min/30Min |
Detection Area | 100%/75%/50%/25% |
Daylight Sensor | 5lux/25lux/50lux/Disable |
Mounting Height | 3-6m |
Operating Temperature | -25~55℃ |
IP Rating | IP20 |
