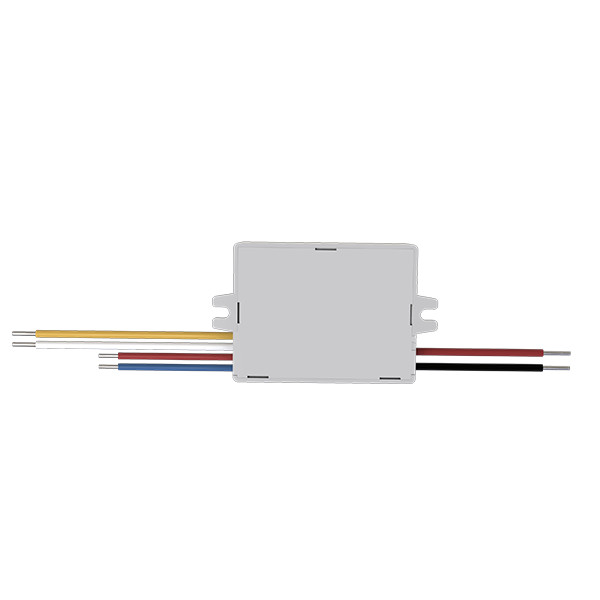

DALI2 led driver KL10C-PDii with Primary push dim flicker free design for downlight and linear light

Basic Information
Place of Origin: China
Certification: CE
Model Number: KL10C-PDii
Minimum Order Quantity: 100
Price: Negotiation
Packaging Details: Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time: 1. Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms: T/T or Paypal
Supply Ability: 10,000pcs per month
Detail Information
Rated Input Voltage: 220-240Vac 50Hz /60Hz DC Input Voltage Range: 200-240Vdc
Operating Mode: Constant Current Control Method: Primary PUSH Dimming & DALI Dimming
Input Inrush Current: <10A (Half Current Pulse Width 100US) @230VAC Power Factor: 0.95@230Vac Full Load
Total Harmonic Distortion: Typical: 20% (@230Vac, 100% Load) Stand-by Power: ≤0.5W(@230Vac)
Efficiency: 83%Max. @230VAC (Full Load) Ripple Requirement (Flickering Or Flickering-Free): Flicker Value: Less Than 2% For Whole Dimming Range
O-load Output Voltage: 36VDC Max Output Current: 200mA , 300mA, 500mA(single Output Current)
Ouptut Voltage: 3-28Vdc(200/300mA); 3-21Vdc(500mA) Primary PUSH Dimming: Primary PUSH Dimming (Max.lead Length:20M)
DALI Dimming: DALI Dimming (Max.lead Length:300M) Protection: Short Circuit / Over Temperature/ Over Voltage
Operating Temperature/ Humidity: -25℃~50℃ Humidity:85% (Non-condensing) DALI Protocol Standard: IEC62386-102 IEC62386-207 DT6 251 252 253
Withstand Voltage: 3750Vac, 5mA, 60s (Input “L N”- Output Type Of Protection: Class II
Installation Dimension: 64.5*40*23mm PUSH Dimming Synchronization: 20 Units Max
Life Time: 50000h @Ta Full Load

Product Description

 Flicker-free for whole dimming range

 Stand-by power below 0.5W

 Primary dimming with push button

 Built-in DALI interface DT6

 Protection: short circuit / over temperature/ over voltage

 Derating current for over high ambient temperature

 Push dim with memory function

 5 year warranty


Please download the spec. below:

KL10C-PDii Spec 2022.11.09.pdf
