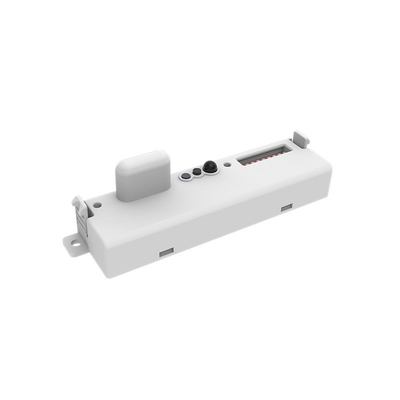

MC087D 99 Dimming Function Motion Sensor Remote Control DIP Switches For Parking Lots

  • MC087D 99 Dimming Function Motion Sensor Remote Control DIP Switches For Parking Lots
  • MC087D 99 Dimming Function Motion Sensor Remote Control DIP Switches For Parking Lots
Place of Origin Shenzhen
Brand Name merrytek
Certification CE
Model Number MC087D 99
Minimum Order Quantity 100
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment(when in stock). 2, Bulk order: 4~5 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10000/per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Voltage Range 12±1Vdc Ripple Voltage <100mVp-p
Daylight Priority (5Lux/15Lux/30Lux/50Lux) 100Lux 150Lux / 150Lux 200Lux 300Lux Working Mode Dimming Signal & 0-10V Signal
Mounting Height 3m (6m Max ) Working Environment Temperature -25~60℃
Storage Temperature -40~80℃ Humidity: ≤85% Non-condensing Working Current 20±3mA
Transmitting Power 1mW Max IP Rating IP20
Installation Built-in Wiring 3pin 2.0mm Terminal
Package Clapboard + Carton(K=A) Life Time 5 Years Warranty@Ta
High Light

Dimming Function Motion Sensor

,

Dimmable Motion Sensor For Parking Lots

,

DIP Switches Dimmable Motion Sensor
Leave a Message
Product Description

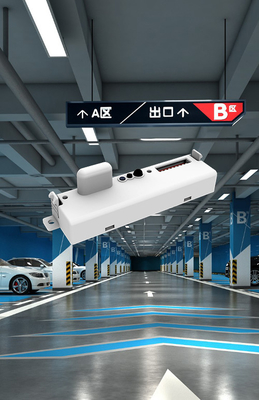

MC087D 99---Dimming function motion sensor, Daylight priority function,  Widely used in parking lots and other places



Please download the spec.sheet:

MC087D 99 series spec 2023.11.01(1).pdf





Features



1.12V DC input, 0-10V dimming signal or PWM dimming signal output, suitable for DC systems or LED driver with 12V DC auxiliary power output.

2. Three-step and two-step dimming is optional, detection area is adjustable.

3. Patented antithetical dipoles antenna design and Adaptive Algorithm, which effectively solves the problem of low installation height of columnar antenna sensors and false triggering caused by side-lobe radiation of the antenna when installed in a metal room.

4.  Widely used in parking lots and other places, it solves the problem that traditional sensor cannot detect vehicles or the vehicle cannot be detected until it passes directly under the sensor.

5.Sensor parameters can be set by remote control and DIP switches, easy to configured.







Function





MC087D 99 Dimming Function Motion Sensor Remote Control DIP Switches For Parking Lots 0

MC087D 99 Dimming Function Motion Sensor Remote Control DIP Switches For Parking Lots 1

MC087D 99 Dimming Function Motion Sensor Remote Control DIP Switches For Parking Lots 2



MC087D 99 Dimming Function Motion Sensor Remote Control DIP Switches For Parking Lots 3
