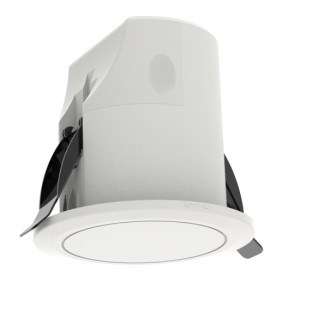

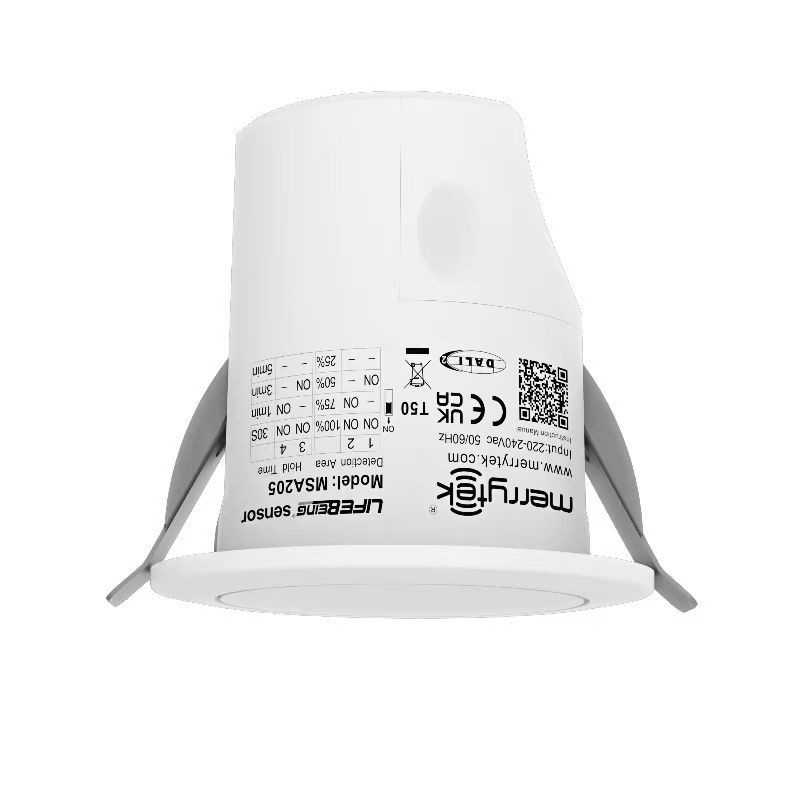

24GHz Lifebeing sensor DALI2 compatible presence sensors for smart office

Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MSA205
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details Color box + flat card + outer box (K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or Western Union or PayPal
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dement / Minor Motion / Breathing / Daylight Harvestingtecting Technology Movement / Minor Motion / Breathing / Daylight Harvesting Working Mode DALI 2.0
Rated Voltage 220-240V AC Communication Mode DALI BUS
Consumption Power ≤1W @230V AC Mounting Height 2.5-4.0m (Typical Height:3m)
Daylight Lux Range 5-1200Lux Sensor Parameters Via DIP Switches Or Remote Control
Leave a Message
Product Description

24GHz Lifebeing sensor DALI2 compatible presence sensors for smart office





1. Product Features/Descriptions

MSA205 is a 24GHz DALI 2.0 millimeter microwave motion sensor, which carries Merrytek exclusive microwave antenna with a big detection area high sensitivity, and accurate algorithm. Thanks to Merrytek's sophisticated hardware and software, MSA205 can precisely detect chest minor motion caused by human breath and communicate with other devices by DALI 2.0 protocol to provide fantastic automatic smart control in smart homes, smart hotels, and smart office scenarios.

Input/Output Input voltage 220-240V AC
Rated voltage 230V AC
Consumption power ≤1W @230V AC
Communication mode DALI BUS
Motion datasheet RF frequency 24GHz -24.25GHz,ISM band
TX power 3dBmMax
Detection sensitivity

DIP switch setting: 100% 75% 50% 25%

MH10 remote setting:100% 75% 50% 25%

Hold Time

DIP switch setting: 5S 1Min 3Min 5Min

MH10 remote setting:5S/ 30S /1Min / 3Min /5Min /10Min /20Min/30Min

Daylight threshold N/A
Daylight lux range 5-1200Lux

Detection range

(based on 100% sensitivity )

Movement motion(based on 3m height mounting):radius 2-3m

Minor motion(based on 3m height mounting):radius 2-3m

Human presence(based on 3m height mounting):radius 2-3m

Rated mounting height 2.5-4.0m (Typical height:3m)
3db beam angel 80°(XZ axis)
96°(YZ axis)
Application environment Working temperature 0℃...+50℃
Storage -40℃~+80℃
Certificate RF certificate In accordance with FCC/RED
Environmental certificate In accordance with EU RoHS
IP rate IP20
Remark: “N/A” means Not applicable to this product





2. Product Application

*Smart home control

*Intelligent lighting control

*Smart hotel control

*Smart energy consumption control

*Home security guard





3. Dimension

24GHz Lifebeing sensor DALI2 compatible presence sensors for smart office 0



4. Function

24GHz Lifebeing sensor DALI2 compatible presence sensors for smart office 1

24GHz Lifebeing sensor DALI2 compatible presence sensors for smart office 2

5. Wiring

Single Mode:

24GHz Lifebeing sensor DALI2 compatible presence sensors for smart office 3

Grouping Mode:

24GHz Lifebeing sensor DALI2 compatible presence sensors for smart office 4



6. Initialization

For the initial 20S interval once our motion sensor is powered, our motion sensor’s sensing function is disabled and can’t respond to human motion. After that, our motion sensor can work normally and its indication light can be turned on or off by our MH10 remote control.





7. Factory Setting

Detection Sensitivity: 100%            Hold Time: 1Minute



8. Installation

  1. Cut out a φ70~75mm hole
  2. Carefully loose the screw and cable clip after open the rear cover
  3. Securely wire cable into the terminal
  4. Firmly screw down the cable clip and cover it well
  5. Put the spring clip into the hole and fasten it well
  6. 24GHz Lifebeing sensor DALI2 compatible presence sensors for smart office 5



7. Attention

* Our microwave motion sensor shall be installed by a professional electrician and away from a metal material or movement objects,such as water pipes,oscillating fan,s etc to avoid unwelcome detection

* Our microwave motion sensor shall be installed more than 2m away from another

* Our microwave motion sensor can not be directly lit by other lighting to avoid daylight lux detection disabled

* Our microwave motion sensor indication light can be turned on by the HS button and off by the LS button in our MH10 remote control

* Our microwave motion sensor detection area and hold time are adjustable by the DIP switch and remote control, and customers shall set the most suitable detection area and hold time to cover the room

* Our microwave motion sensor detection area might be different according to different room sizes and different people
