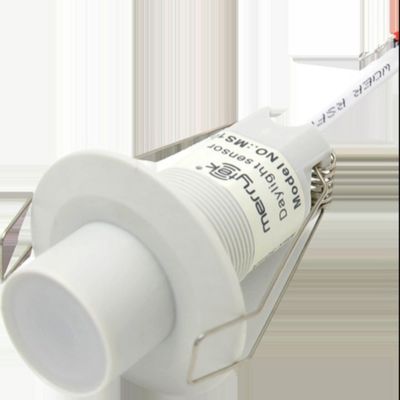

1-10V Photocell Sensor Flush Mounted Daylight Sensor Switch For Office

  • 1-10V Photocell Sensor Flush Mounted Daylight Sensor Switch For Office
Place of Origin China
Brand Name Merrytek
Certification CE ,EMC
Model Number MS10 B
Minimum Order Quantity 300pcs
Price Negotiation
Packaging Details Packed in plastic bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 3 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 20,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage 1~10Vdc Daylight Regulating Range 100-2000Lux
IP IP20 Warranty 5 Years
Detection Range 3-4m 1-10V Interface ＜50mA
Working Temperature 0℃-55℃ Product Size 90*130mm
High Light

1-10V Photocell Sensor

,

Daylight Sensor Switch For Office

,

Flush Mounted Daylight Sensor Switch
Leave a Message
Product Description

1-10V Daylight Harvesting Control Function daylight sensor for high bay



Parameter

Input Input Voltage 1-10V DC
Rated Voltage 1-10V DC
Sensor Parameters Detection Range 3-4m
Daylight Regulating Range 100-2000Lux
Dim Interface 1-10V interface <50 mA
  Dimming mode Lead connection: red is the positive pole of port 1-10v; black is the negative pole of port 1-10v

Operating

Environment

 Working Temperature 0℃…+55℃
Storage Temperature -35℃…+80℃
Certificate Standards Environmental Requirement Compliant with RoHS
Certificate CE
IP Rating IP20
Protection Class Class 2
Installation Built-in installation
Product Size 90*130 mm
Package White bag+Clapboard + Carton(K=A)
Net Weight A:26.7g B:29.8g
Warranty

5 years warranty



How the daylight sensor works:

Constant light functions

1-10V Photocell Sensor Flush Mounted Daylight Sensor Switch For Office 0

Dimension (mm)



1-10V Photocell Sensor Flush Mounted Daylight Sensor Switch For Office 1

Wiring



1-10V Photocell Sensor Flush Mounted Daylight Sensor Switch For Office 2



Structure



1-10V Photocell Sensor Flush Mounted Daylight Sensor Switch For Office 3

DIP Switch Setting

1-10V Photocell Sensor Flush Mounted Daylight Sensor Switch For Office 4



1-10V Photocell Sensor Flush Mounted Daylight Sensor Switch For Office 5

8. Application Notice
1) To be equipped with active 1-10v dimming power supply for use!
2) Pay attention to the positive and negative terminals of the leads when wiring and installation.
