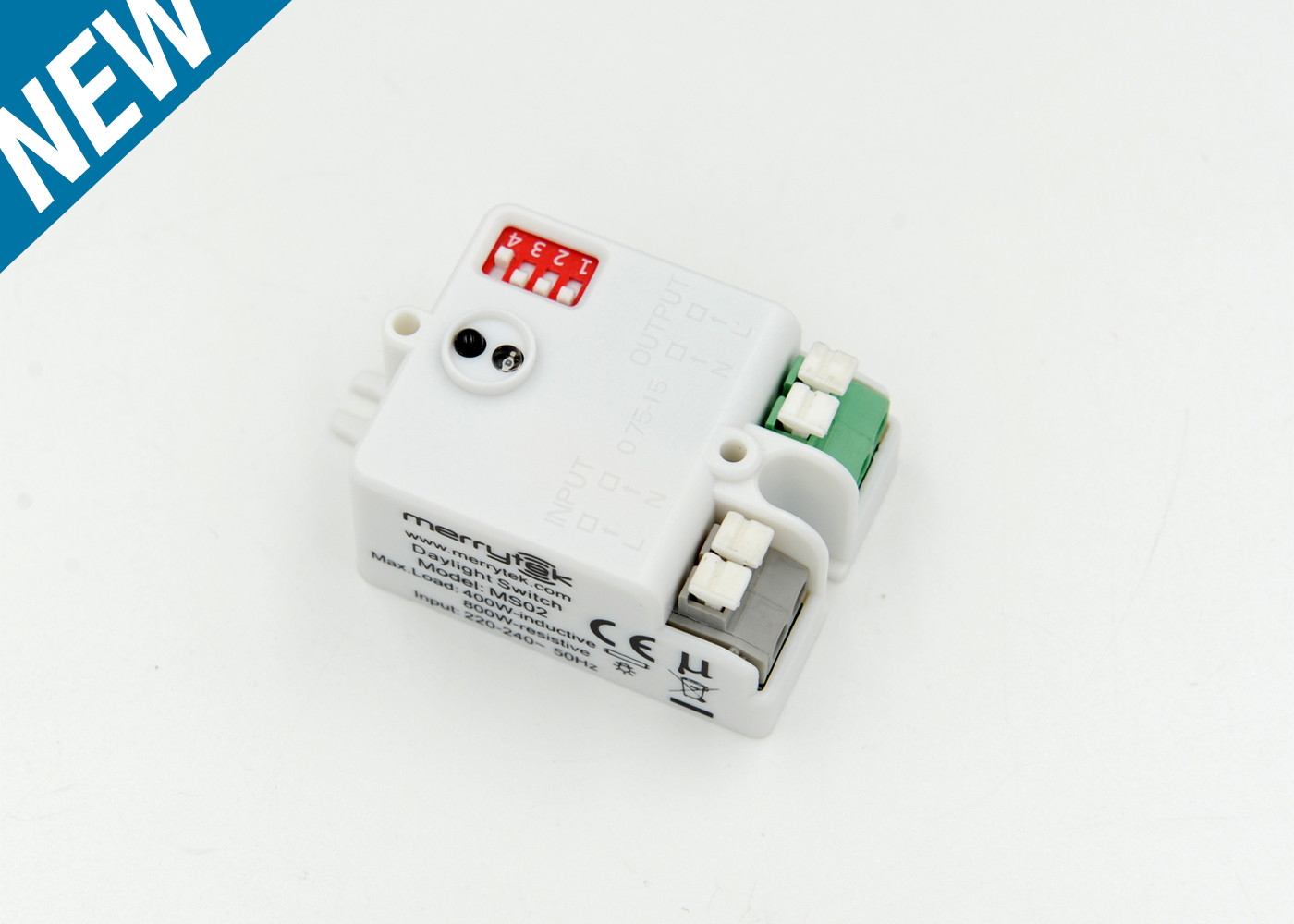

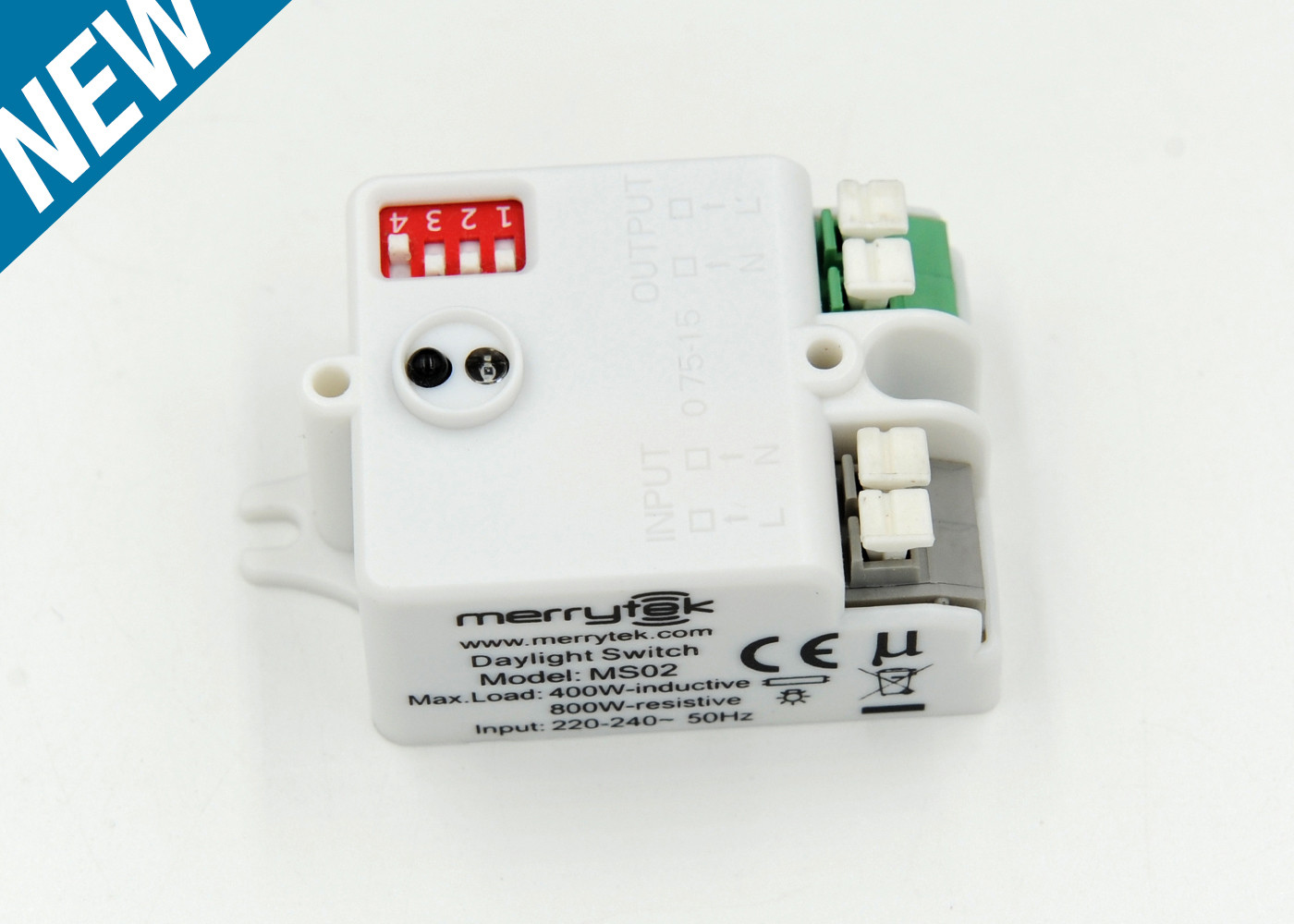

IP20 Built-In LED Lighting Fixtures Daylight Switch Sensor ON/OFF Function

  • IP20 Built-In LED Lighting Fixtures Daylight Switch Sensor ON/OFF Function
  • IP20 Built-In LED Lighting Fixtures Daylight Switch Sensor ON/OFF Function
  • IP20 Built-In LED Lighting Fixtures Daylight Switch Sensor ON/OFF Function
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MS02
Minimum Order Quantity 300pcs
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or western Union
Supply Ability 20,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Built- In Daylight Sensor Input Voltage 220 - 240Vac 50Hz/60Hz
Power Factor 0.9 Output Voltage 220 - 240Vac
Output Power 400w Max Operation Temperature -20℃~50℃
Switch On Lux Value 2Lux,10Lux,25Lux,50Lux,100Lux,150Lux,200Lux Switch Off Lux Value 25Lux,50Lux,100Lux,150Lux,200Lux,250Lux,300Lux
IP Level IP 20
High Light

outdoor daylight sensor

,

daylight switch sensor

,

LED Lighting Fixtures Daylight Switch Sensor
Leave a Message
Product Description

IP20 Built-in LED Lighting Fixtures Daylight Haversting sensor ON/OFF function



Description

1.MS02 is designed to measure ambient brightness level,then switch on/ off load accroding to measured lux value

2.Apply patent daylight sensor technolgy to support built-in installation.

3.Adavnced algorithm to switch on/off at preset lux value.

4.Multi-selection of switch on/off lux value for different environment application.

5.Input and output are 220-240Vac,applicable for any kinds of luminaires.

6.Compact size design:50 x 36 x 23mm

7.On-off function

8.Widely applied in Garden,balcony,cottage,villadom.

9.MS02 is a patent daylight sensor switch. It automatically switches on lights at dusk to stay illuminating continuously through the night. And, switch off lights at dawn.

10.Normally, such daylight sensor cannot be installed towards LED light as it will be disturbed by LED light.

11.Merrytek MS02 adopts 2pcs photodiodes and appropriate programming to distinguish sunlight and LED light, then can be built in LED lighting fixtures.





Mechanical Specification



IP20 Built-In LED Lighting Fixtures Daylight Switch Sensor ON/OFF Function 0



Night Light Function



IP20 Built-In LED Lighting Fixtures Daylight Switch Sensor ON/OFF Function 1



Specifications



Input voltage

220-240V ac

Output voltage

220-240Vac

Power factor

0.9

Output power

400w max

Working mode

on-off function

Switch on lux level

        2Lux,10Lux,25Lux,50Lux,100Lux,150Lux,200Lux

Switch off lux level

25Lux,50Lux,100Lux,150Lux,200Lux,250Lux,300Lux

IP Level

IP 20

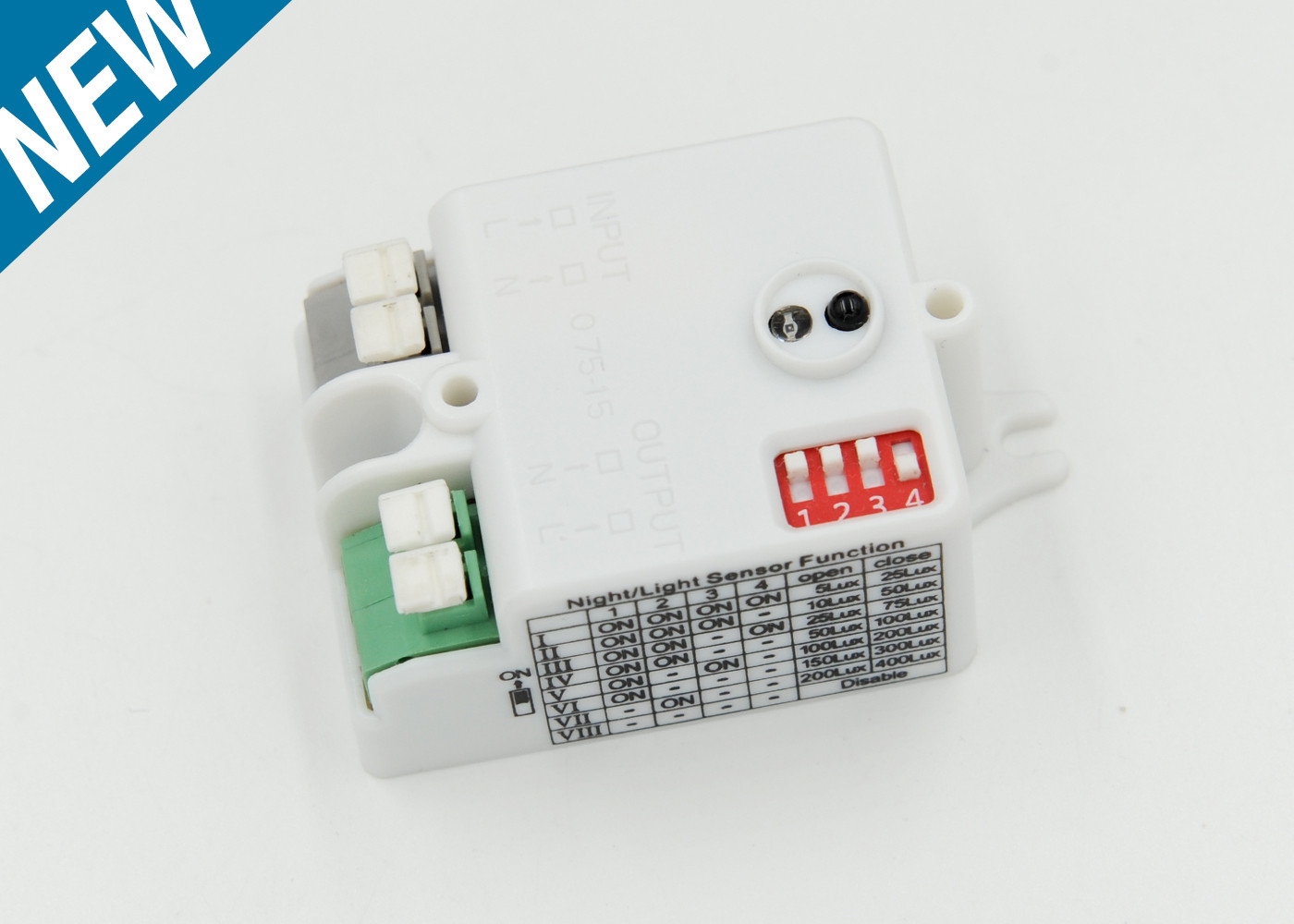

Settings

IP20 Built-In LED Lighting Fixtures Daylight Switch Sensor ON/OFF Function 2

Wiring:

IP20 Built-In LED Lighting Fixtures Daylight Switch Sensor ON/OFF Function 3



Applications

Widely applied in Garden,balcony,cottage,villadom.
