Product Details
Rated Voltage 220-240V AC 50Hz/60Hz Working Power ≤1W
Function ON/OFF Function Hold Time 5s /30s/1min / 2min/ 3min /5min /10min / 20min / 30min
Detection Area 0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% Working Frequency 24GHz-24.25GHz ISM Wave.
Detecting Area (radius) ≥3m (0.3m/s) Mounting Height 2.5-4m
IP Rating IP20 Installation Flush-mounted/ Surface Mounted
Cut Size Φ55mm-Φ60m
Leave a Message
Product Description

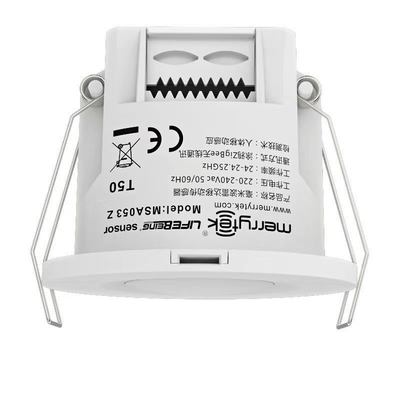

220-240Vac input IP20 Zigbee control wireless motion sensors for office application





1. Features



1) Timely motion detection response

2) Supports TUYA ZigBee wireless communication

3) Set parameters by TUYA APP.

4) Sensing function based on millimeter wave radar technology



2. Parameters

Input/Output Voltage Range 220-240Vac 50Hz/60Hz
Rated Voltage 220V AC
Working Current 50mA max
Working Power ≤1W 230V AC
Wireless module Communication Model Frequency 2.4GHz-2.484GHz ZigBee Transmitting Frequency: 10dB Receiving Sensitivity: -101±2dBm
Sensor Parameter Transmitting Working Frequency 24GHz-24.25GHz ISM Wave.
Transmitting Power 5mW Max.
Detection Area

0% 25% 50% 75% 100% (set by remote control MH10)

0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100%(set by APP)

Hold Time

5s /30s /1min / 2min/ 3min /5min /10min / 20min / 30min

(set by remote control MH10)

5s /30s/1min / 2min/ 3min /5min /10min / 20min / 30min(set by APP)

Detecting Range

(100% detection area, radius)

Movement: 2-3m (at 3m height)
Mounting Height 2.5-4.0m typical value: 3m
3db Beam Angle 100° (XZ field)
100° (YZ field)
Environment Working Temperature 0℃...+50℃
Storage Temperature -25℃~+80℃
Certificate Standard Certificate FCC/RED
Environmental Requirement Compliant to RoHS
IP Rating IP20
Note: "N/A" means not available.



3. Dimension

220-240Vac input IP20 Zigbee control wireless motion sensors for office application 0

4. Wiring Diagram

220-240Vac input IP20 Zigbee control wireless motion sensors for office application 1

6. Function

220-240Vac input IP20 Zigbee control wireless motion sensors for office application 2



7. Start Process & Initialization

When power is on, the indicator turns off after flashing for 10 seconds. The sensor does not detect moving signals during initialization. Turning ON/OFF indicator, hold time, and detection area can be controlled by APP.







8. Installation Instruction

Flush mounted

(1) Opening 55mm

(2) Use a flat-blade screwdriver to remove the wiring cap

(3) Connect wire to terminal

(4) Install the wire cover and press the wire tightly

(5) Remove the lower cover with a flat-head screwdriver

(6) Adjust DIP and set parameters

(7) Cover the top cover so that the buttons are tightly fastened to the main body

(8) Bend the spring clip backward to push the product into the opening in the ceiling

(9) Ensure installation is stable and reliable

220-240Vac input IP20 Zigbee control wireless motion sensors for office application 3



9. Application Notice

1. The product should be installed by a professional electrician.

2. Product should be kept as far away as possible from large-area metal plates, glass, and other substances with high medium density to avoid false triggering.

3. The antenna surface of the product and its nearby circuits should avoid the flow of large currents, so as not to affect the normal operation of the product.

4. When installing multiple products in one place, please try to ensure that the antenna surfaces of the products are parallel to each other and do not face each other. The installation distance between products should be greater than 1.5m. Dense installation may cause false reports.

5. The antenna surface of the product should avoid facing the AC drive power supply, and stay away from the rectifier bridge, transformer, switch tube, and other high-power devices of the drive power supply, to avoid power frequency signals from interfering with the microwave module.

6. Avoid using objects that vibrate for a long time around the product, such as shaking head fans and so on. The vibration signal will be regarded as a moving signal to trigger the product.

7. Avoid unnecessary lights illuminating the product's illuminance sensor detection window and interfere with the measurement of ambient light.

8. The microwave sensor can penetrate the building wall, and the microwave that penetrates outside the wall may cause false triggering when it detects moving objects. To avoid false triggering, when installing, please choose the appropriate detection area, for example:

A. When the product is used in a room whose length and width is about 2m or less, the detection area should be set to 25%(application scenes: washroom, sitting room );

B. When the product is used in a room whose length and width is about 3m, the detection area should be set to 50%(application scenes: washroom, hallway, sitting room );

C. When the product is used in a room whose length and width is about 4m, the detection area should be set to 75%(application scenes: small office, meeting room, library );

D. When the product is used in a room whose length and width is about 5m or more, the detection area should be set to 100%(application scenes: large office, meeting room, library ).

Note: The setting detection area depends on the actual environment( detection area parameters above application scenes are for reference only).

9. The detection distance is related to the moving speed of the moving object, the size of the moving object, the installation height, the installation angle, whether the installation environment is empty, the material of the reflector and other factors. The detection distances given in the specification are typical values, which are obtained by testers at height of 165cm and weight of 65kg and tested in an indoor open environment.

10. Product specifications and parameters may be optimized without prior notice.



9. Remote Control Setting

220-240Vac input IP20 Zigbee control wireless motion sensors for office application 4
