46W Dali Dimmable Driver Adjustable 700mA to 1050mA Operating Voltage 198-264VAC

  • 46W Dali Dimmable Driver Adjustable 700mA to 1050mA Operating Voltage 198-264VAC
  • 46W Dali Dimmable Driver Adjustable 700mA to 1050mA Operating Voltage 198-264VAC
  • 46W Dali Dimmable Driver Adjustable 700mA to 1050mA Operating Voltage 198-264VAC
  • 46W Dali Dimmable Driver Adjustable 700mA to 1050mA Operating Voltage 198-264VAC
  • 46W Dali Dimmable Driver Adjustable 700mA to 1050mA Operating Voltage 198-264VAC
Place of Origin Shenzhen, China
Brand Name KREATPOWER
Certification ENEC, SEMKO, CB, CE
Model Number KL46C-PDii
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details white box+ Instructions Clapboard Outer Carton（K=A）
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 4-5 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 20,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Voltage 198-264VAC 50Hz /60Hz Power Factor ≥0.95 @230VAC （Full Load）
Stand-by Power ≤0.5W（@230Vac） Efficiency 87%Max. @230VAC （Full Load）
Operating Mode Constant Current Installation Dimension 123*79*24mm
Weight 155g Lifetime 50000h @Ta Full Load
High Light

198-264VAC Dali Dimmable Driver

,

Adjustable Dali Dimmable Driver

,

46W Dali Dimmable Driver
Leave a Message
Product Description

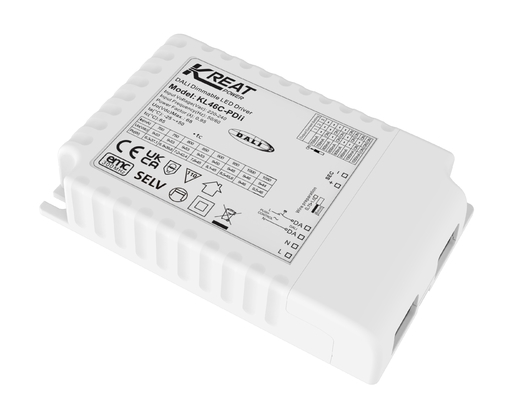

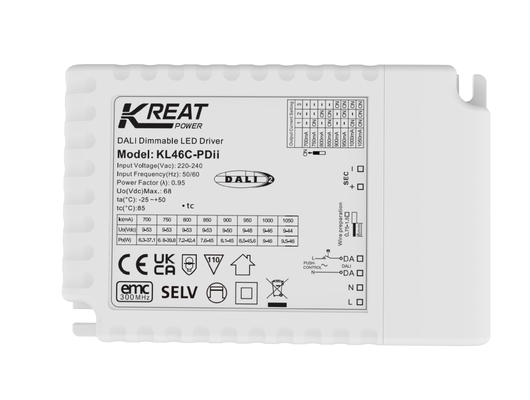

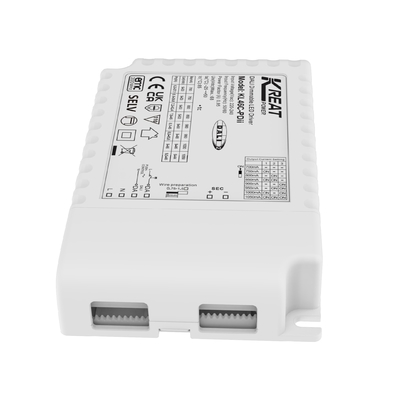

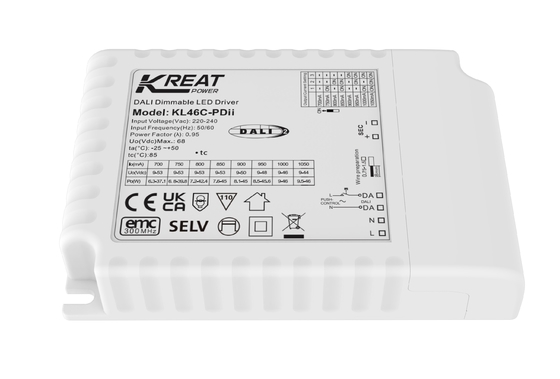

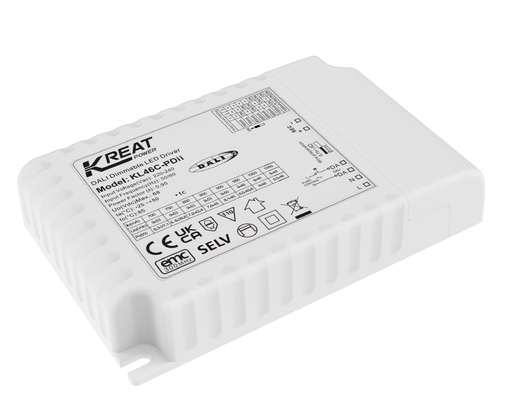

700mA to 1050mA adjustable 46W Dali dimmable driver





【Product Feature】

  • Flicker-free for whole dimming range
  • Stand-by power below 0.5W
  • Primary dimming with push button
  • Built-in DALI interface DT6
  • Protection: short circuit / over temperature/ over voltage
  • Derating current for over high ambient temperature
  • Push dim with memory function
  • 5 year warranty



  • Parameters
Input Operating Voltage 198-264VAC 50Hz /60Hz
Rated Input Voltage 220-240VAC 50Hz /60Hz
DC Input Voltage range 200-240VDC
Input Current 0.23A Max.
Input Inrush Current <20A (Half current pulse width 100US) @230VAC
Power Factor ≥0.95 @230VAC (Full load)
Total Harmonic Distortion Typical: 13% (@230Vac, 100% load)
Stand-by Power ≤0.5W(@230Vac)
Efficiency 87%Max. @230VAC (Full load)
Wiring Method Push terminal, wire cross section:0.75-1.5mm2
Circuit Breaker type B10 B13 B16 B20 B25
Number 30 45 50 65 80
Diameter 1.5mm2 1.5mm2 2.5mm2 2.5mm2 2.5mm2
type C10 C13 C16 C20 C25
Number 20 25 30 40 50
Diameter 1.5mm2 1.5mm2 1.5mm2 1.5mm2 2.5mm2
Output Operating Mode Constant Current
Load Type LED
Ripple Requirement (Flickering or flickering-Free) Flicker value: less than 2% for whole dimming range
Start Up Time <1s (@230Vac)
No-load Output Voltage 68VDC Max.
Load output voltage range 9-53VDC
Full load output power 46W Max.
Load output current 700m(9-53V) 750m(9-53V) 800mA(9-53V) 850mA(9-53V) 900mA(9-50V) 950mA(9-48V) 1.0A(9-46V) 1.05A(9-44V)
Output current/voltage tolerance ±5%
Wiring method Push terminal, wire cross section:0.75-1.5mm2
Control Method Primary PUSH Dimming Primary PUSH dimming (Max.lead length:20M)
1-10V Dimming NO
Dimming Range Primary PUSH & DALI dimming: 0%-100%
Potentiometer NO
DALI Dimming DALI dimming (Max.lead length:300M)
Exception Protection Requirements Output over temperature
protection		 Yes, without self recovery function(Can be inquired)
Output short circuit protection Yes, without self recovery function(Can be inquired)

Operating

Environment

 Operating temperature/ humidity -25℃~50℃ Humidity:85% (Non-condensing)
Storage temperature/ humidity -40℃~80℃, Humidity:10%–95%
Max. case temp(Tc) 85℃

Safety

& EMC

 EMC standard EN55015 EN61547 EN61000-3-2 EN61000-3-3
DALI protocol standard IEC62386-102 IEC62386-207 DT6
Safety standard EN61347-1 EN61347-2-13
Certification ENEC SEMKO CB CE
Withstand voltage 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”)
Others Degrees of protection IP20
Type of protection Class II
Installation type Independent installation
Installation dimension 123*79*24mm
Blackout memory function Yes, PUSH blackout memory
PUSH dimming synchronization 20 units Max.
Packaging requirement white box+ Instructions Clapboard Outer Carton(K=A)
Weight 155g
Life 50000h @Ta full load
Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified.

  • Dimension (Unit:mm)

46W Dali Dimmable Driver Adjustable 700mA to 1050mA Operating Voltage 198-264VAC 046W Dali Dimmable Driver Adjustable 700mA to 1050mA Operating Voltage 198-264VAC 1



  • Wiring Diagram

 46W Dali Dimmable Driver Adjustable 700mA to 1050mA Operating Voltage 198-264VAC 246W Dali Dimmable Driver Adjustable 700mA to 1050mA Operating Voltage 198-264VAC 3

Fig. A DALI Dimming Fig.B Push Dimming

  • Derating

46W Dali Dimmable Driver Adjustable 700mA to 1050mA Operating Voltage 198-264VAC 4

  • Dimming curve

 46W Dali Dimmable Driver Adjustable 700mA to 1050mA Operating Voltage 198-264VAC 546W Dali Dimmable Driver Adjustable 700mA to 1050mA Operating Voltage 198-264VAC 6

  • Current gear setting:
Current / voltage gear setting 1 2 3
1050mA ON ON ON
1000mA - ON ON
950mA ON - ON
900mA - - ON
850mA ON ON -
800mA - ON -
750mA ON - -
700mA - - -



  • ON/OFF & Description of Dimming Operation

A. Short press the PUSH switch (short press time 0.1S-1S), the LED driver will turn on or off.

B. Dimming: Long Press PUSH switch (1S-8S) to dim and the dimming range is 2-100%.

C. Memory: PUSH dimming has dimming memory function.

D. Dimming synchronization: Long Press Push switch at least 15S to go into the pushing dimming synchronization.

E. DALI dimming mode: Connect the power supply to the DALI system and the dimming range is 0-100%.



  • Attentions

1) The driver must be connected to the fixtures before turning on the input power, otherwise the fixtures may be damaged.
