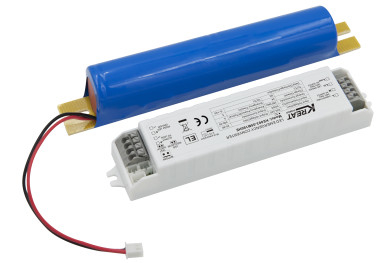

3W 3HOURS LED Emergency Pack With External LifePO4 Battery For 3 Years Warranty

  • 3W 3HOURS LED Emergency Pack With External LifePO4 Battery For 3 Years Warranty
Place of Origin China
Brand Name Kreatpower
Certification CE
Model Number KE014-03M180HE
Minimum Order Quantity 100
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or Western Union
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Input Voltage 220-240Vac 50Hz /60Hz Emergency Power 2-5W(Can Be Customized)
Emergency Time 180min (Can Be Customized) Warranty 3 Years
Load Output Voltage 20-60Vdc Working Temprature 0℃~50℃
IP Rating IP20
High Light

3HOURS LED emergency pack

,

3W LED emergency pack

,

LifePO4 LED emergency pack
Leave a Message
Product Description

3W 3HOURS LED emergency pack with external LifePO4 battery for 3 years warranty





1. Description

1) Constant power output LED emergency power supply with a wide output voltage range;
2) Input; output relay switching.
3) With multiple protection functions: battery overcharge, over-discharge protection, and output short circuit protection







2. Parameters

Charge Part KE014 02M/02A180 03M/03A180 04M/04A180 05M/05A180
Rated input voltage 220-240Vac 50Hz /60Hz
Rated input current 0.06A Max. @230Vac
Input inrush current 30A(twidth=100uS 50% Ipek@230Vac(Cold start at full load )
Power factor ≥0.5@230Vac
Input power <4W
Battery charging current (Max) 350mA
Battery charging time 24 hours Max
Emergency Part Operating mode Emergency mode
Load type LED
Emergency power 2W 3W 4W 5W
Emergency time 3hours
Load output current 100-30mA 130-45mA 200-65mA 230-80mA
Load output voltage 20-60VDC
Battery LifePO4 (The battery capacity meets the emergency time at 25℃) 6.4V 1.6Ah 6.4V 3.6Ah
Battery warranty Warranty 3 years, Design Life 5 years.
Exception Driver Requirements Surge current N/A
Input current N/A
Output current 2 A Max.
Emergency Function Test Charging Greenlight
Fault Green light off
Manual test Yes
Auto Testing Autotest KE014- 02A180HE/03A180HE/04A180HE/05A180HE
Fault/test / Status Reason Charge Indicator Status
Battery fully charged and operational Standard daily use solid green

Battery Charging Initial Charge/Battery Top Up solid green

Auto Test 3 Hours (every 12 months) Periodic self-test Flashing Green 3 sec on 1 sec off

Auto Test 5 Min (every 30 days) Periodic self-test Flashing Green 3 sec on 3 sec off

Duration test fault Failed the 3-hour annual test Flashing Red 0.5 sec on 0.5 sec off

LED fault Not plugged in or damaged/faulty Flashing Red 2 sec on – 2 sec off

Battery Disconnected/Faulty Not plugged in or damaged/faulty

solid red

Emergency protection Battery over-charge/deep discharge protection Yes
Output over-voltage protection Yes
Output overload protection Yes
Output short circuit protection Yes

Operating

Environment

 Operating temperature/humidity 0℃…+50℃ Humidity:20%-75%(without condensation)
Storage temperature/humidity -5℃-35℃
Case Max. Temp(Tc) 75℃

Safety

& EMC

 Withstand voltage 3000Vac 5mA 60S (Input “L N” – output “SEC+ SEC-)
Safety standard EN61347-1, EN61347-2-7
EMC standard EN55015, EN61000-3-2, EN61000-3-3
Battery standard UN38.3
Environmental protection requirements Compliant to RoHS
Certification CE
Others Input/output(terminal/wiring) specification Press terminal, wire diameter:0.5-0.75mm2
IP rating IP20
Type of protection Class 2
Installation type Built-in installation
Installation dimension 146*30*22.5mm
Others Packaging requirement White box+Instruction manual+clapboard+outer carton(K=A)
Weight : Emergency Power Supply 75g
Lifespan 5 Year @Ta ( Battery not included )

Notes:

All parameters are tested on the input voltage 230Vac, environment temperature 25℃ unless otherwise specified.




3. Dimension (Unit:mm)

3W 3HOURS LED Emergency Pack With External LifePO4 Battery For 3 Years Warranty 0

3W 3HOURS LED Emergency Pack With External LifePO4 Battery For 3 Years Warranty 1

4. Wiring Diagram

3W 3HOURS LED Emergency Pack With External LifePO4 Battery For 3 Years Warranty 2

5. Function

3W 3HOURS LED Emergency Pack With External LifePO4 Battery For 3 Years Warranty 3



6 .Manual Test & Operation Instructions

1). Connect the wire according to the wiring diagram.
2). L, N power on, Switch on S1. then the load lamp turns on, The emergency driver indicator light turns green, emergency power supply normally charging. Turn off Switch S1, and the load lamp turns off.
3). Emergency Simulation: Switch on, the load lamp turns on, press the switch(TEST SWITCH), then switch to emergency mode, and the indicator light of the emergency driver will be extinguished. Release the switch(TEST SWITCH), then the lamp is powered by the led driver, the indicator light will turn on.



7. Battery Application Notice

1)The battery should be recharged and discharged semiannually in normal use conditions.
2)Do not connect to the circuit when the battery is not used to prevent over-discharge of the battery due to self-consumption of the circuit board.
3)Please keep the battery from the heat source when installing and using, and only be allowed to use it in a certain working temperature range.
4)The battery should be stored in a cool and dry environment.
5)After a long time of storage, the battery is cycled every 12 months as required.
