24GHz Large Detection Area Millimeter Wave Radar Presence Sensor With Detecting Angle Adjustable For Bedroom

  • 24GHz Large Detection Area Millimeter Wave Radar Presence Sensor With Detecting Angle Adjustable For Bedroom
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MSA219D 99 A
Minimum Order Quantity 100PCS
Price Negotiation
Packaging Details White box+Clapboard+ Carton(K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Voltage 12/24Vdc Communication Mode NO/NC Dry Contact (Factory Setting Is NO Dry Contact)
MW Sensor Frequency 24GHz-24.25GHz ISM Band Application Hotel Room/ Bedroom
Detection Sensitivity 25%-100% Hold Time 5s/30s/1min/ 3min/5min/10min/20min/30min
Daylight Detection Range 5Lux/15Lux/30Lux/50Lux/100Lux /150Lux/Disable Mounting Height 2.5-4.0m (typical)
Installation Recessed. Cut Hole Φ70mm Detection Range ≥2.5m (Radius)
High Light

large detection area Millimeter Wave Radar

,

bedroom Millimeter Wave Radar Presence Sensor

,

24GHz Millimeter Wave Radar Presence Sensor
Leave a Message
Product Description

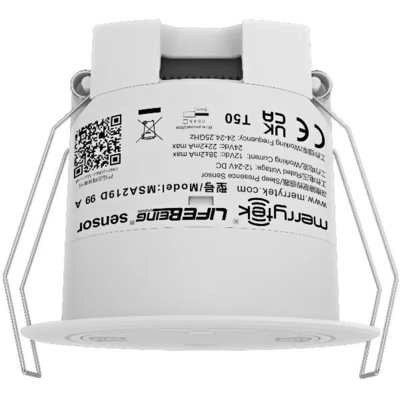

24GHz large detection area millimeter wave radar presence sensor with detecting angle adjustable for bedroom



1. Feature

1) Exclusive Merrytek Lifebeing Presence Detection
2) Accurate Presence/Absence Output
3) NO/NC dry contact output available
4) Detection antenna flippable from -30°to 30°
5) Presence, minor motion and motion detection range highly coincide
6) Sensor parameter adjustable by MH10 remote
7) Low RF power output. No harm to human health



2. Parameters

Input/Output Input voltage 12-24V DC
Rated voltage 24V DC
Working Current

@12Vdc:50mA max

@24Vdc:30mA max
Working Power ≤1W @24V DC
Output signal NO/NC dry contact (Factory setting is NO dry contact)
Load type Resistive (load voltage :Vdc≤36V,load current:100mA max)
Sensor Parameter Radar frequency 24GHz-24.25GHz ISM band
Transmitting Power 5mW Max.
Detection Area MH10 remote setting: 25%-100%
Hold Time MH10 remote setting:5s/30s/1min/ 3min/5min/10min/20min/30min
Daylight sensor threshold MH10 remote setting: 5Lux/15Lux/30Lux/50Lux/100Lux /150Lux/Disable
Radius detection range(based on QS1 mode 100% sensitivity)

Motion detection(3m height):3-4m

Minor motion detection(3m height):2.5-3.5m

Presence(3m height):2.5-3.5m
Remote control Available
Mounting height 2.5-4.0m
3dB beam angle 100°(horizontal)
100°(vertical)
Application Environment Drill hole Φ70mm
Working Temperature 0℃...+50℃
Storage Temperature -25℃~+80℃
Certificate Standard Certificate FCC/RED
Environmental Requirement Compliant to RoHS
IP Rating IP20
Note: "N/A" means not available.

3. Dimension ( mm)



24GHz Large Detection Area Millimeter Wave Radar Presence Sensor With Detecting Angle Adjustable For Bedroom 0



4. Wiring



24GHz Large Detection Area Millimeter Wave Radar Presence Sensor With Detecting Angle Adjustable For Bedroom 1

5. Detection area

24GHz Large Detection Area Millimeter Wave Radar Presence Sensor With Detecting Angle Adjustable For Bedroom 2

6. Angle adjustable example



24GHz Large Detection Area Millimeter Wave Radar Presence Sensor With Detecting Angle Adjustable For Bedroom 324GHz Large Detection Area Millimeter Wave Radar Presence Sensor With Detecting Angle Adjustable For Bedroom 4



7. Detection signal



The product detects human movement, minor movement, and presence signals, and realizes the detection of human-existing/no-human in the sleep state. The following is a description of the moving, minor moving, and presence signals:

l Moving signal: detect the human significant moving (walking) in the detection area.

l Minor moving signal: detect the human slight moving in the detection area, such as leaning forward, leaning forward and back, swinging limbs, shaking head, typing, playing with mobile phones, and so on.

l Presence signal: detect human abdominal and thoracic expansion behaviors caused by breathing, but not detect moving signal and minor moving signal.
