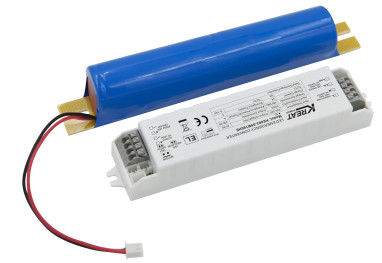

6.4V 1800mAh Constant Power 3W Auto-test Emergency Packs With Battery Lifepo4 And 3 Years Warranty

Place of Origin China
Brand Name Kreatpower
Certification CE
Model Number KE007-03A180HE2
Minimum Order Quantity 100
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or Western Union
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Rated Input Voltage 220-240Vac 50Hz /60Hz Emergency Power 3W(Can Be Customized)
Emergency Time 180min (Can Be Customized) Warranty 3 Years
Load Output Voltage 80-200Vdc Working Temprature 0℃~50℃
IP Rating IP20 Battery Type LifePO4
High Light

1800mAh auto-test emergency packs


constant Power auto-test emergency packs


6.4V auto-test emergency packs

Leave a Message
Product Description

6.4V 1800mAh constant Power 3W auto-test emergency packs with battery lifepo4 and 3 years warranty



1. Description


1) Constant power output LED emergency power supply with a wide output voltage range;
2) Input; output relay switching.
3) High safety, high performance, long life LifePO4 battery.
4) With multiple protection functions: battery overcharge, over-discharge protection, and output short circuit protection.



2. Parameters


Charge Part KE007 02M180HE 03M180HE 04M180HE 05M180HE
02A180HE 03A180HE 04A180HE 05A180HE
Rated input voltage 220-240Vac 50Hz /60Hz
Rated input current 0.06A Max. @230Vac
Input inrush current 30A(twidth=100uS 50% Ipeak )@230Vac(Cold start at full load )
Power factor ≥0.5@230Vac
Input power <4W
Battery charging current 200mA 200mA 350mA 350mA
Battery charging time 24 hours Max
Emergency Part Operating mode Emergency mode
Load type LED
Emergency power 2W 2.5W 4W 5W
Emergency time 3hours
Load output current 25-10mA 30-12mA 45-20mA 57-23mA
Load output voltage 80-200VDC
Battery LifePO4 (The battery capacity meets the emergency time at 25℃) 6.4V 1.6Ah 6.4V 1.6Ah 6.4V 3.6Ah 6.4V 3.6Ah
Battery warranty Warranty 3 years, Design Life 5 years.
Exception Driver Requirements Surge current 8A
Input current 3 A Max.
Output current N/A
LED Indication
(Manual test)
Charging Greenlight
Fault Green light off
Emergency Function Test Manual test Yes
Autotest 02A180HE/03A180HE/04A180HE/05A180HE
Auto Testing Fault/test / Status Reason Charge Indicator Status
Battery fully charged and operational Standard daily use solid green
solid green
Battery Charging Initial Charge/Battery Top Up solid green
solid green
Auto Test 3 Hours (every 12 months) Periodic self-test Flashing Green 3 sec on 1 sec off
Flashing Green 3 sec on 1 sec off
Auto Test 5 Min (every 30 days) Periodic self-test Flashing Green 3 sec on 3 sec off
Flashing Green 3 sec on 3 sec off
Duration test fault Failed the 3-hour annual test Flashing Red 0.5 sec on 0.5 sec off
Flashing Red 0.5 sec on 0.5 sec off
LED fault Not plugged in or damaged/faulty Flashing Red 2 sec on – 2 sec off
Flashing Red 2 sec on – 2 sec off
Battery Disconnected/Faulty Not plugged in or damaged/faulty solid red
solid red
Emergency protection Battery over-charge/deep discharge protection Yes
Output over-voltage protection Yes
Output overload protection Yes
Output short circuit protection Yes



Operating temperature/humidity 0℃…+50℃; Humidity:20%-75%(without condensation)
Storage temperature/humidity -5℃-35℃
Case Max. Temp(Tc) 75℃




Withstand voltage NO ISO
Safety standard EN61347-1, EN61347-2-7
EMC standard EN55015, EN61000-3-2, EN61000-3-3
Battery standard UN38.3
Environmental protection requirements Compliant to RoHS
Certification CE
Others Input/output(terminal/wiring) specification Press terminal, wire diameter:0.5-0.75mm2
IP rating IP20
Type of protection Class 2
Installation type Built-in installation
Installation dimension 146*30*22.5mm
Packaging requirement White box+Instruction manual+clapboard+outer carton(K=A)
Others Weight 85g(driver)
Lifespan 5 Year @Ta ( Battery not included )


All parameters are tested on the input voltage 230Vac, environment temperature 25℃ unless otherwise specified.


3. Dimension (Unit:mm)


6.4V 1800mAh Constant Power 3W Auto-test Emergency Packs With Battery Lifepo4 And 3 Years Warranty 0


4. Wiring Diagram


6.4V 1800mAh Constant Power 3W Auto-test Emergency Packs With Battery Lifepo4 And 3 Years Warranty 1

5. Function


6.4V 1800mAh Constant Power 3W Auto-test Emergency Packs With Battery Lifepo4 And 3 Years Warranty 2


6 . Manual Test & Operation Instructions


1). Connect the wire according to the wiring diagram.
2). L, N power on, Switch on S1. then the load lamp turns on, The emergency driver indicator light turns green, emergency power supply normally charging. Turn off Switch S1, and the load lamp turns off.
3). Emergency Simulation: Switch on, the load lamp turns on, press the switch(TEST SWITCH), then switch to emergency mode, and the indicator light of the emergency driver will be extinguished. Release the switch(TEST SWITCH), then the lamp is powered by the led driver, the indicator light will turn on.


7. Battery Application Notice


1)The battery should be recharged and discharged semiannually in normal use conditions.
2)Do not connect to the circuit when the battery is not used to prevent over-discharge of the battery due to self-consumption of the circuit board.
3)Please keep the battery from the heat source when installing and using it, and only be allowed to use it in a certain working temperature range.
4)The battery should be stored in a cool and dry environment.
5)After a long time of storage, the battery is cycled every 12 months as required.
