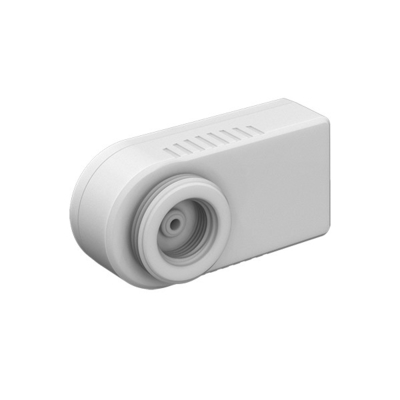

120V / 277Vac Input LED Controller With 12V Auxiliary Power Port And 1-10V Dimming

  • 120V / 277Vac Input LED Controller With 12V Auxiliary Power Port And 1-10V Dimming
Place of Origin Shenzhen, China
Brand Name Merrytek
Certification CE
Model Number MC642V B
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Bubble bag + cardboard + outer carton（K=A）
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit
Payment Terms T/T
Supply Ability 10000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 120/277V AC 50/60Hz Stand-by Power ≤0.5W
DC Output 12VDC 100mA(Max) Operating Temperature -25~60℃
IP Rating IP65 Net Weight 90±3g
Lifetime 5 Years Warranty@Ta 230Vac Full Load Installation Built-in Installation
Highlight

120V / 277Vac Input LED Controller

,

1-10V Dimming LED controller

,

1-10V Dimmable Motion Sensor
Leave a Message
Product Description

120/ 277Vac input LED controller with 12V Auxiliary power port and 1-10V dimming



【Product Feature】

  • Adopting isolated circuit design to provide 12V DC power supply for the DC controller, with a maximum current of 100mA.
  • A variety of auxiliary power supply interfaces are available, and the input/output connection terminals easier for user wiring.
  • With the sensor of Merrytek, can realize ON/OFF function, two-step/three-step dimming function, and daylight priority function.
  • Auxiliary power supply drive internal/external installation, can match a variety of lamps



【Parameters】



Input
Rated Voltage 120/277V AC 50/60Hz
Stand-by Power ≤0.5W
Surge Test 1KV(L/N,EN61000-4-5)
Output
DC Output 12VDC 100mA(Max)
Port
Dimming Port 3.5mm DC port / Tpye-C port
Environment
Operating Temperature -25~60℃
Storage Temperature -40℃…80℃, humidity≤85%(Non-condensing)
Certificate Standards
Certification CE
Environmental Requirement Compliant to RoHS 2.0, Reach
Safety (LVD) standard EN61058-1-2, EN61058-1
EMC Standards EN61058-1,EN61000-3-2,EN61000-3-3,EN62479, EN301489-1, EN55015, EN300440
IP Rating IP65(match waterproof lamp)
Product classification Class II
Others
Wiring

Lead wire

Input: 18AWG(N: White L: Black)

Output: 24AWG(+: Purple -: Pink)

Lead wire with 300mm long
Installation Built-in installation
Package Bubble bag + cardboard + outer carton(K=A)
Net Weight 90±3g
Lifetime 5 years warranty@Ta 230Vac full load



【Application Notice】

  • Sensor should be installed by a professional electrician. Please turn off power before installation.
