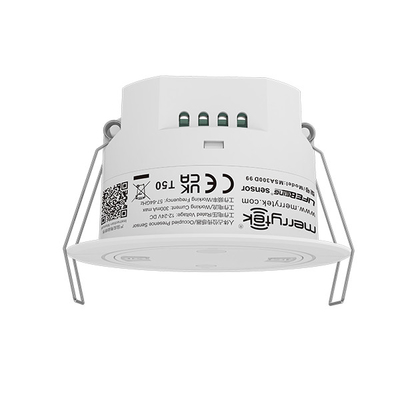

Workplace And Toilet Cubicle 60GHz Presence Detection Sensor With 12Vdc Dry Contact Communication

Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MSA300D 99
Minimum Order Quantity 100PCS
Price Negotiation
Packaging Details White box+Clapboard+ Carton(K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Voltage 12/24Vdc Communication Mode NO/NC Dry Contact (Factory Setting Is NO Dry Contact)
Working Power ≤1W @24Vdc Application Workplace And Toilet Cubicle
Detection Sensitivity 25%-100% Hold Time 5s/30s/1min/ 3min/5min/10min/20min/30min
Daylight Detection Range 5Lux/15Lux/30Lux/50Lux/100Lux /150Lux/Disable Mounting Height 2.5-3.5m (typical 3m)
Installation Recessed. Cut Hole Φ70mm Detection Range 0.5~1.5m
High Light

toilet cubicle 60GHz Presence detection sensor

,

workplace 60GHz Presence detection sensor

,

12Vdc 60GHz Presence detection sensor

Leave a Message
Product Description

workplace and toilet cubicle 60GHz Presence detection sensor with 12Vdc dry contact communication



1. Feature

MSA300D 99 is a 60GHz radar sensor based on Merrytek patented multi-array antenna. Its antenna is flipable from -30° to 30° to focus sensing on your target area.Meanwhile,thanks to its high gain,concentrated detection range and Merrytek’s unique software algorithm.It can accurately detect human presence informtion within a small range with clear boundary like workplace and toilet cubicle.Thus it can provide fast and accurate huamn presence/absence information for smart office work station,small meeting cubicle and smart toilet solution.



2. Parameters

Input/Output Input voltage 12-24V DC
Rated voltage 12V/24V DC
Working Current 300mA max
Working Power ≤1W @24V DC
Output signal NO/NC dry contact (Factory setting is NO dry contact)
Sensor Parameter Radar frequency 60GHz-64GHz
Transmitting Power 5mW Max
Detection Area MH10 remote setting: 25%-100%
Hold Time MH10 remote setting: 5s-30min
Daylight sensor threshold 5-150lux
Radius detection range(based on QS1 mode 100% sensitivity) Motion/presence(3m height):0.5-1.5m
Remote control Available
Mounting height 2-3.5m
3dB beam angle 30°(horizontal)
30°(vertical)
Application Environment Cutout-size Φ70mm
Working Temperature 0℃...+50℃
Storage Temperature -25℃~+80℃
Certificate Standard Comply with FCC/RED
Environmental Compliant to RoHS
IP Rating IP20
Note: "N/A" means not available.



3. Dimension ( mm)





Workplace And Toilet Cubicle 60GHz Presence Detection Sensor With 12Vdc Dry Contact Communication 0



4. Wiring



Workplace And Toilet Cubicle 60GHz Presence Detection Sensor With 12Vdc Dry Contact Communication 1

5. Detection area

Workplace And Toilet Cubicle 60GHz Presence Detection Sensor With 12Vdc Dry Contact Communication 2

6. Factory default setting

Detection Area :100%  Hold Time :30S  Indicator light :open





7. Detection signal

The product detects human moving, minor moving, and presence signals, and realizes the detection of human-existing/no-human in non-sleep state. The following is a description of the moving, minor moving and presence signals:

*Moving signal: detect the human significant moving (walking) in the detection area.

*Minor moving signal: detect the human slight moving in the detection area, such as leaning forward, leaning forwarder and back, swinging limbs, shaking head, typing, playing with mobile phones and so on.

*Presence signal: detect human abdominal and thoracic expansion behaviors caused by breathing, but not detect moving signal and minor moving signal.
